Home >> Pontiac >> 1992 >> Trans Sport V6-191 3.1L >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> Electronic Spark Control (ESC) Module

Electronic Spark Control (ESC) Module

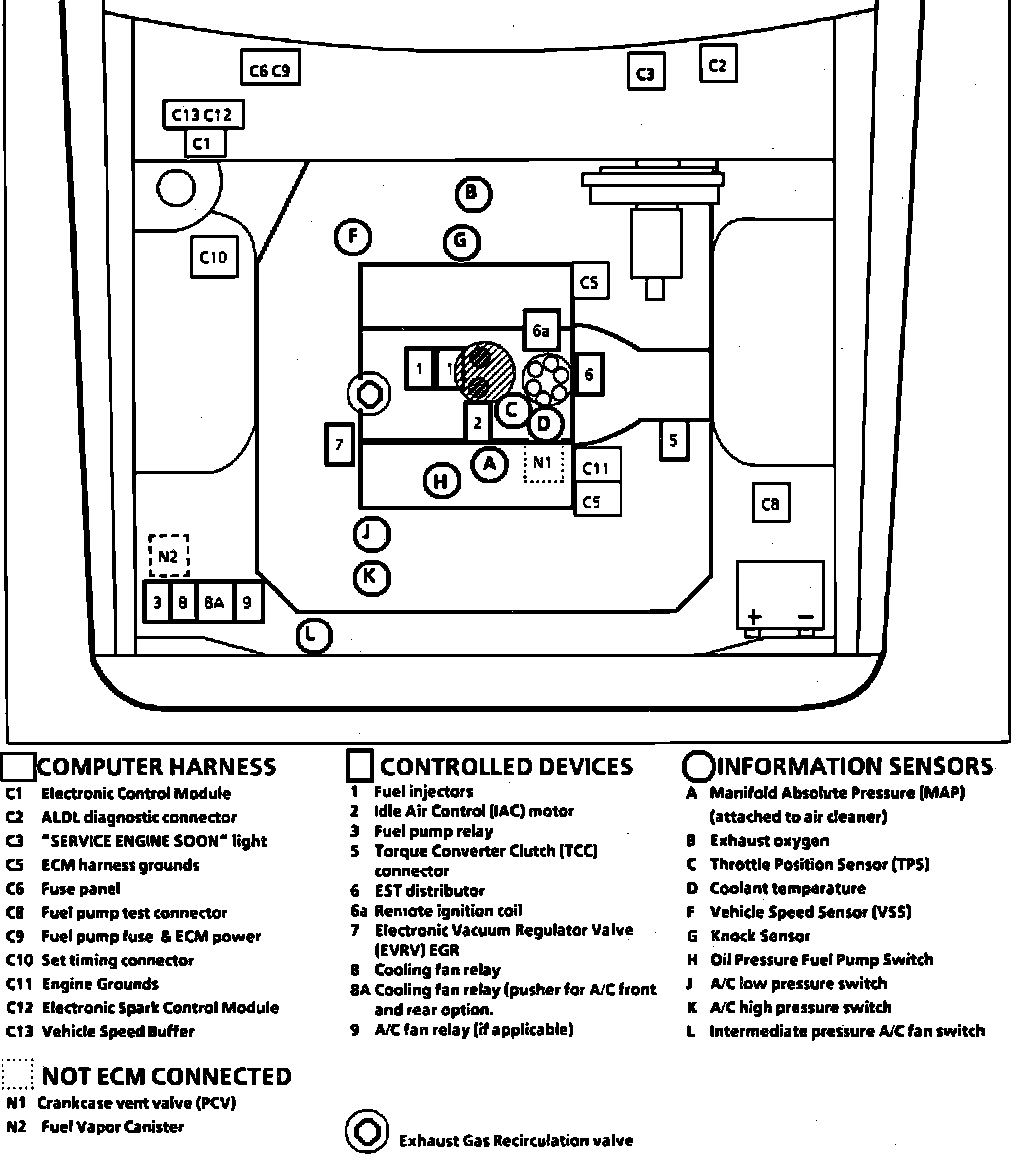

Engine Compartment Components.:




Behind I/P Compartment:





Behind I/P Compartment, Above Convenience Center
