Electronic Brake Control Module

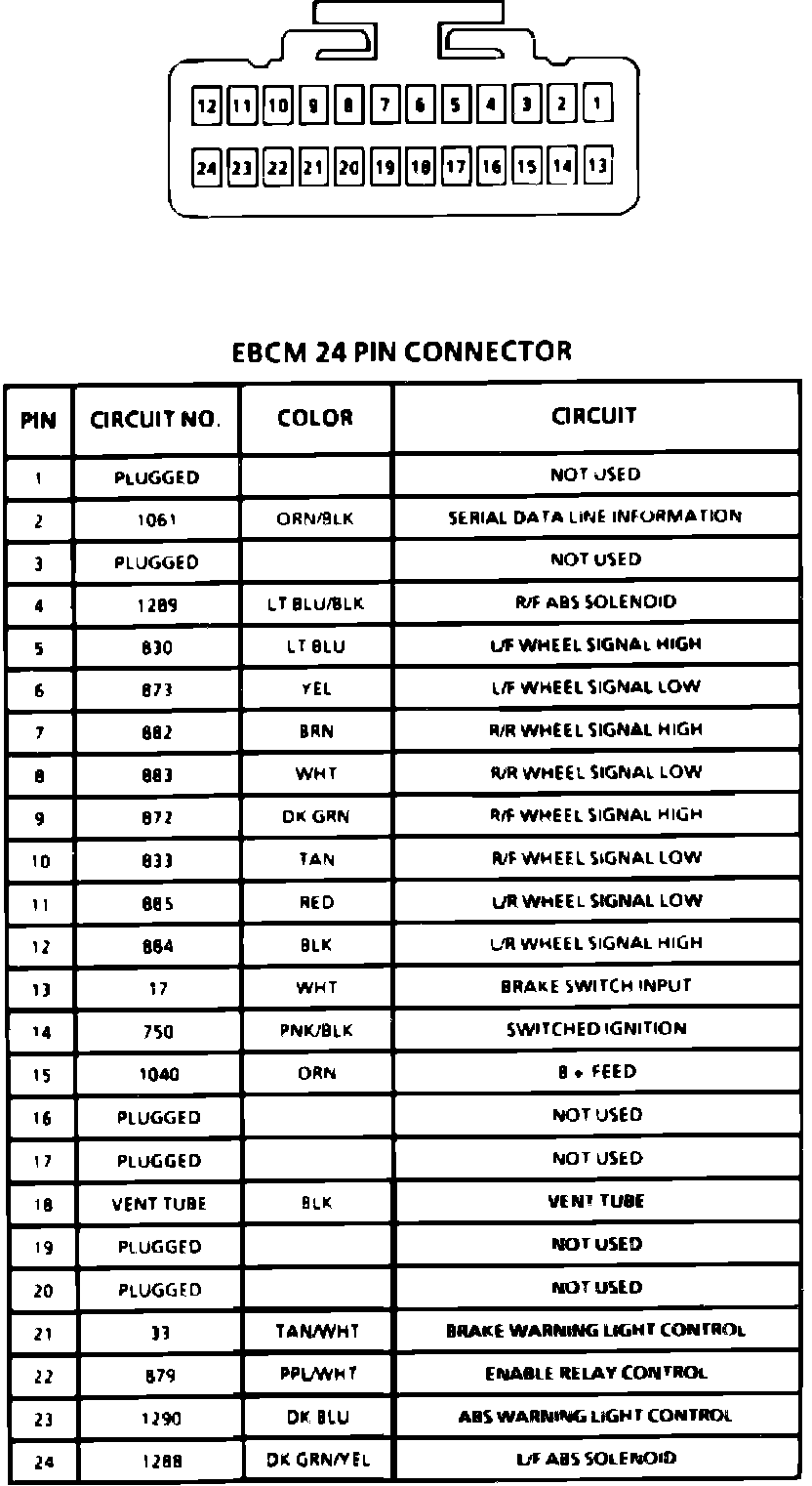

Fig. 5 EBCM Wiring Connectors (Part 1 Of 2):



Fig. 5 EBCM Wiring Connectors (Part 2 Of 2):
