System Specifications

Torque Specifications:





Torque Specifications (continued):

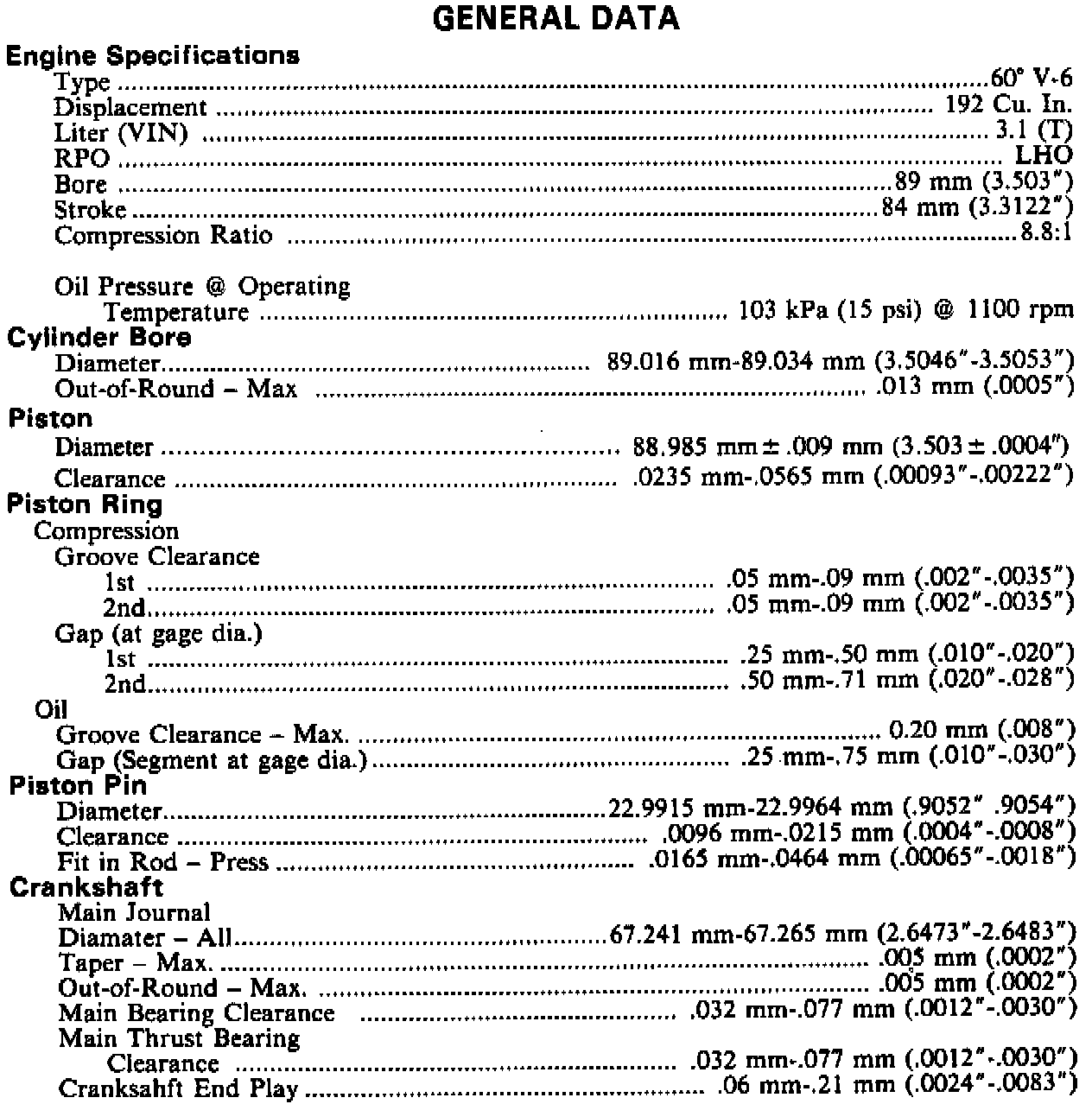

Engine Specifications:

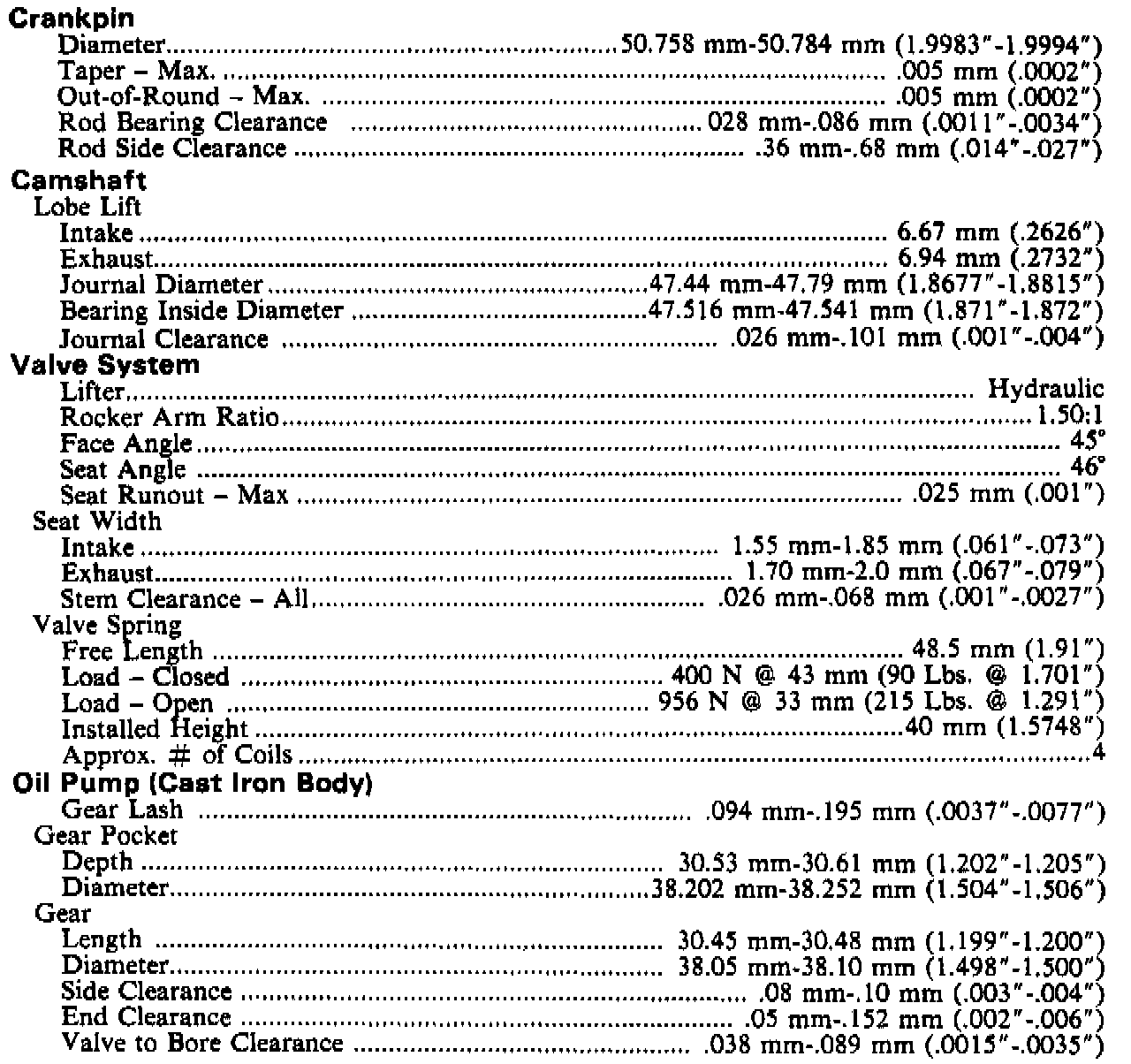

Engine Specifications (continued):





Intake Manifold Sequence:

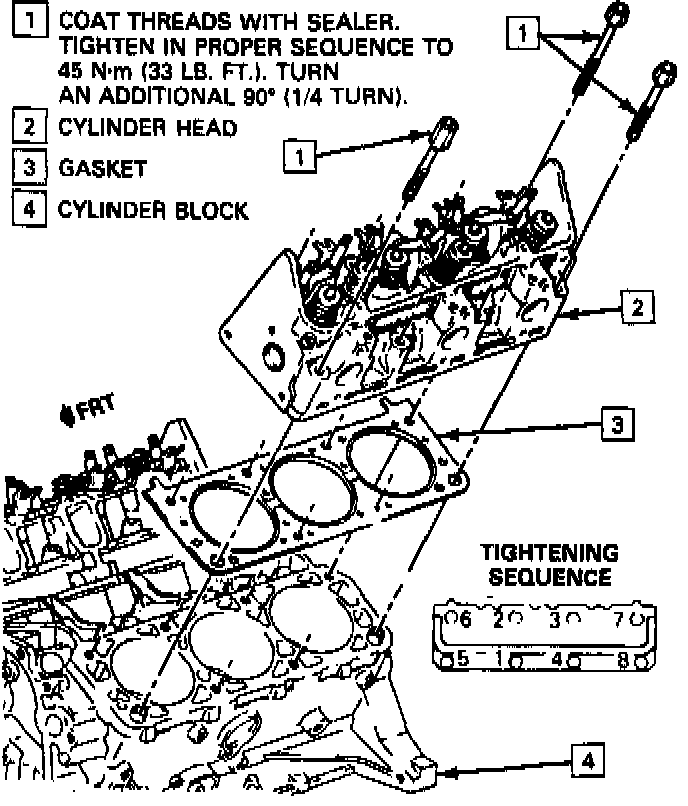

Cylinder Head Sequence:
