Home >> Pontiac >> 1992 >> J2000/Sunbird V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Direct Ignition System

Direct Ignition System

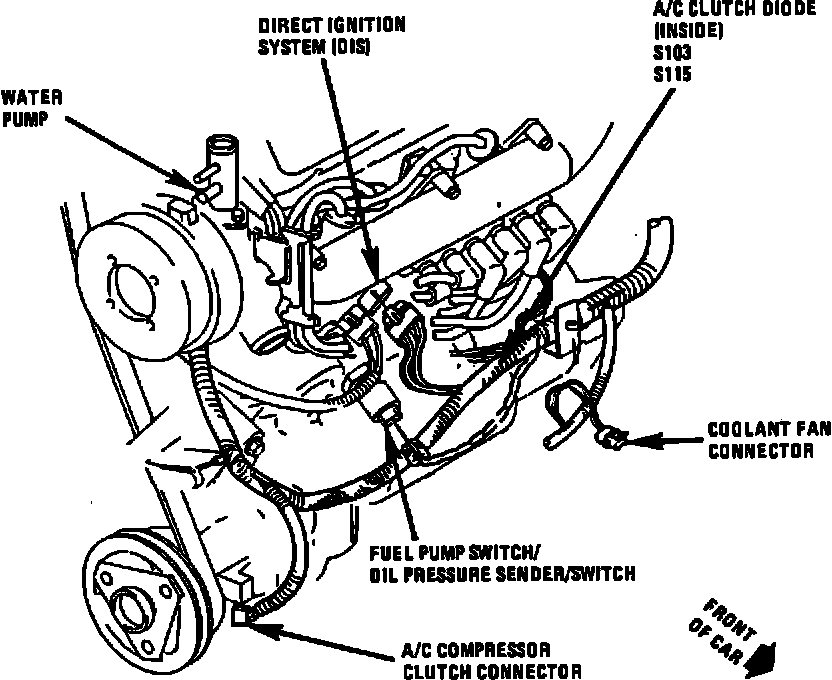

Front Of 3.1L:

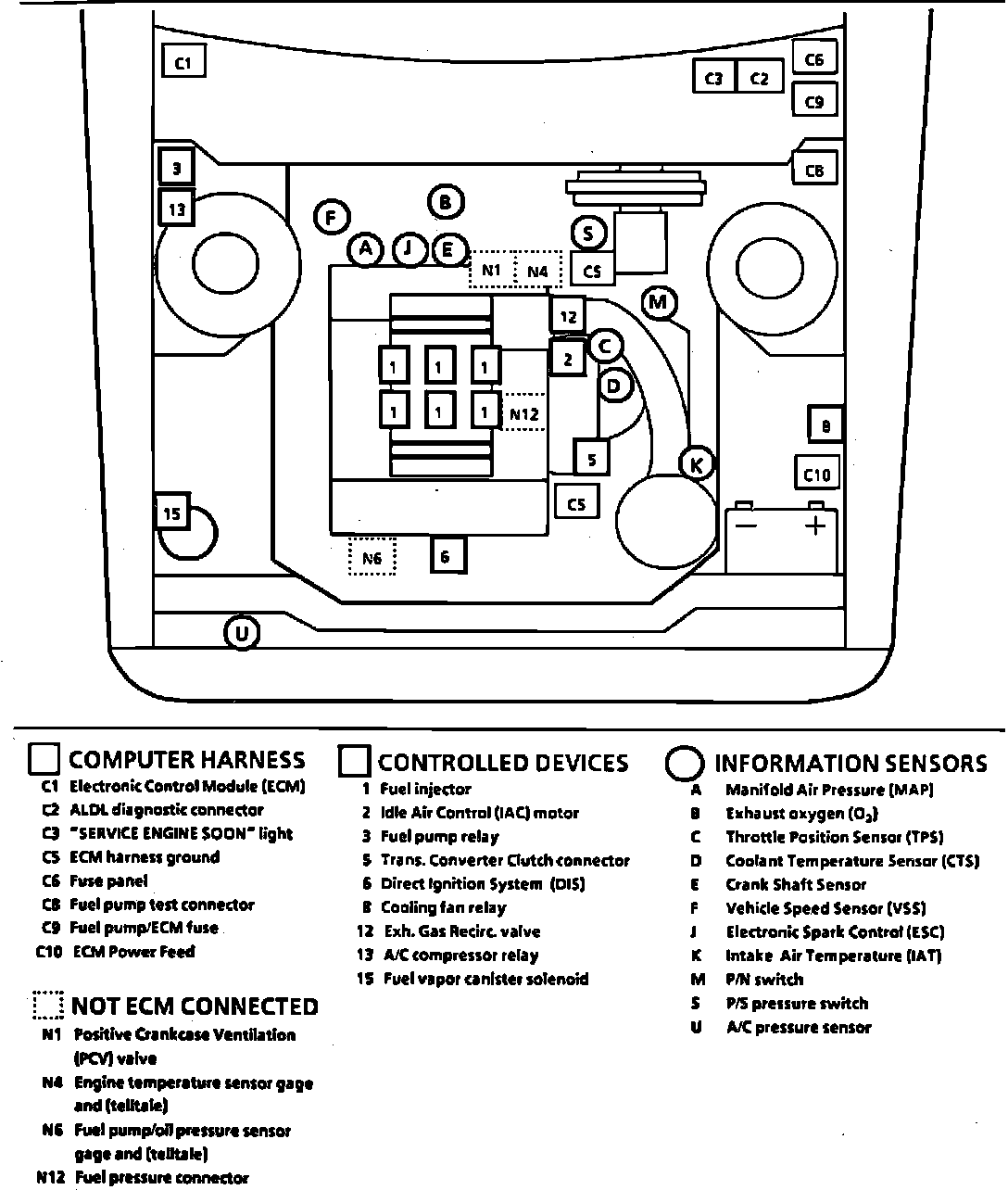

Engine Component Locations.:






Front Of Engine, Below Exhaust Manifold
