Coolant Temperature Sensor/Switch (For Computer): Locations

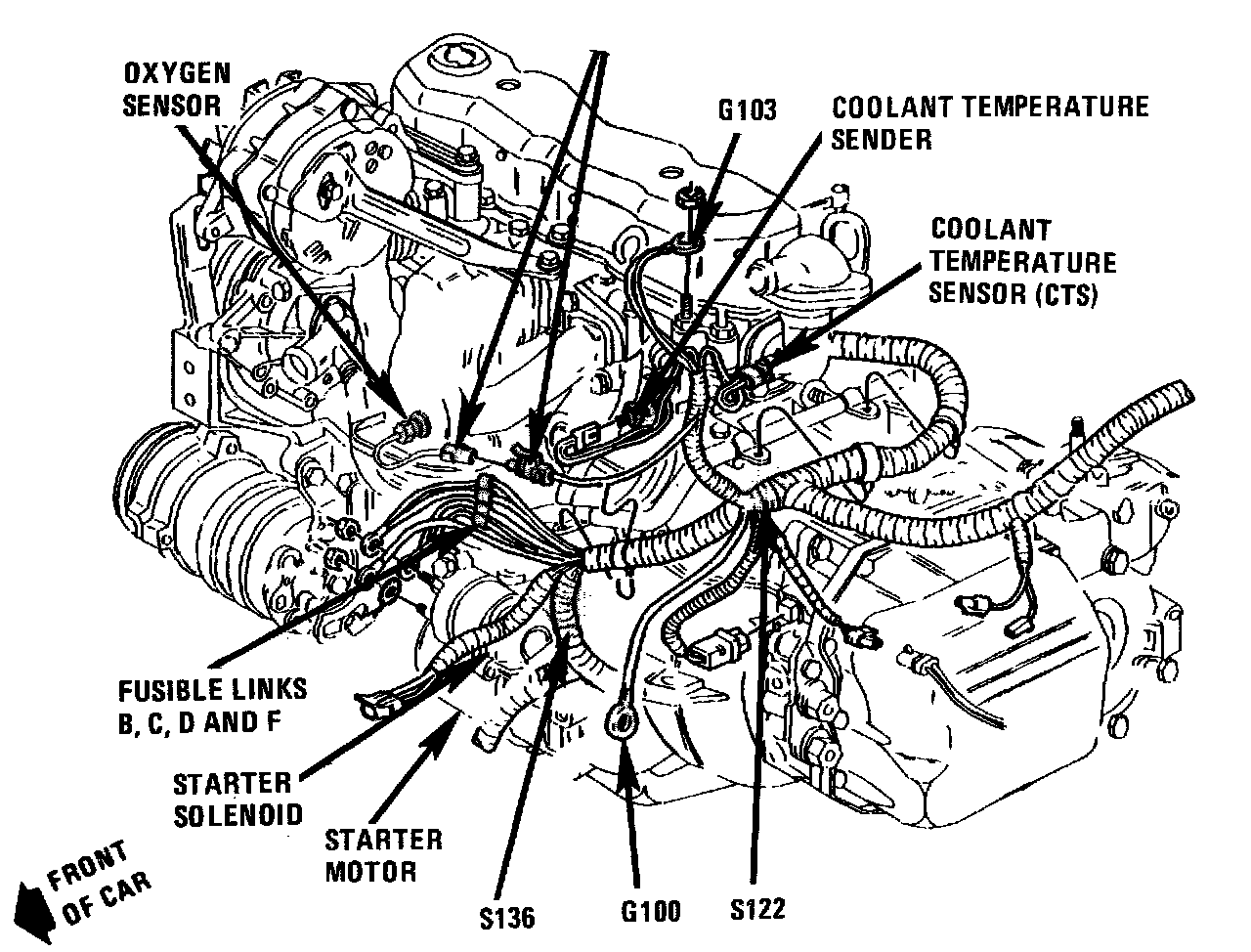

Front Of Engine:





Located top LH front of engine, below coolant outlet.
