Home >> Pontiac >> 1990 >> Firebird V6-191 3.1L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Panel

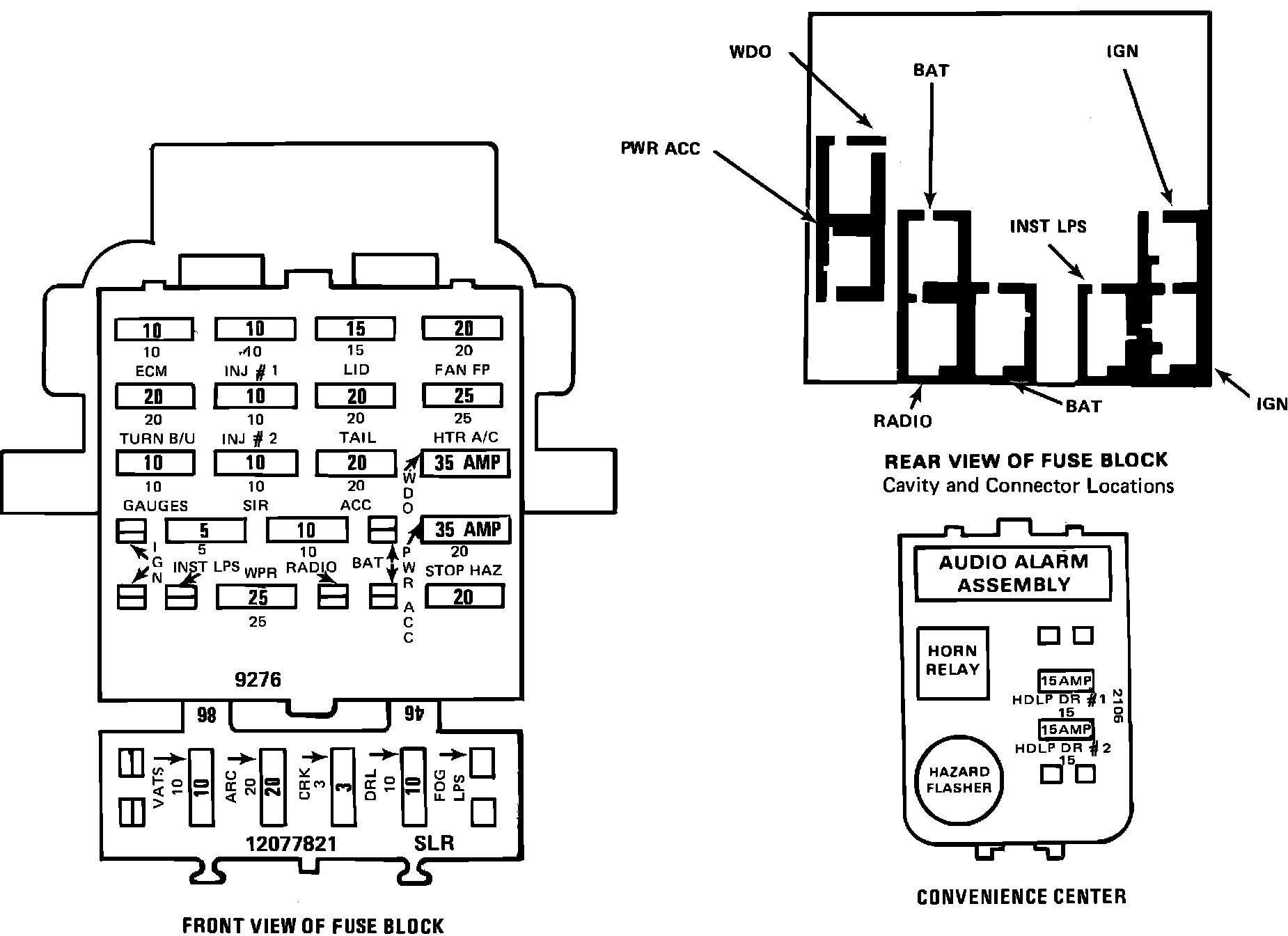

Fuse Panel

Fuse Panel Details:
