System Specifications

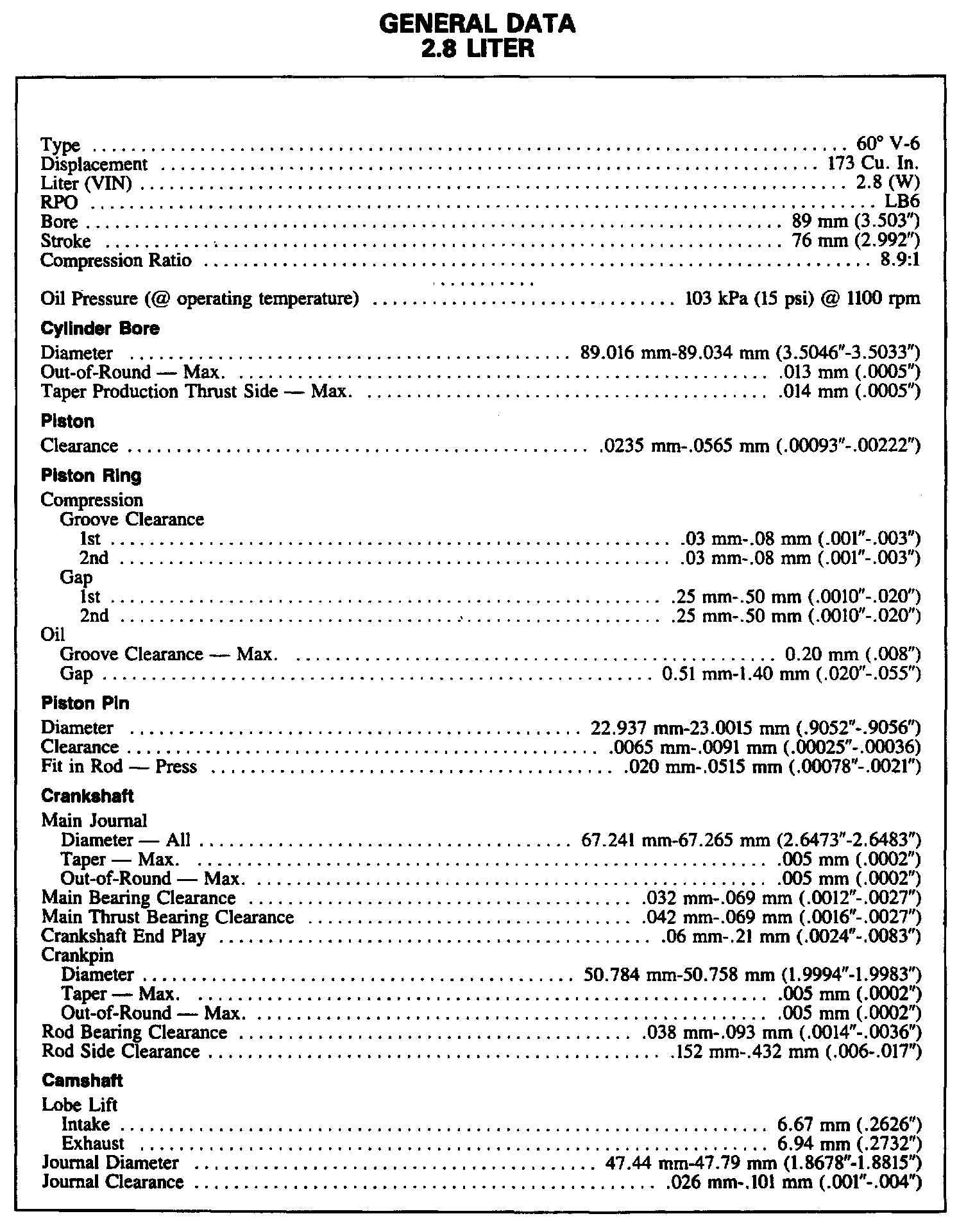

Engine Specifications (2.8L):

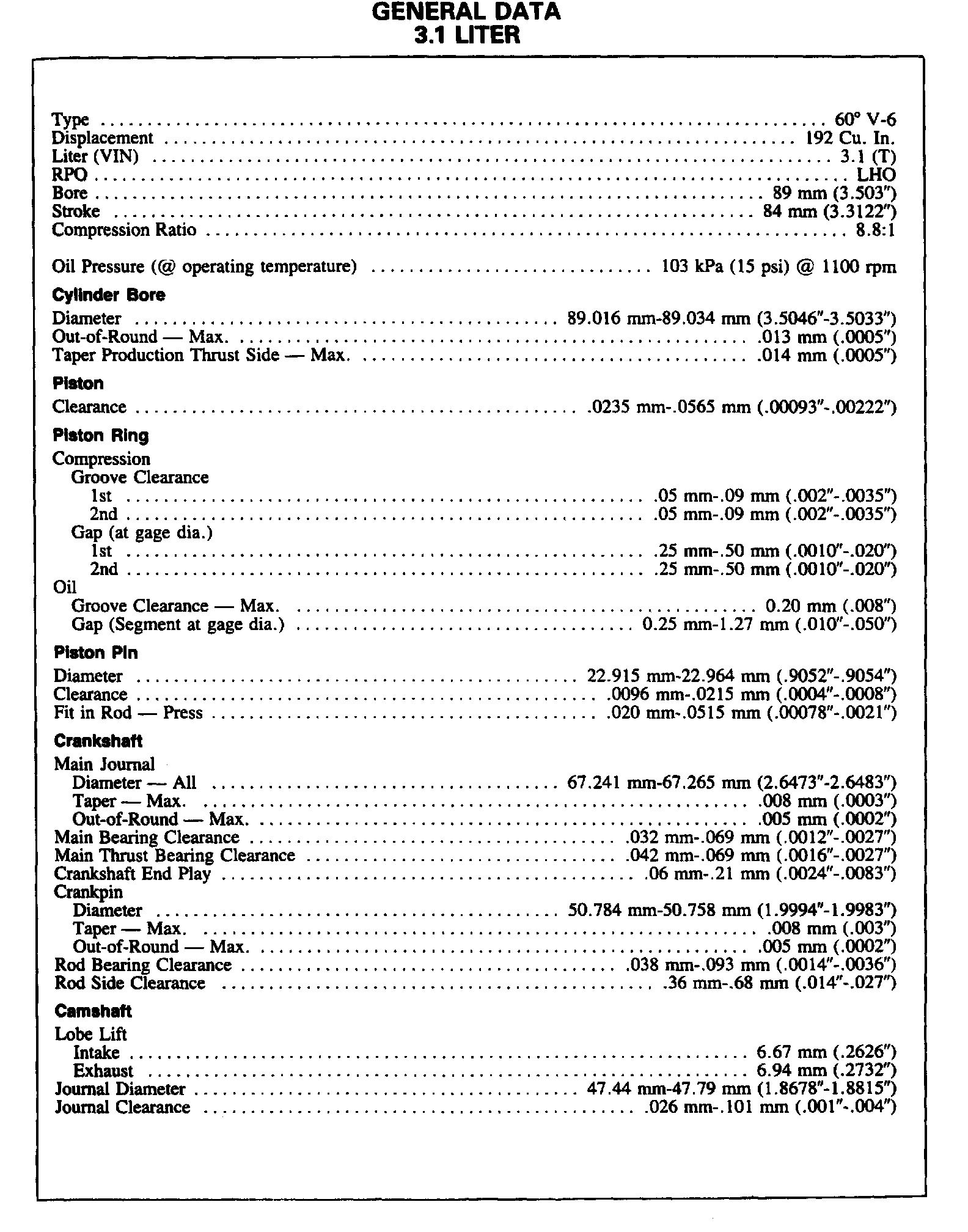

Engine Specifications (3.1L):

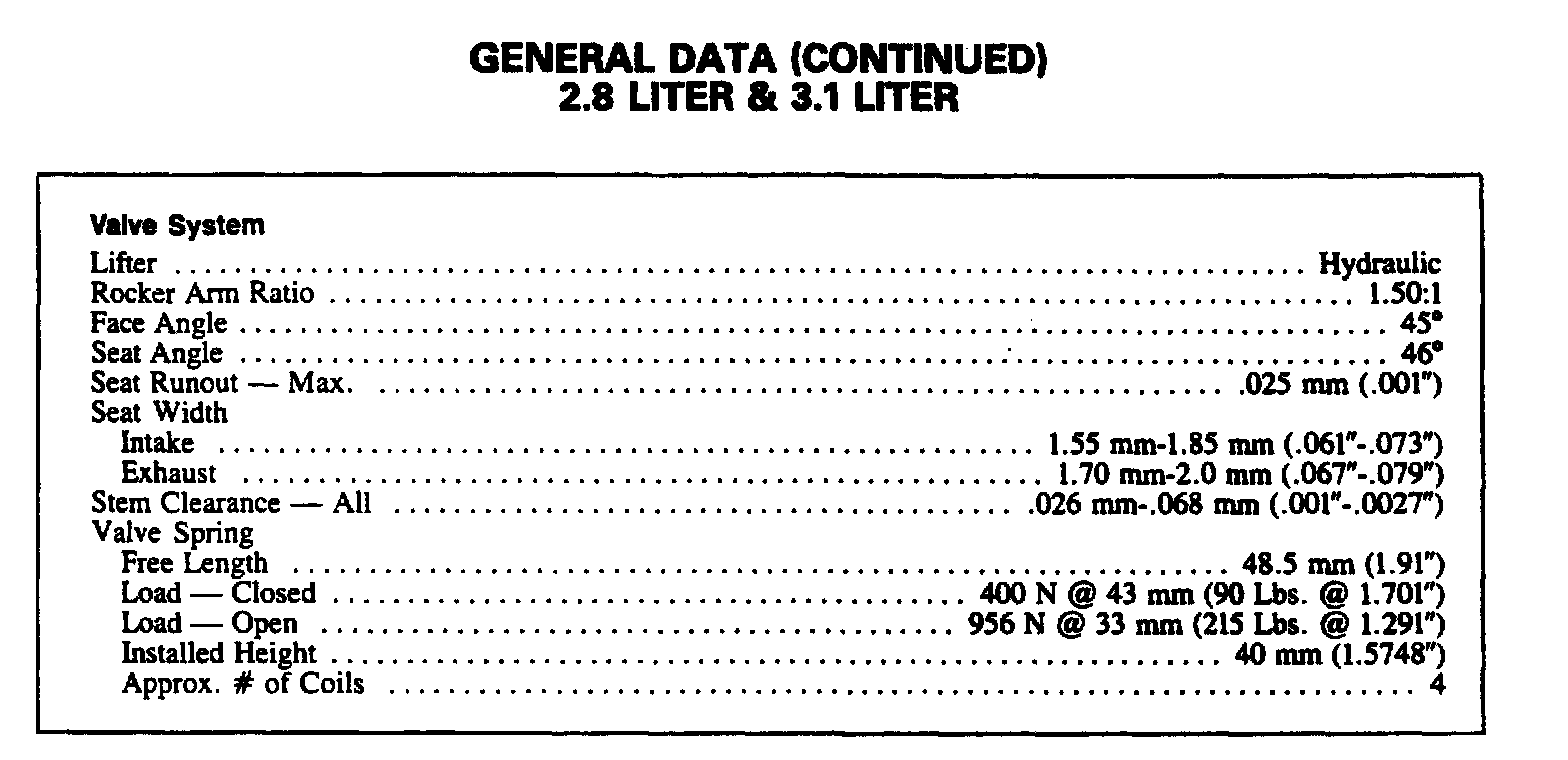

Continued Engine Specifications (2.8L/3.1L):

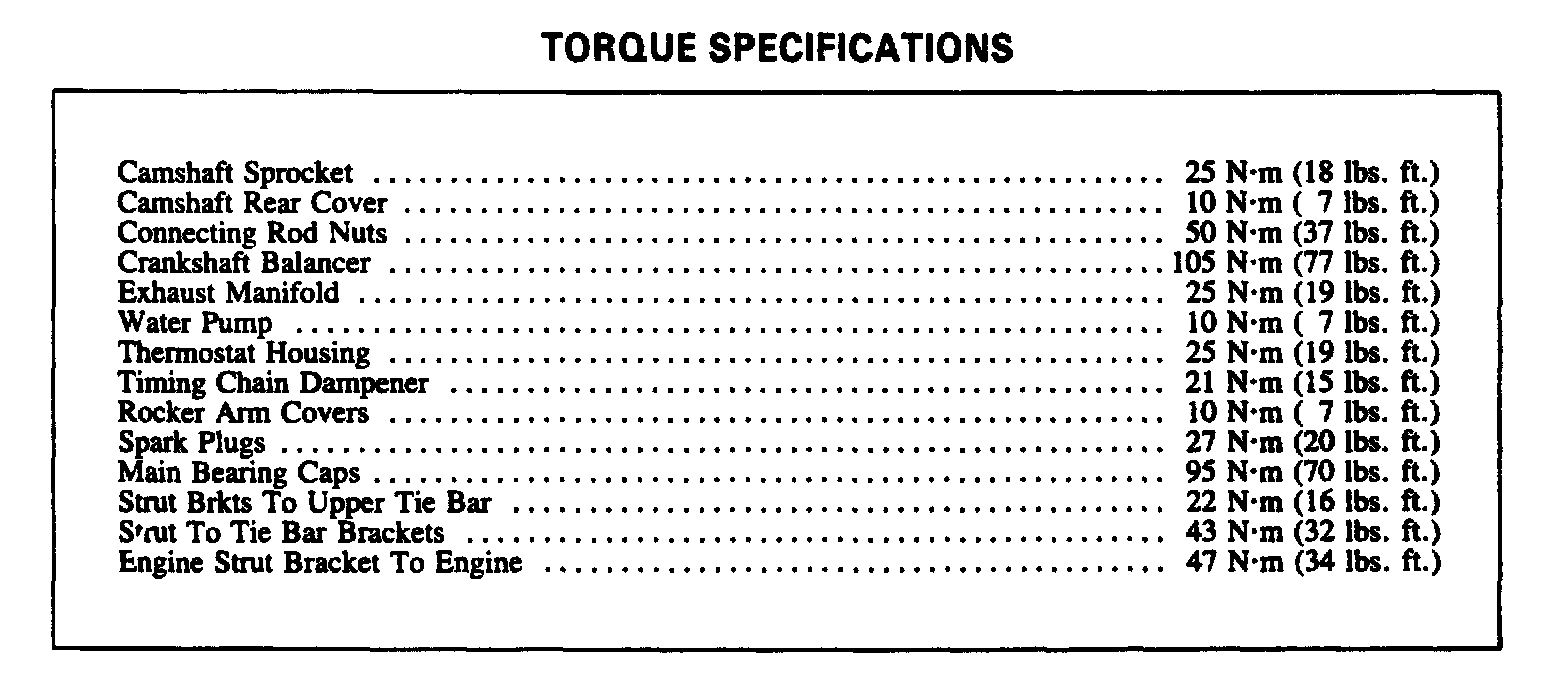

Torque Specifications:

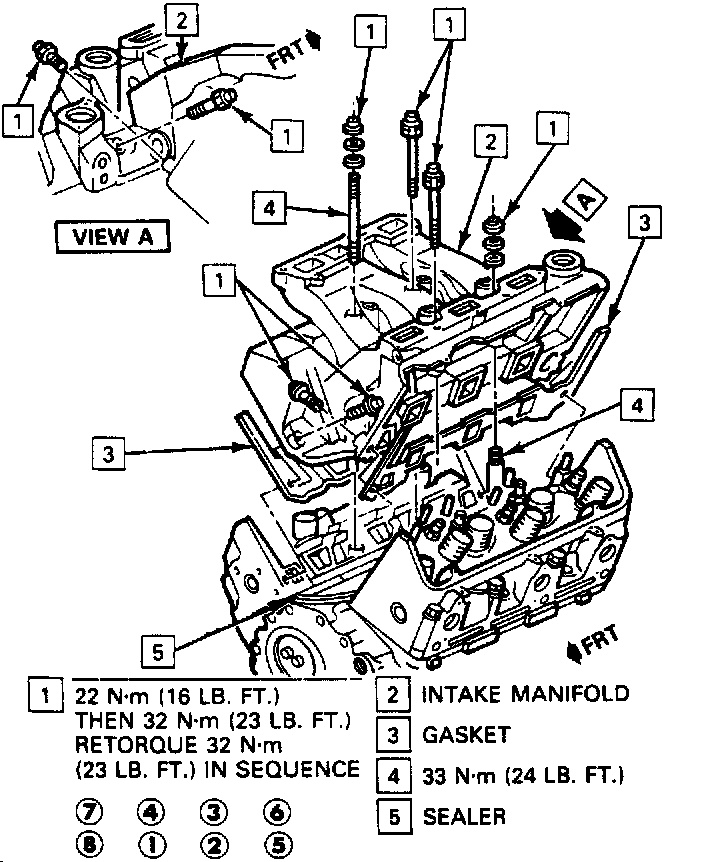

Intake Manifold Sequence:

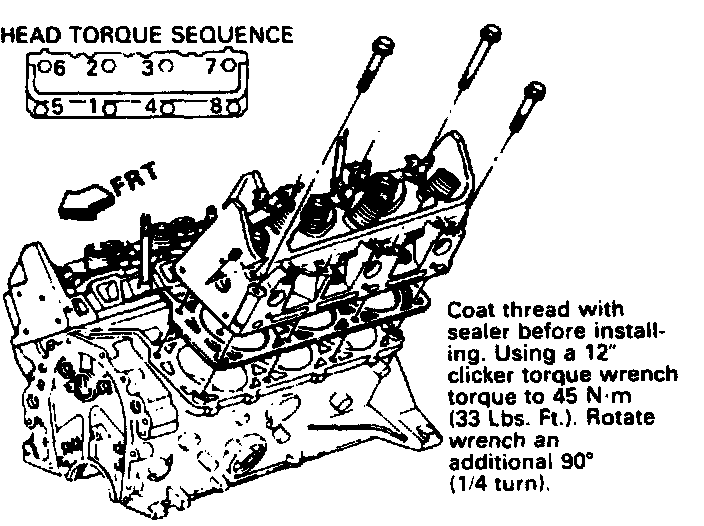

Cylinder Head Sequence:
