Home >> Pontiac >> 1989 >> Grand AM L4-121 2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

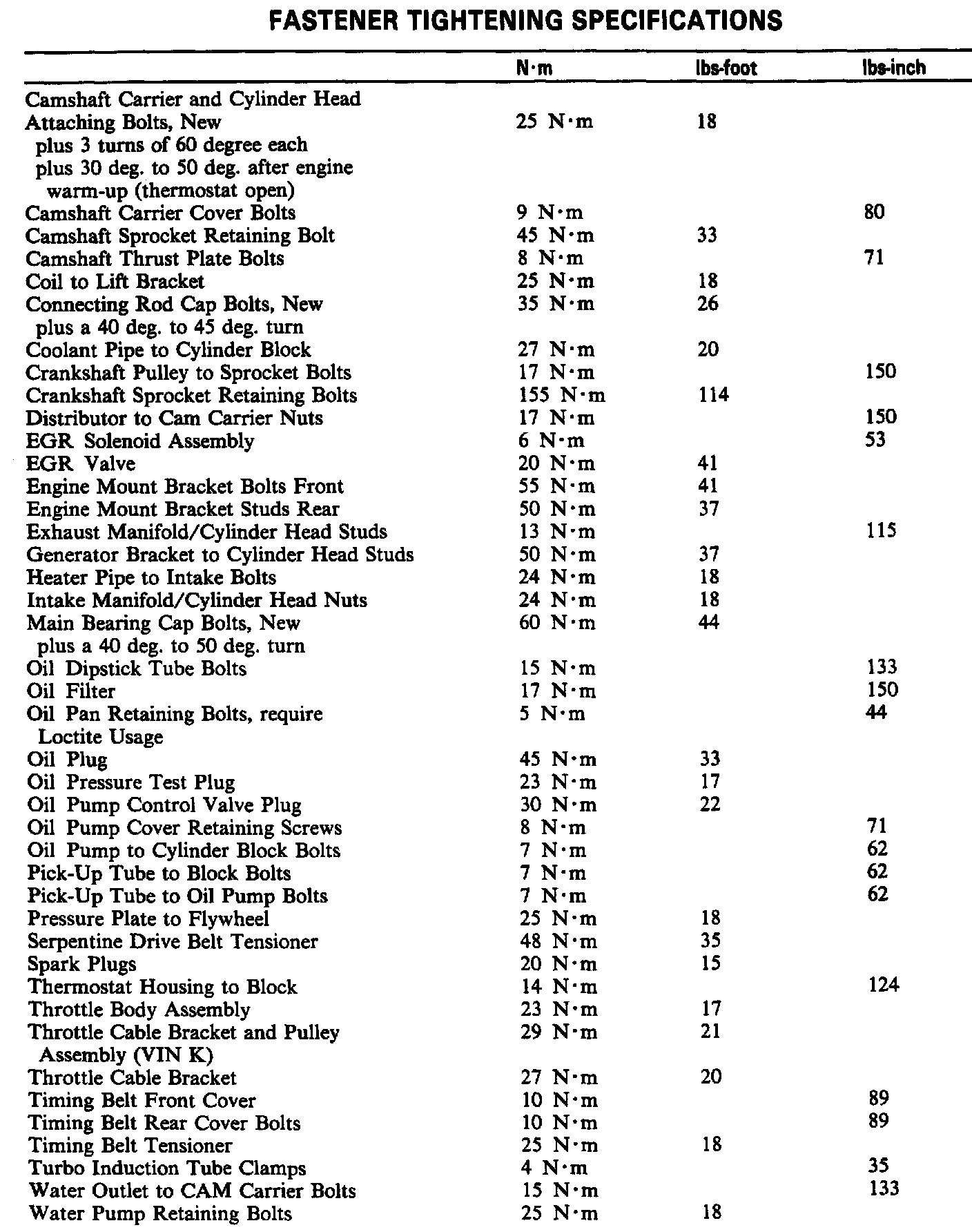

Torque Specifications:

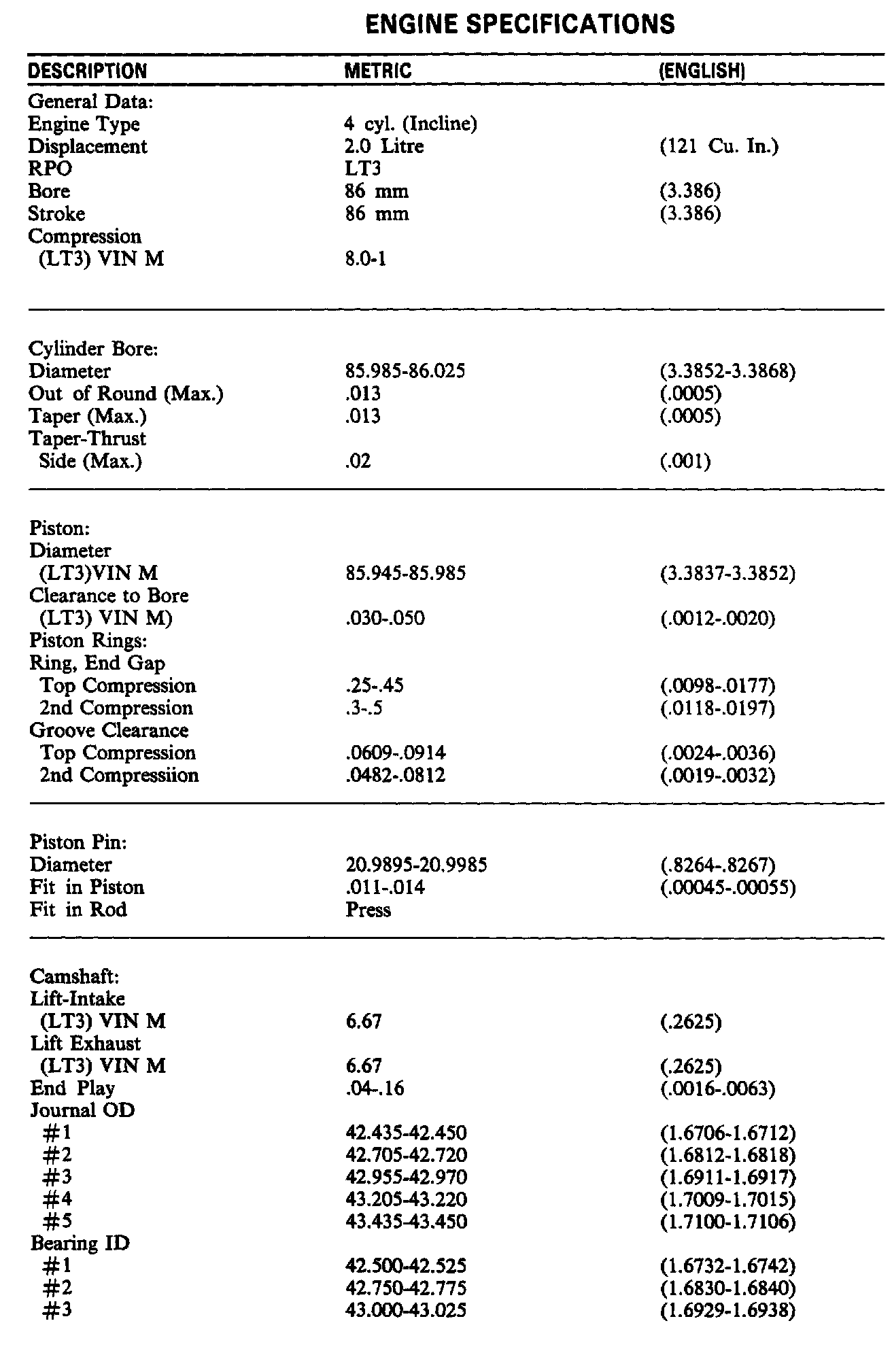

Engine Specifications:

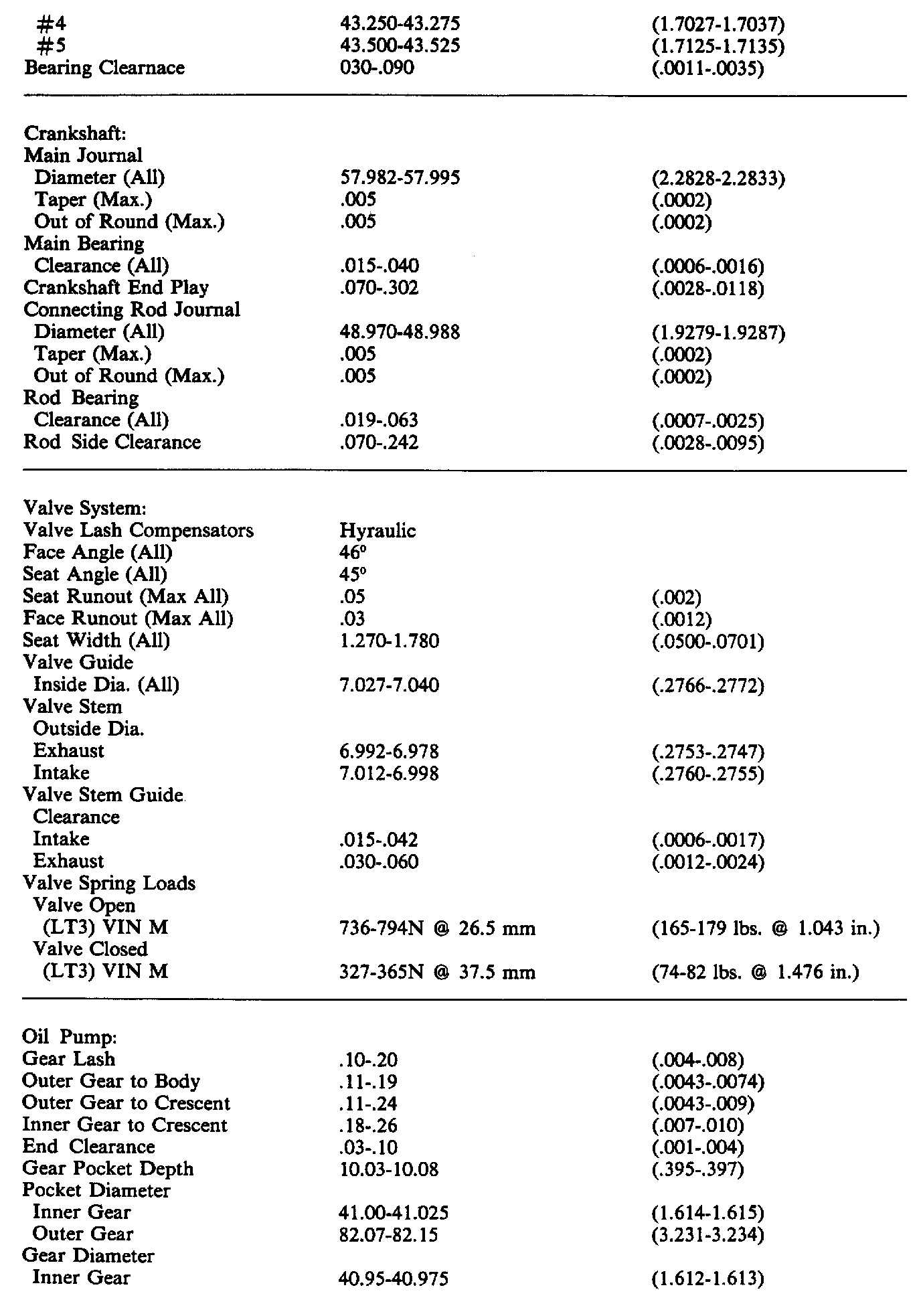

Continued Engine Specifications:




Continued Engine Specifications:






Cylinder Head Sequence:
