Home >> Pontiac >> 1988 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> VIN K

VIN K

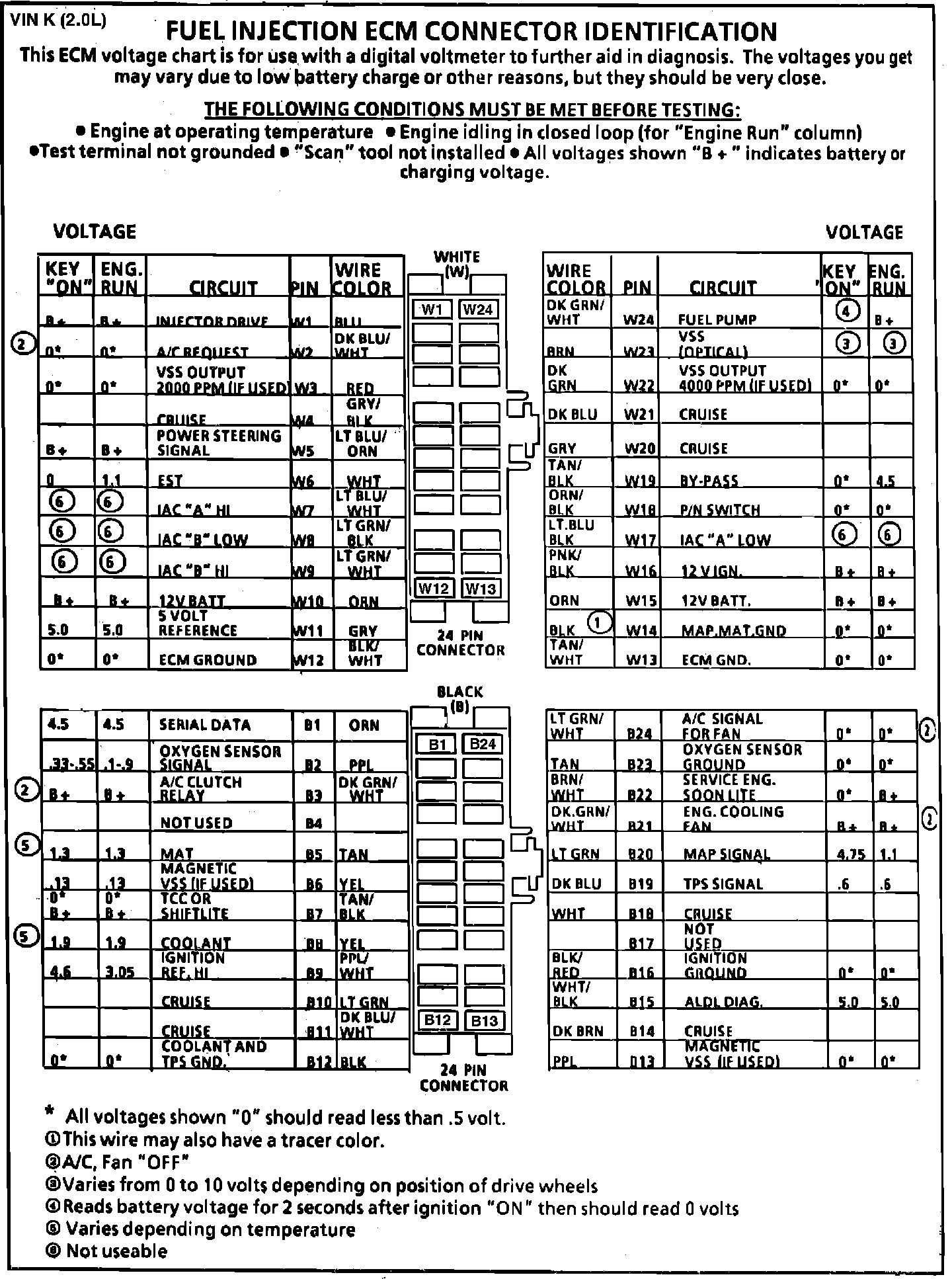

Fig. 018 ECM Connector Terminal I.D. & Volt. Specifications:
