System Specifications

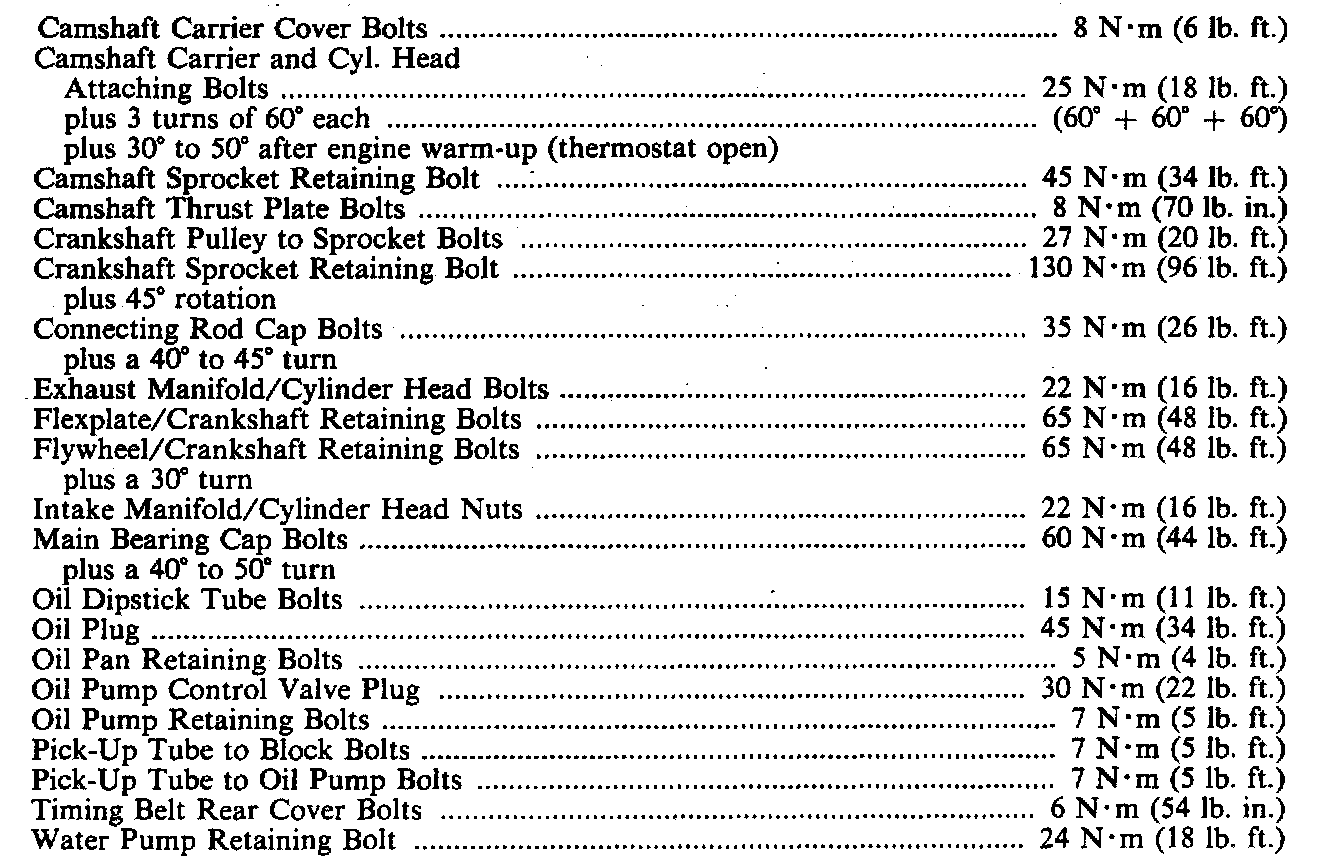

Torque Specifications:





Engine Specifications:

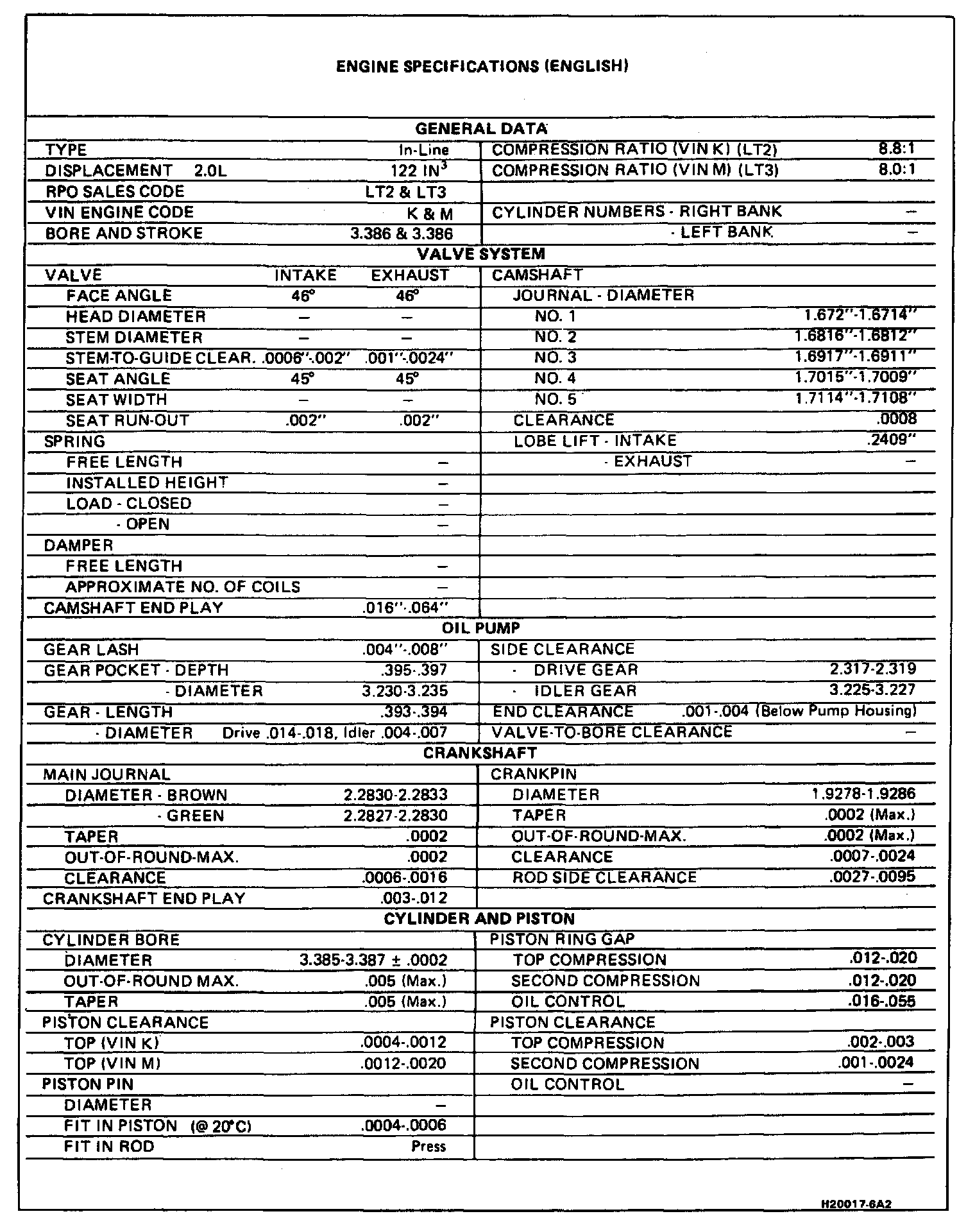

Engine Specifications (ENGLISH):

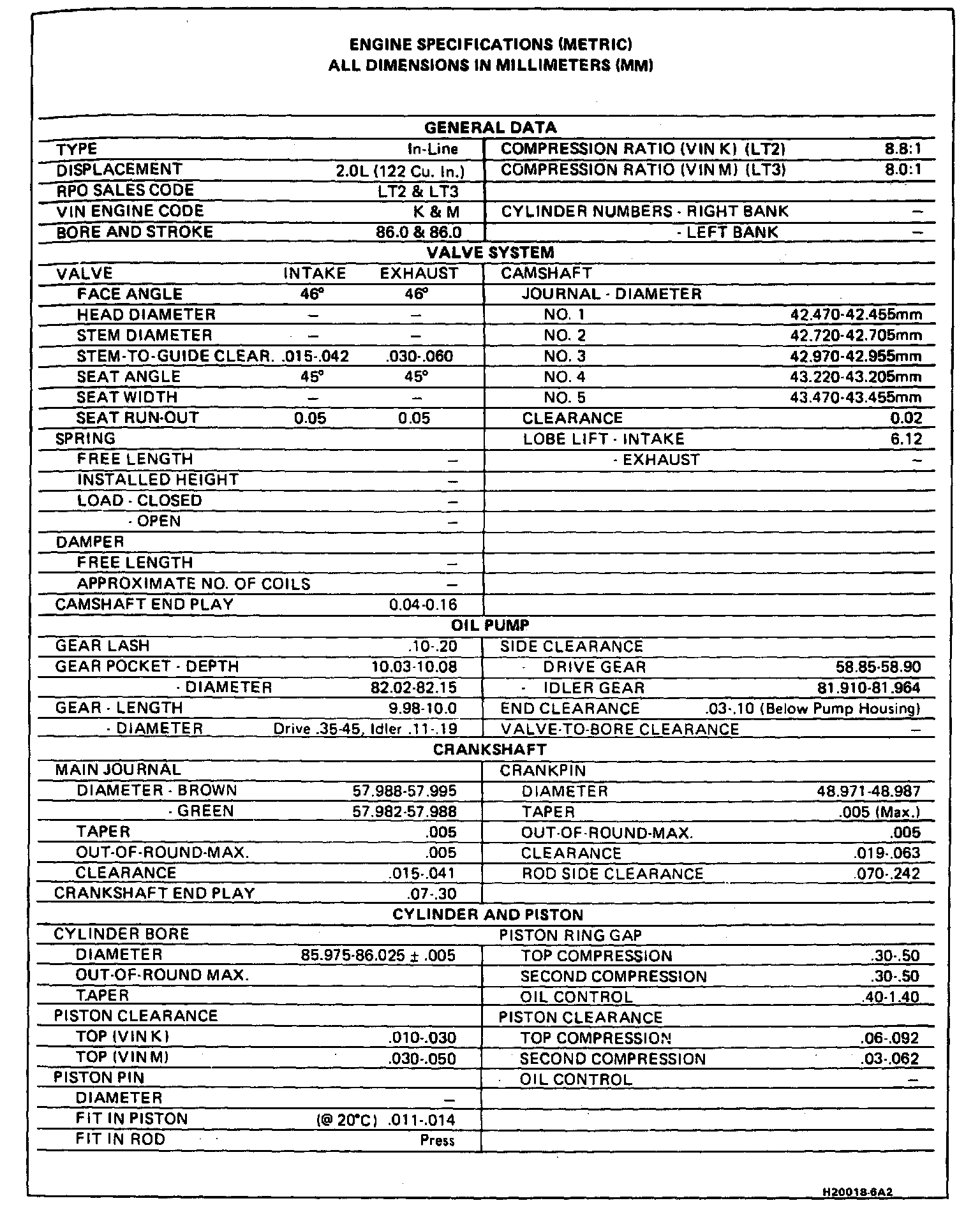

Engine Specifications (METRIC):





Cylinder Head Loosening Sequence:





Cylinder Head Torque Sequence:
