Home >> Pontiac >> 1988 >> Grand AM L4-121 2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations >> Turbo

Turbo

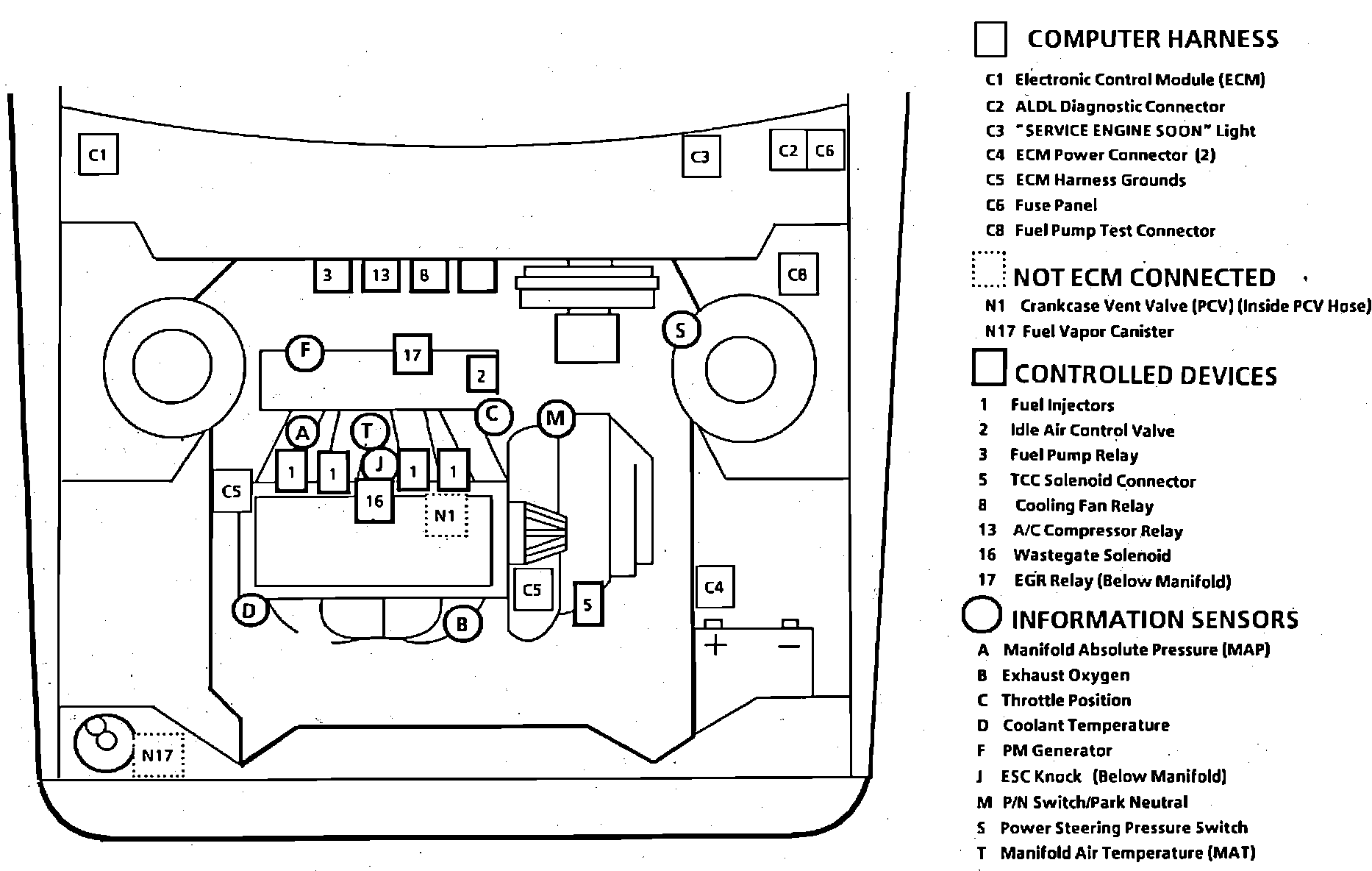

Engine Compartment Component Locations:

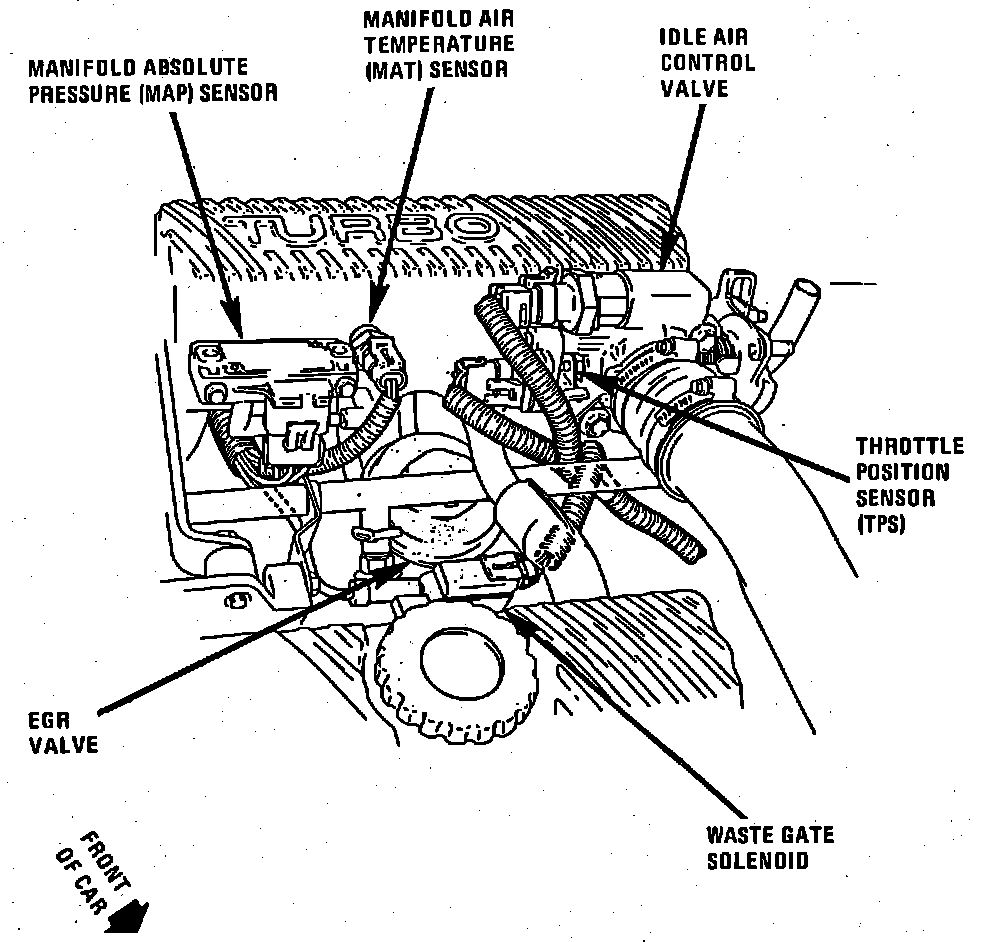

Front Of Engine.:




Rear LH Side Of Engine

Applicable to: 4-121/2.0L Turbo Engine
