Home >> Pontiac >> 1988 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> Testing and Inspection

Exhaust Gas Recirculation: Testing and Inspection

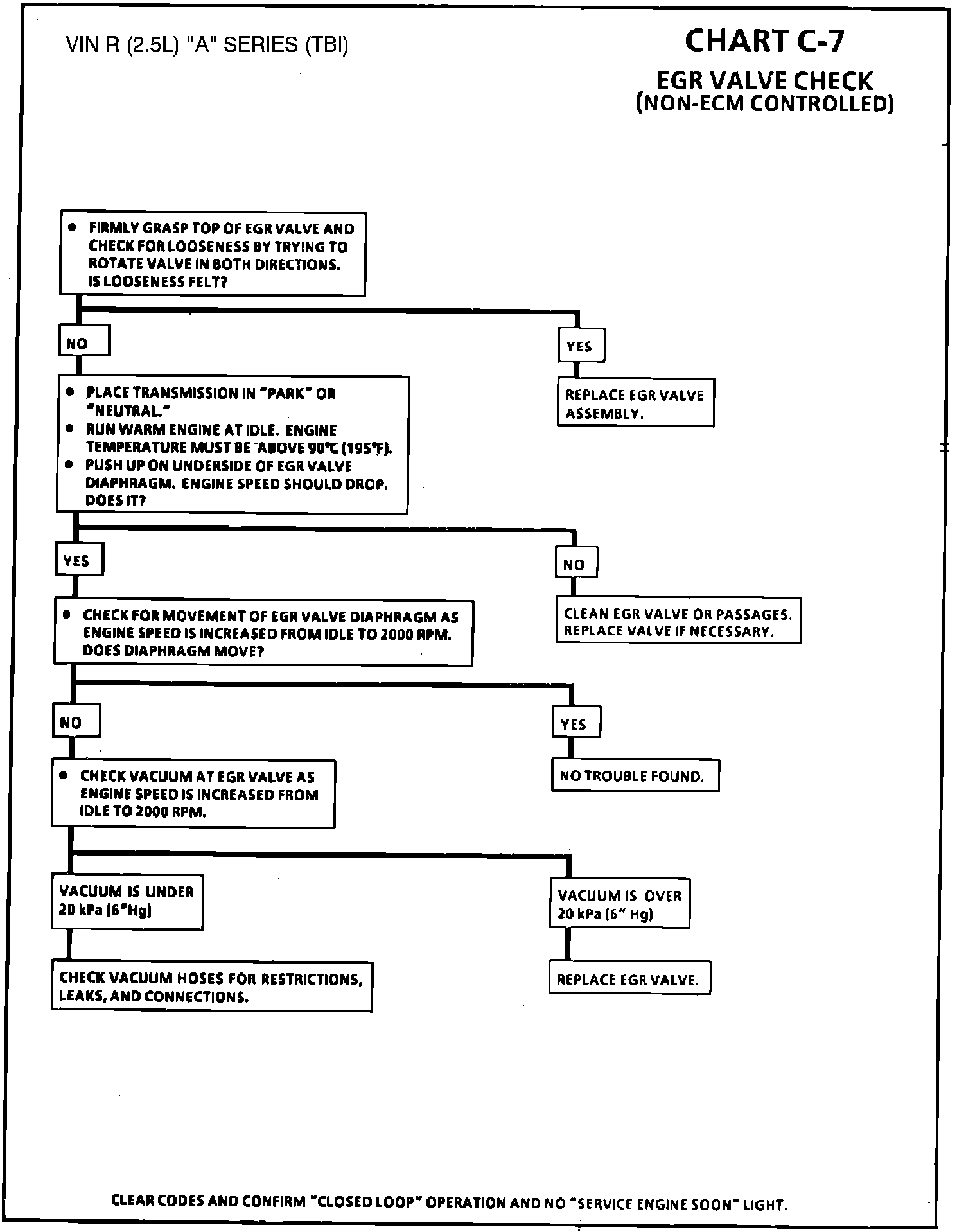

Fig. 082 Chart C-7 EGR Valve Check Non-ECM Controlled:
