Home >> Pontiac >> 1987 >> T1000 L4-98 1.6L >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

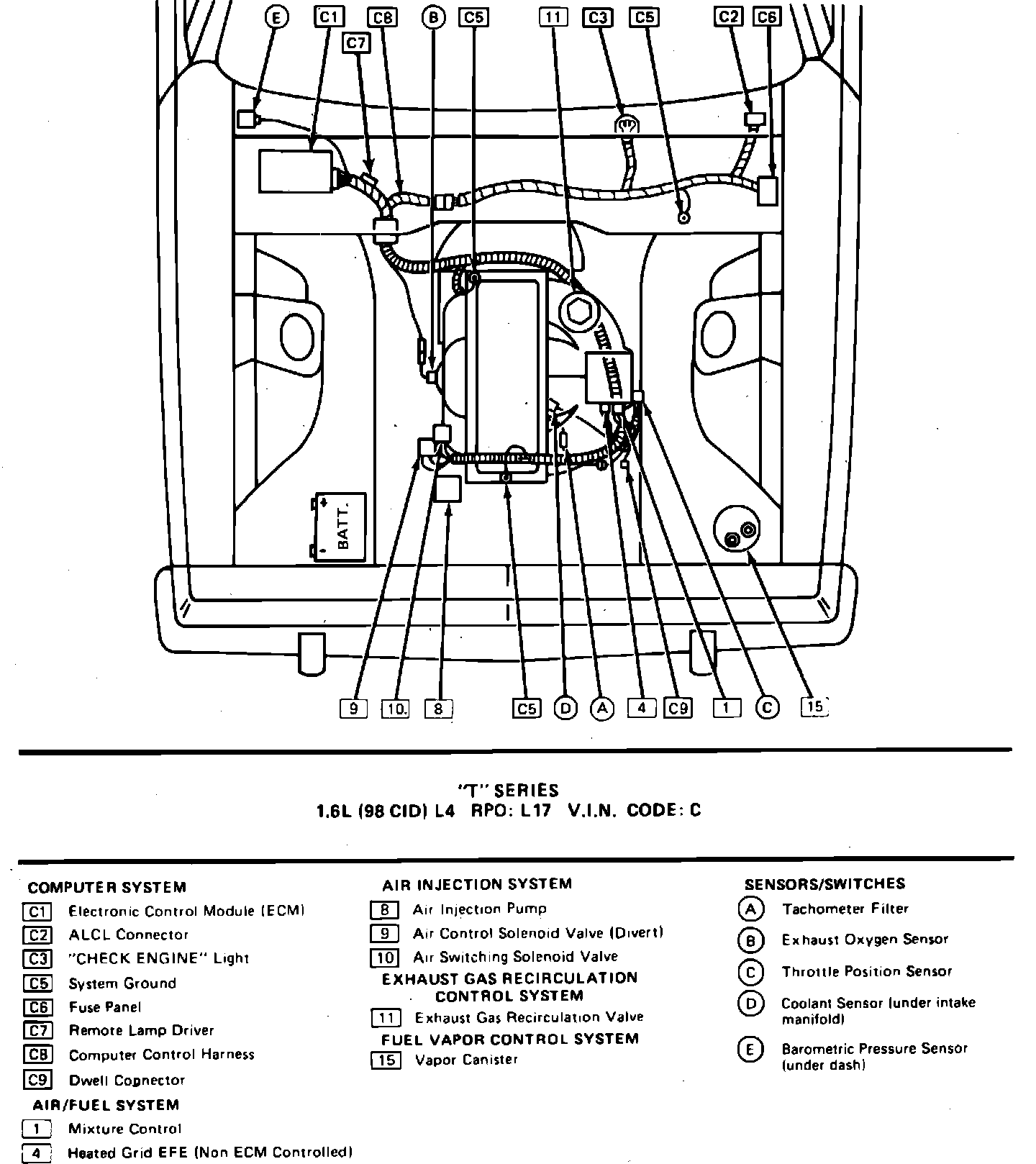

Fig. 59 Emission Component Location. 1987 1000 W/4-98/1.6L, Engines:
