Home >> Pontiac >> 1987 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Less Convertible

Less Convertible

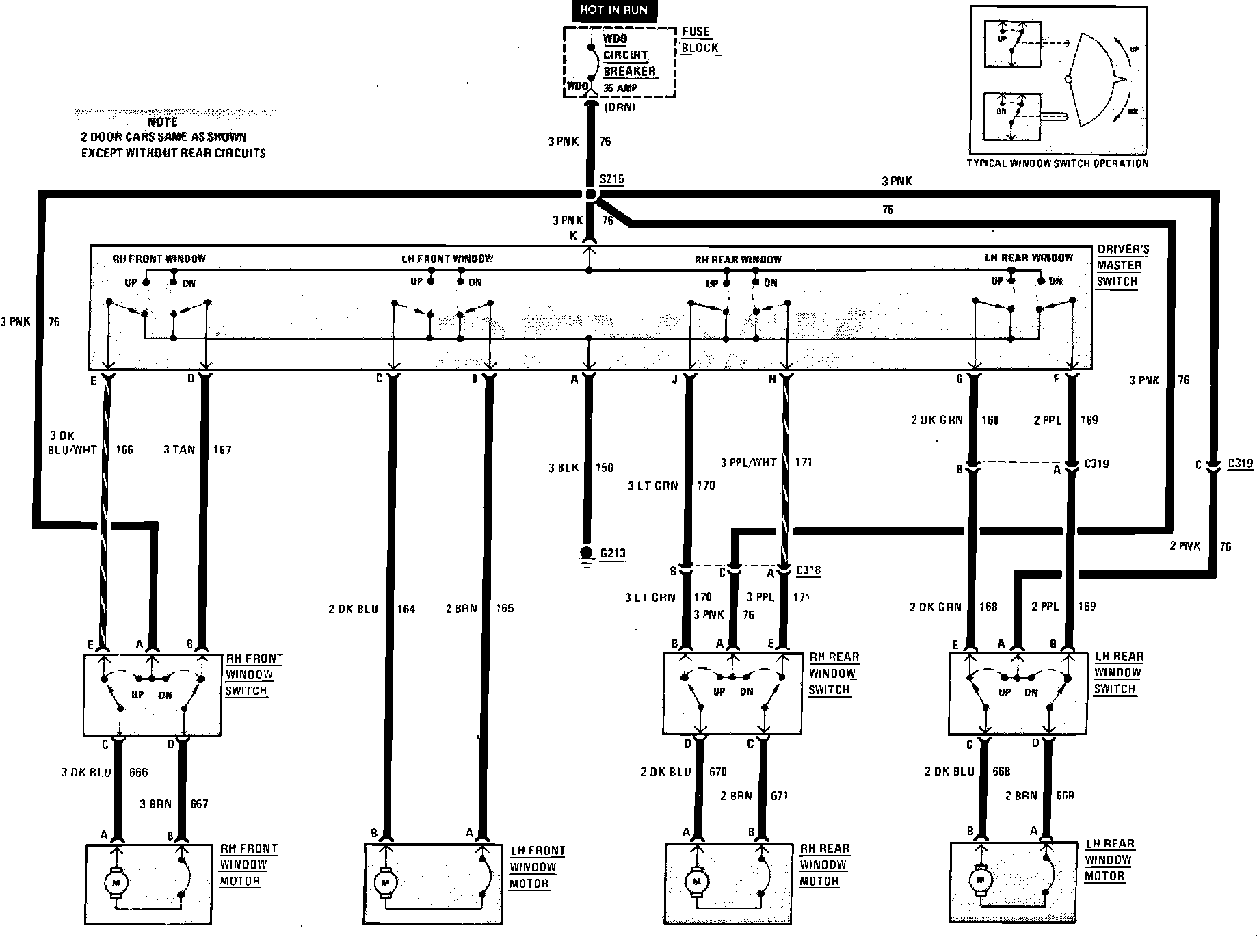

Fig. 274 Power Window Wiring Circuit Less Convertible:
