Electronic/Powertrain Control Module (ECM/PCM)
>>
With Speed Density Update
With Speed Density Update

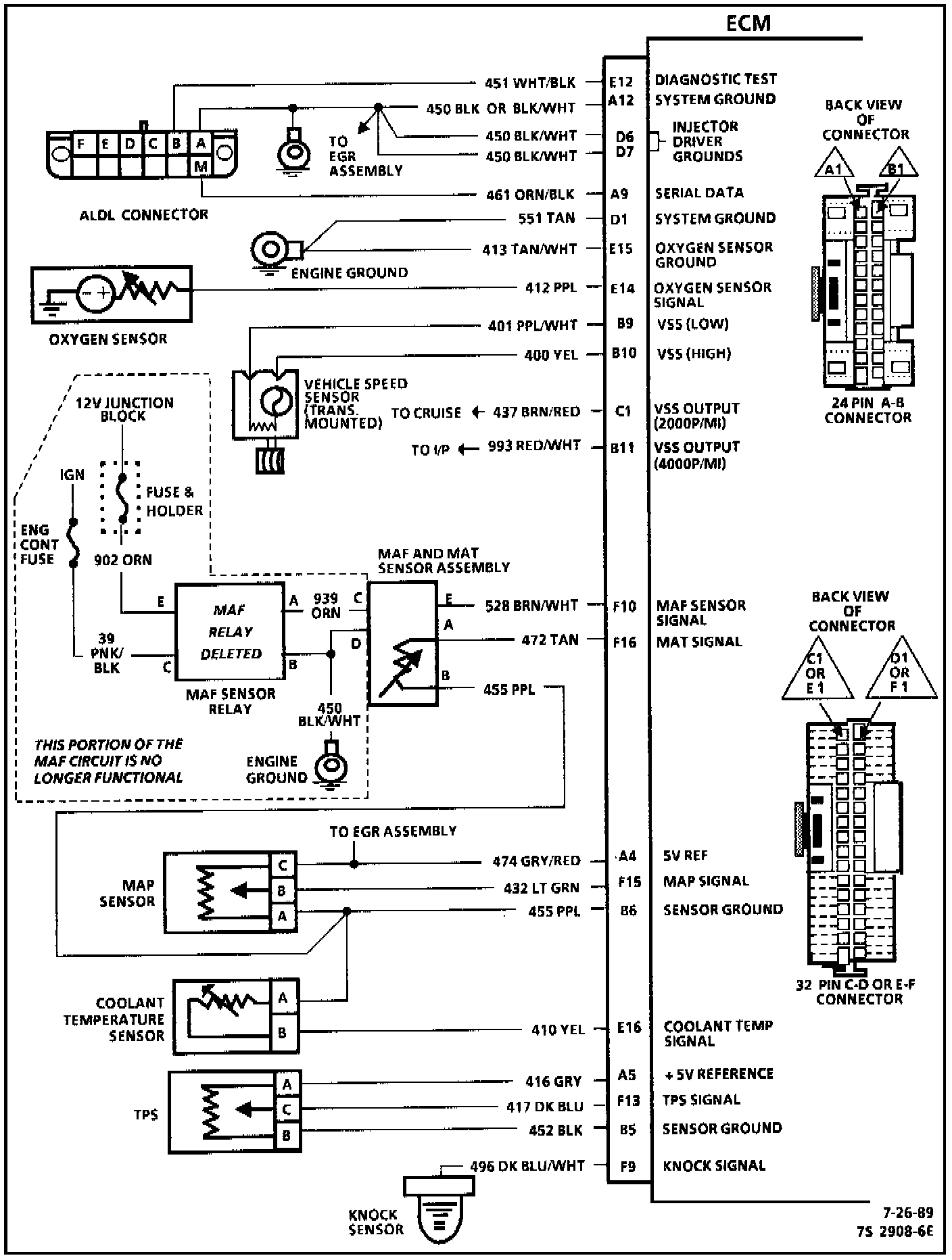

ECM Wiring Diagram (1 Of 3):

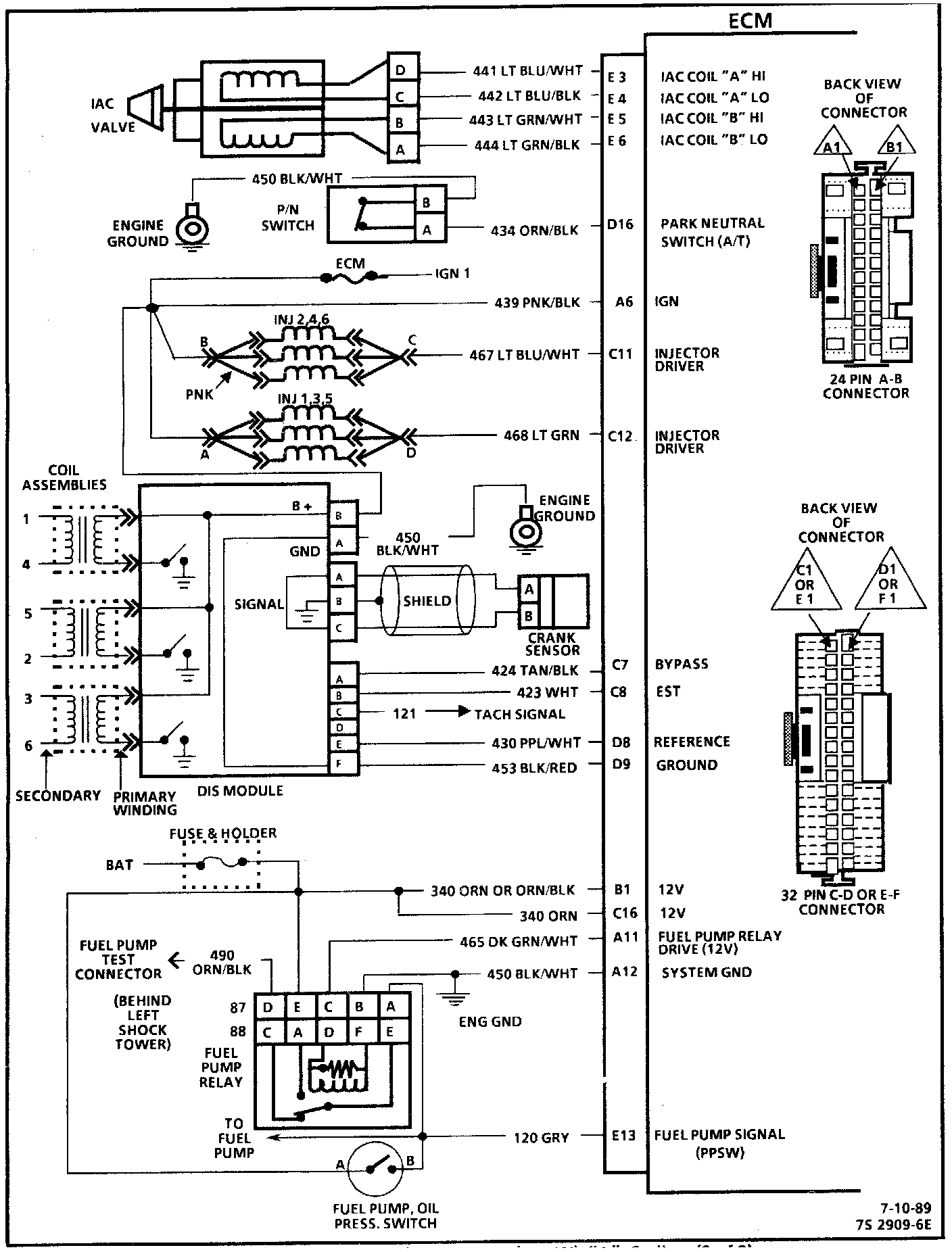

ECM Wiring Diagram With Speed Density Update:
ECM Wiring Diagram (3 Of 3):
