Electronic Control Module (ECM)

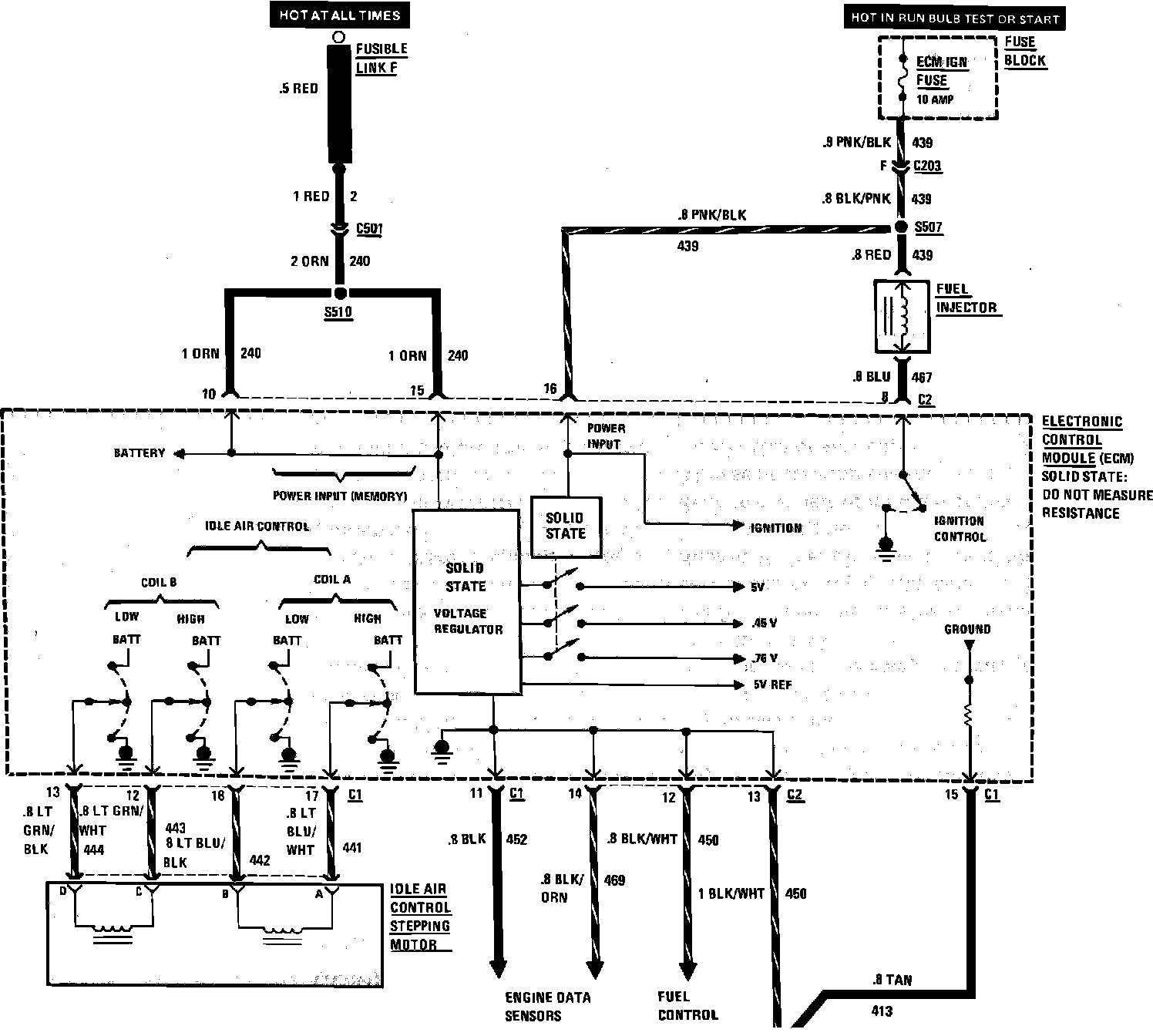

Electronic Fuel Injection Wiring Circuit (Electronic Control Module):
