Under Hood Components

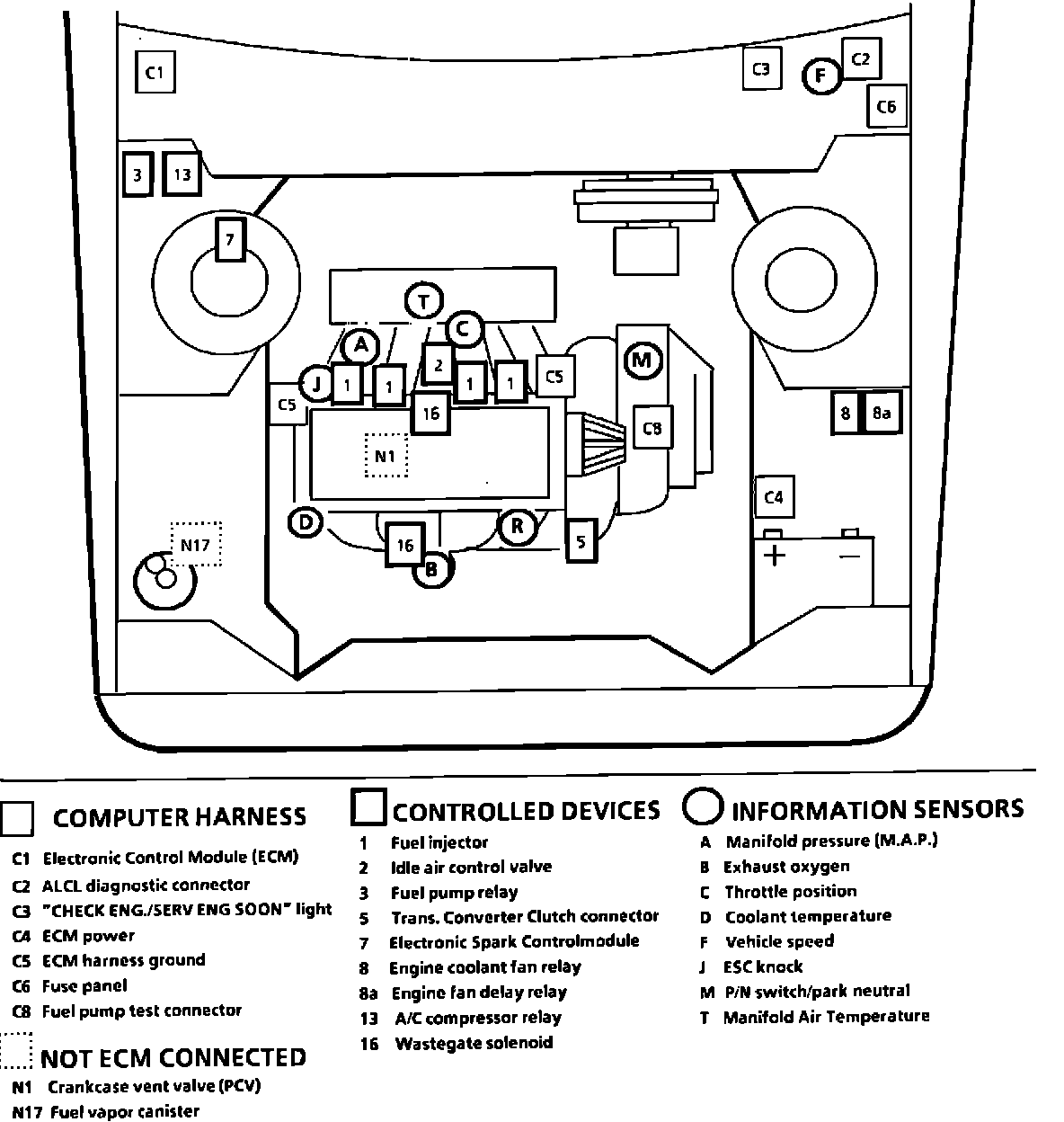

Component Locations.:




In Engine Compartment

Applicable to: 1985 4-112/1.8L Engine
