Engine Wiring Harness

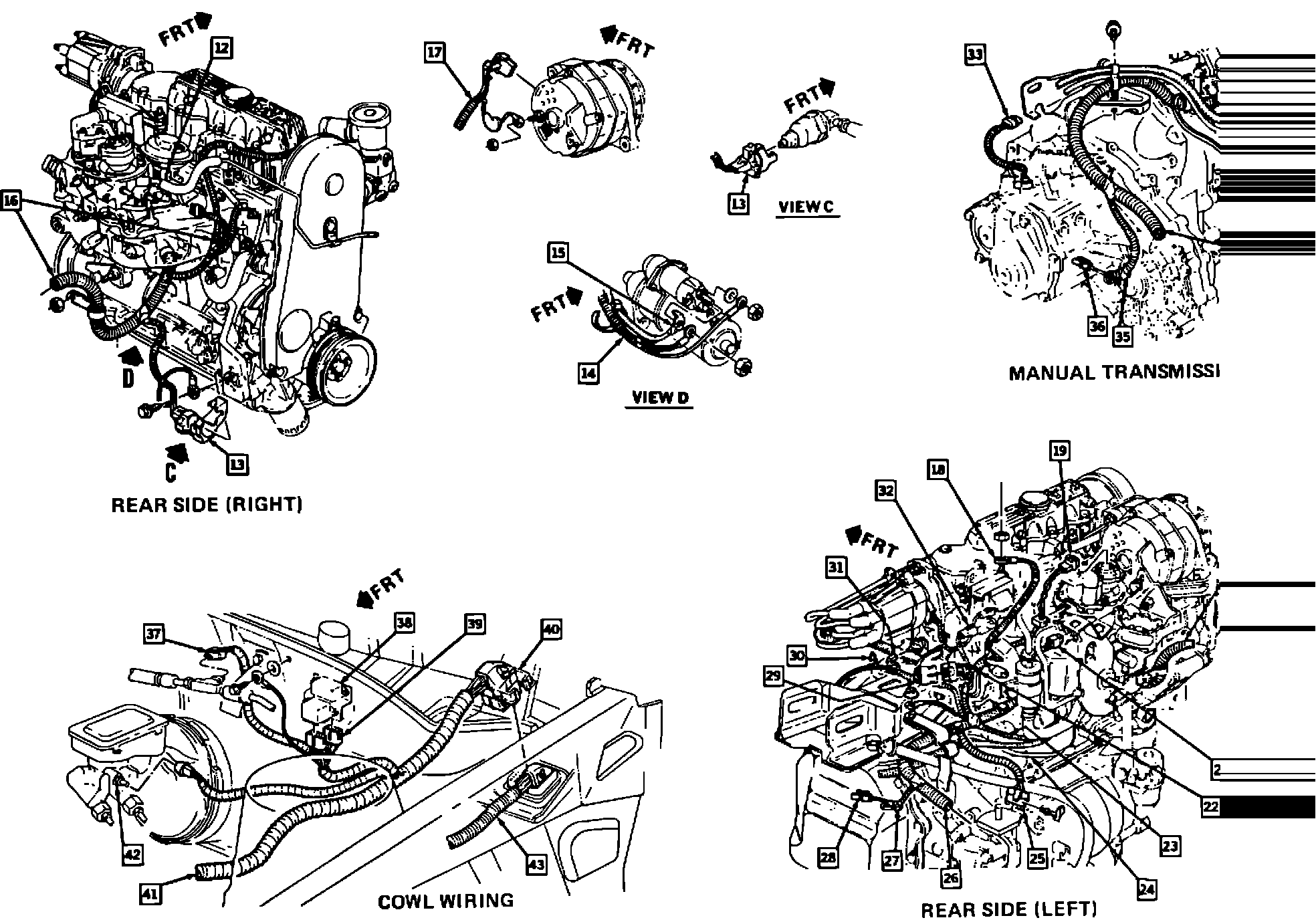

Engine Wiring Harness (Part 1 Of 2).:
Engine Wiring Harness (Part 1 Of 2).:
In Engine Compartment
Applicable to: 1985 4-112/1.8L OHC Less Turbo
