Chart C2D - Map Output Check

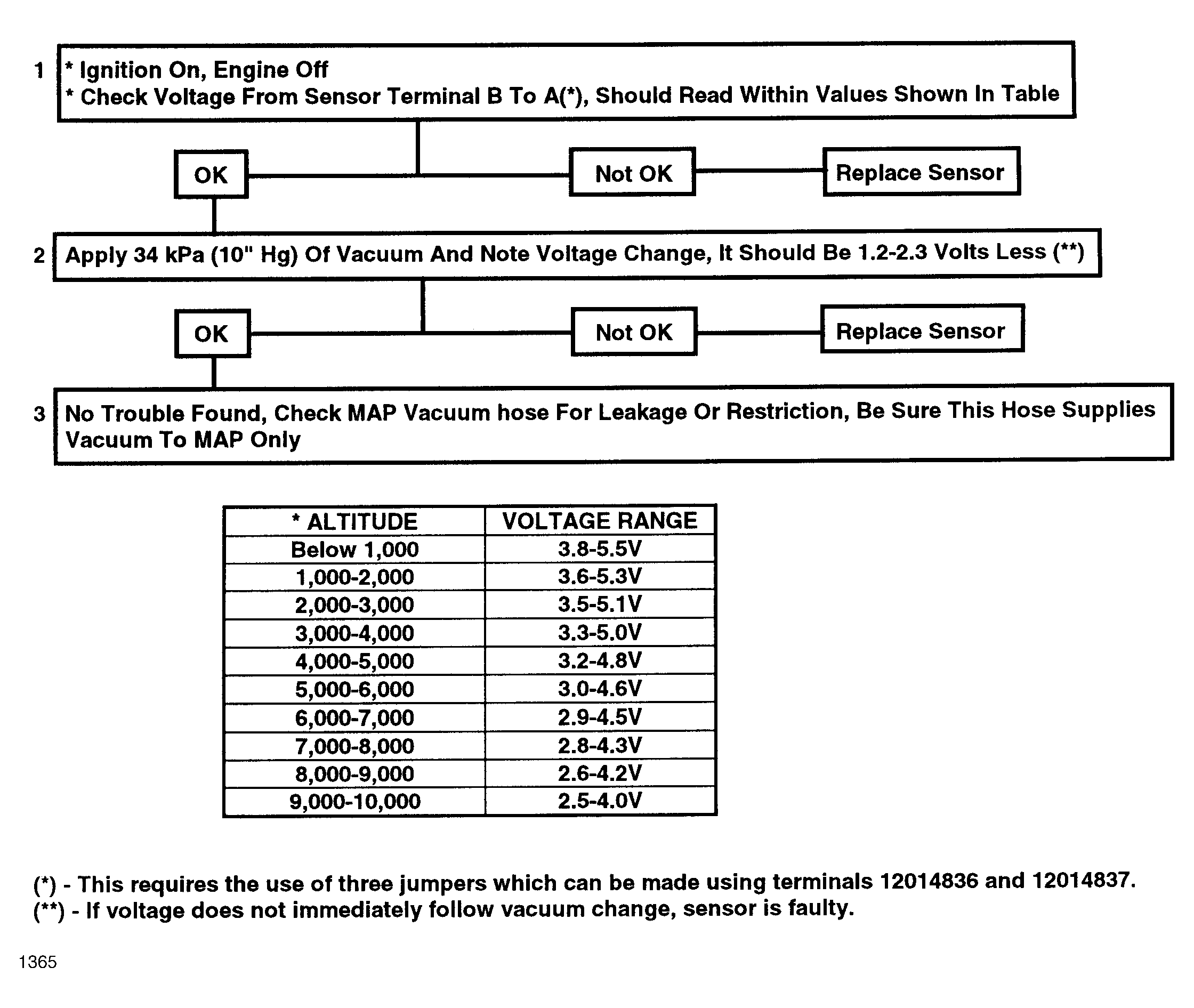

Fig 1: Chart C2D, MAP Output Check Flow Chart

G1365

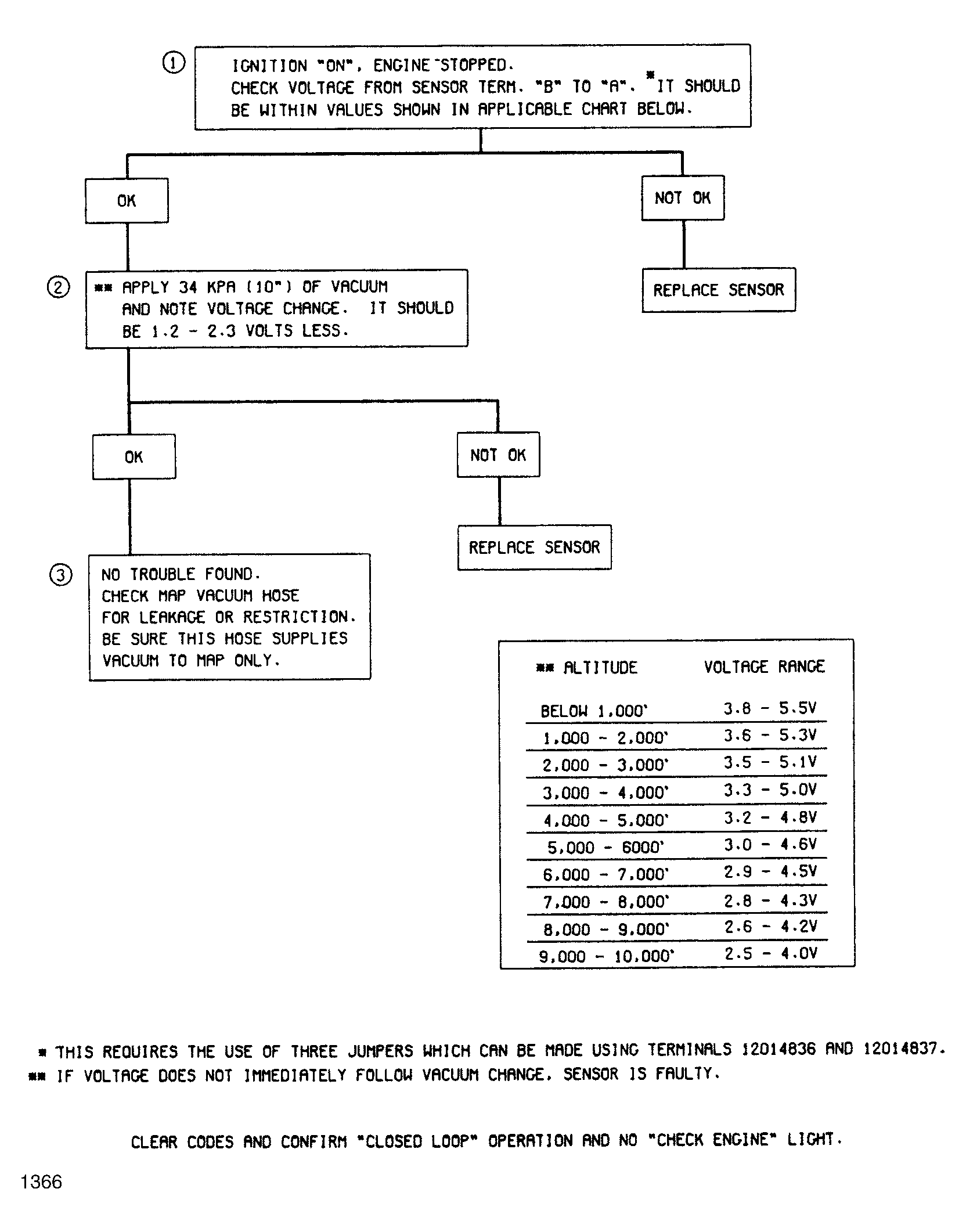

Fig 2: Chart C2D, MAP Output Check Flow Chart

GB0048034

Fig 3: Chart C2D, MAP Output Check Ckt Diagram

G1366
