Home >> Pontiac >> 1983 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Testing and Inspection

Compressor Clutch: Testing and Inspection

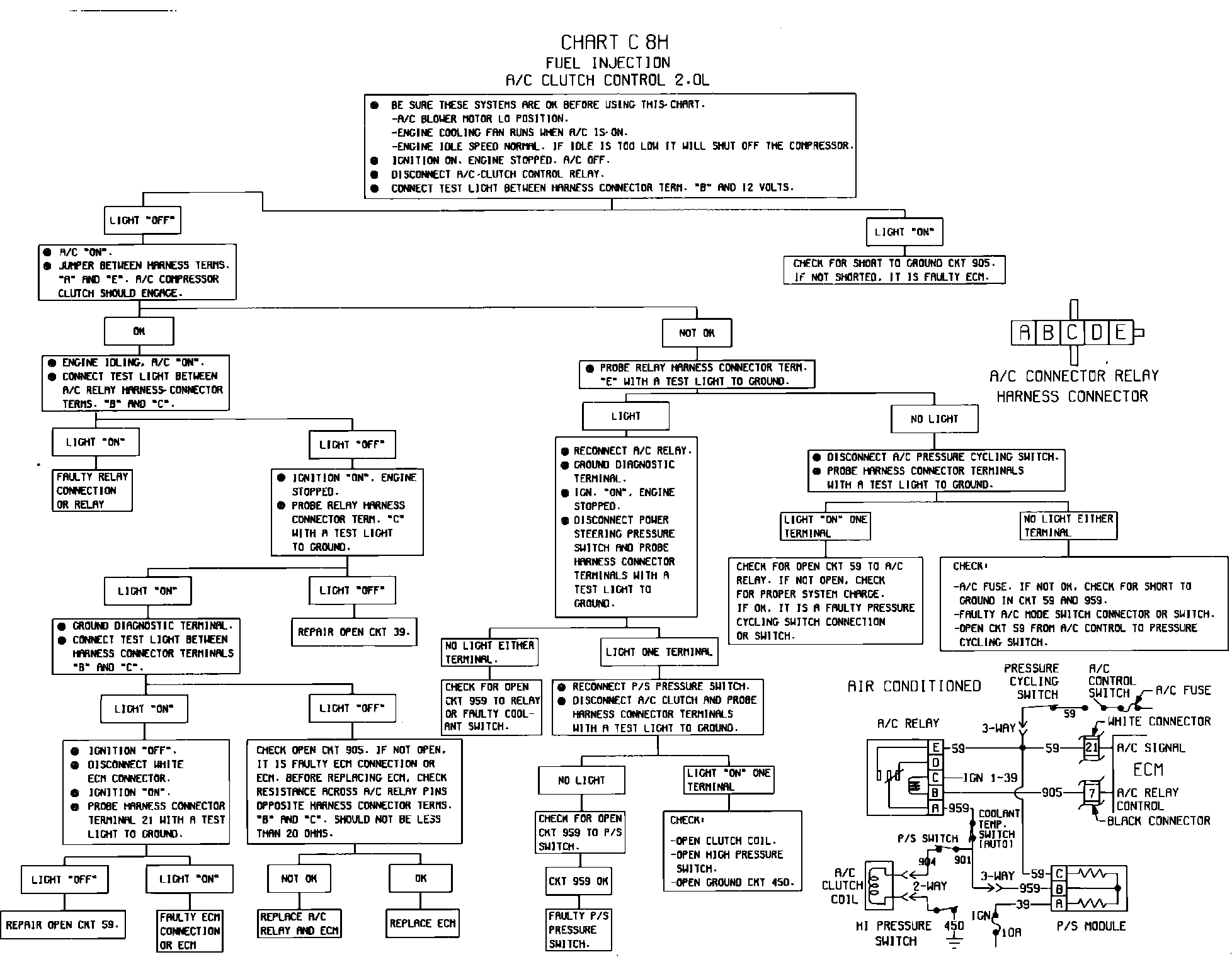

Fig. 33 Chart C-8H A/C Clutch Control 1983:
