Home >> Pontiac >> 1983 >> 6000 V6-260 4.3L DSL >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

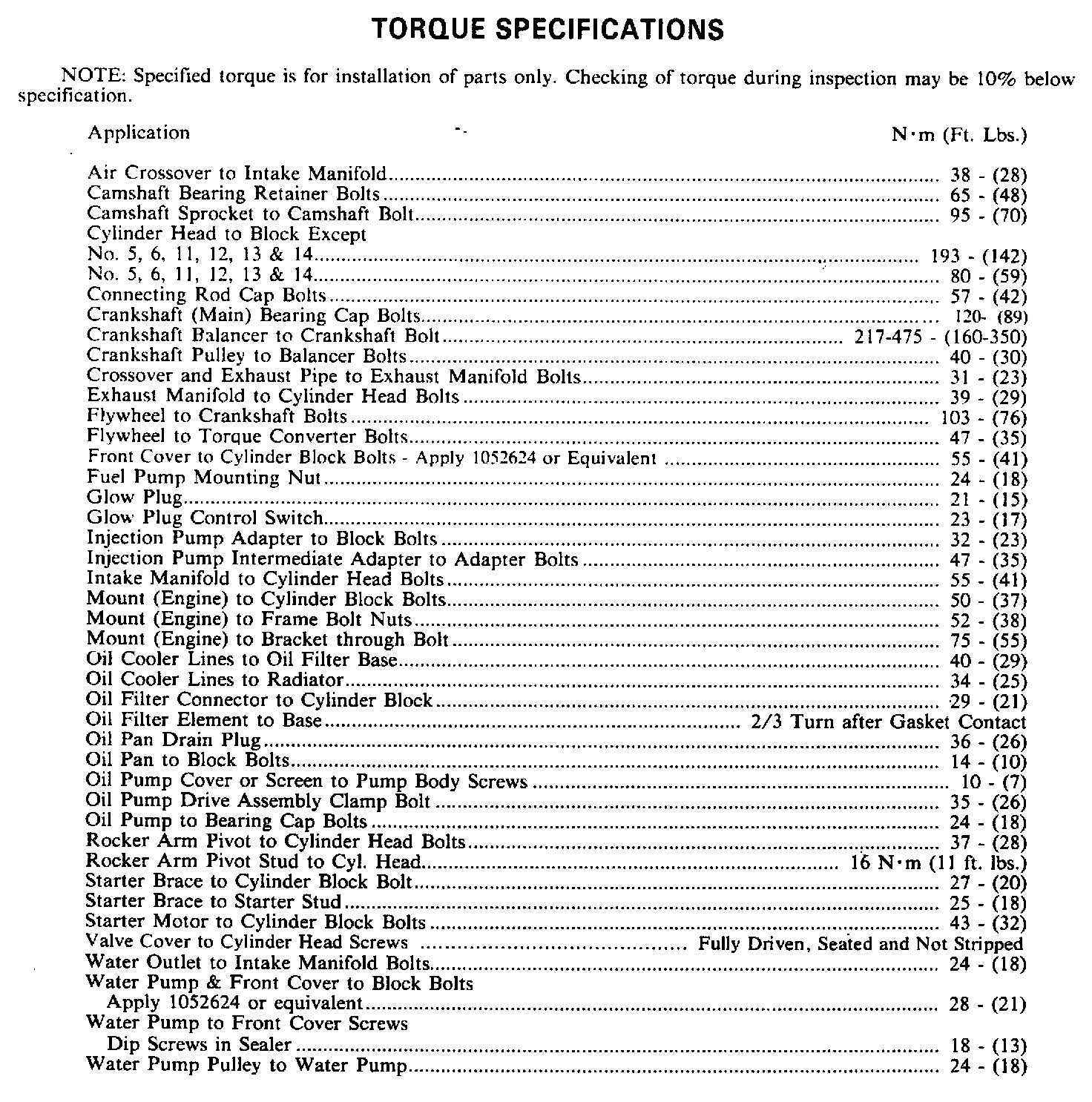

Torque Specifications:

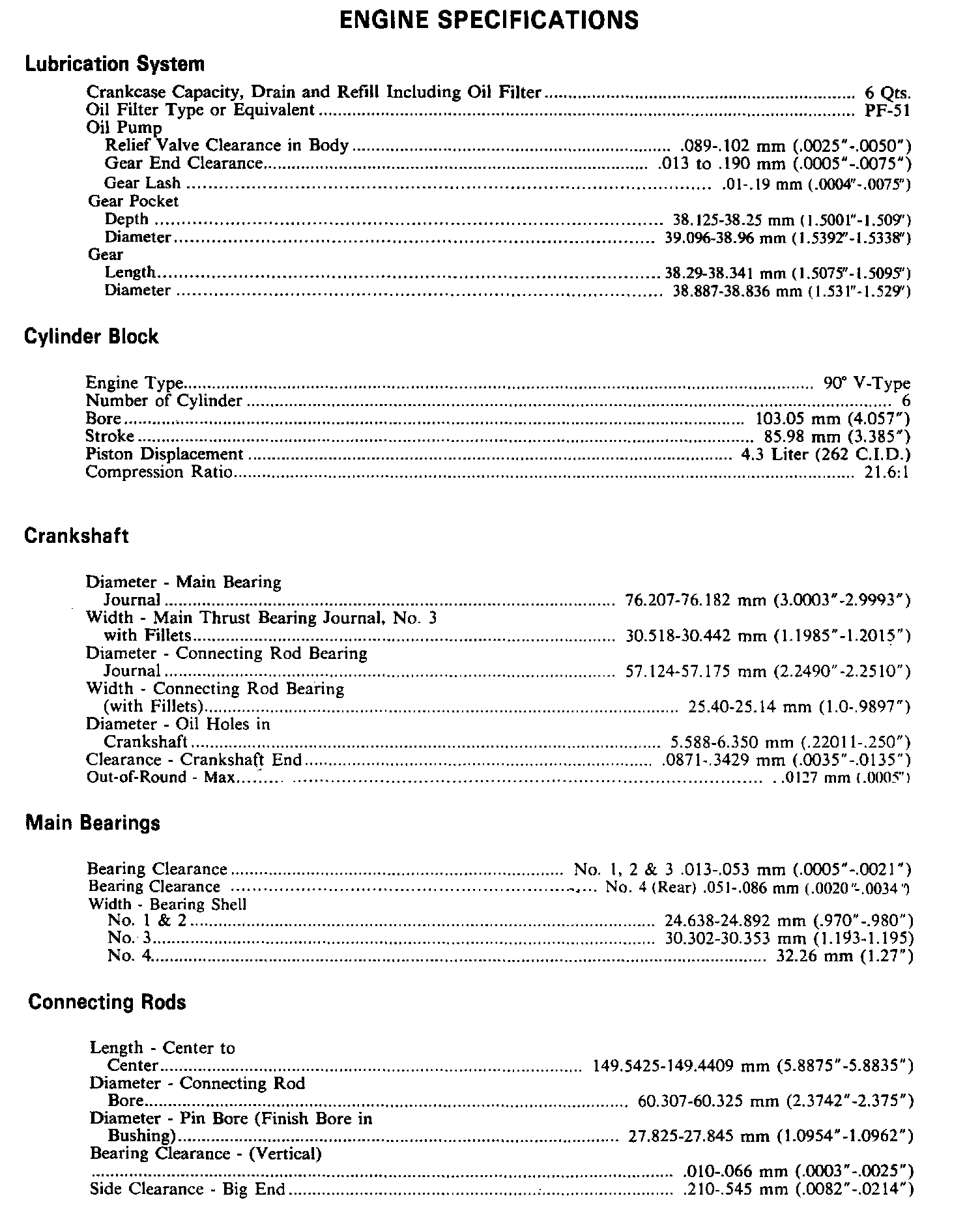

Engine Specifications:





Engine Specifications:

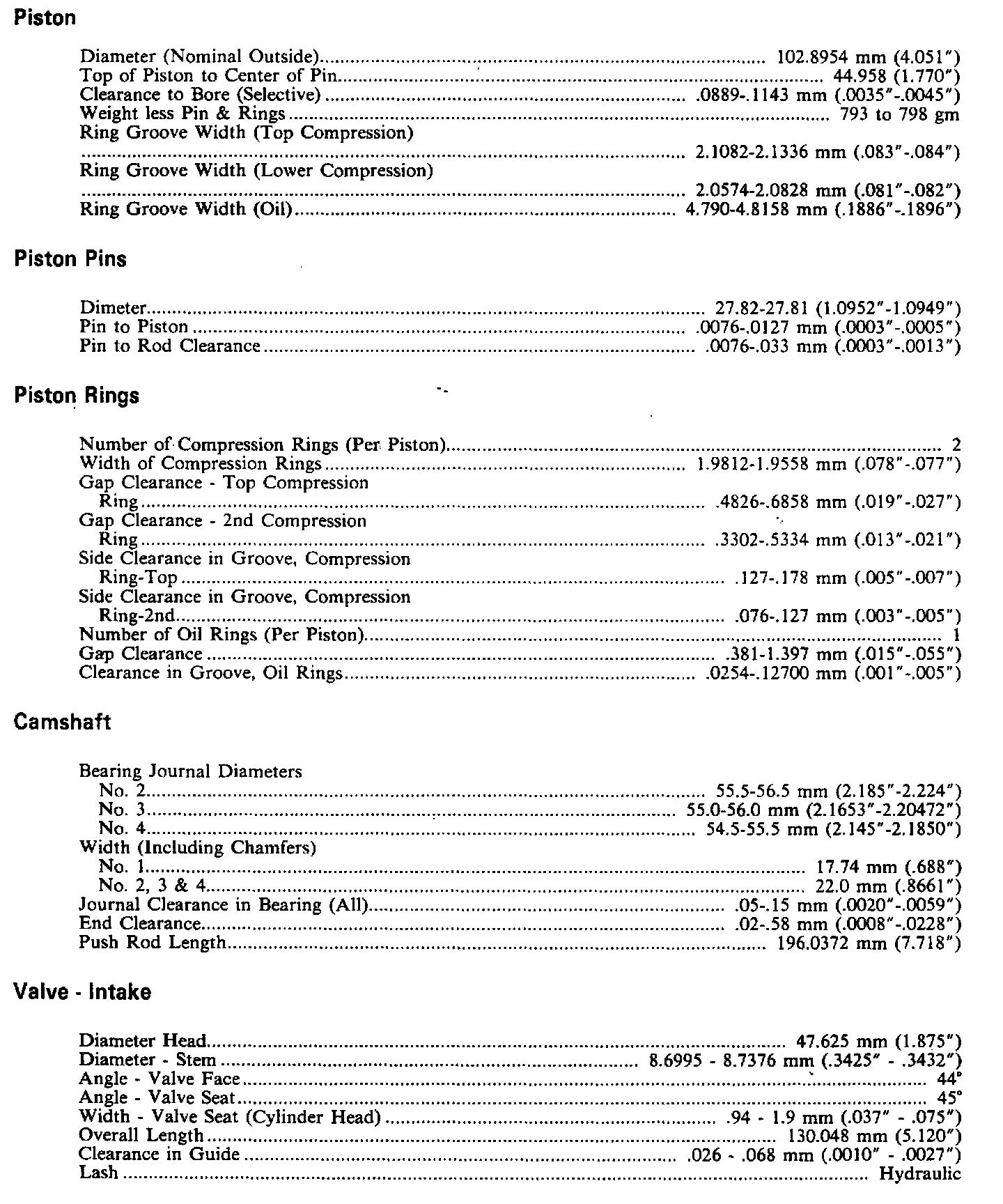

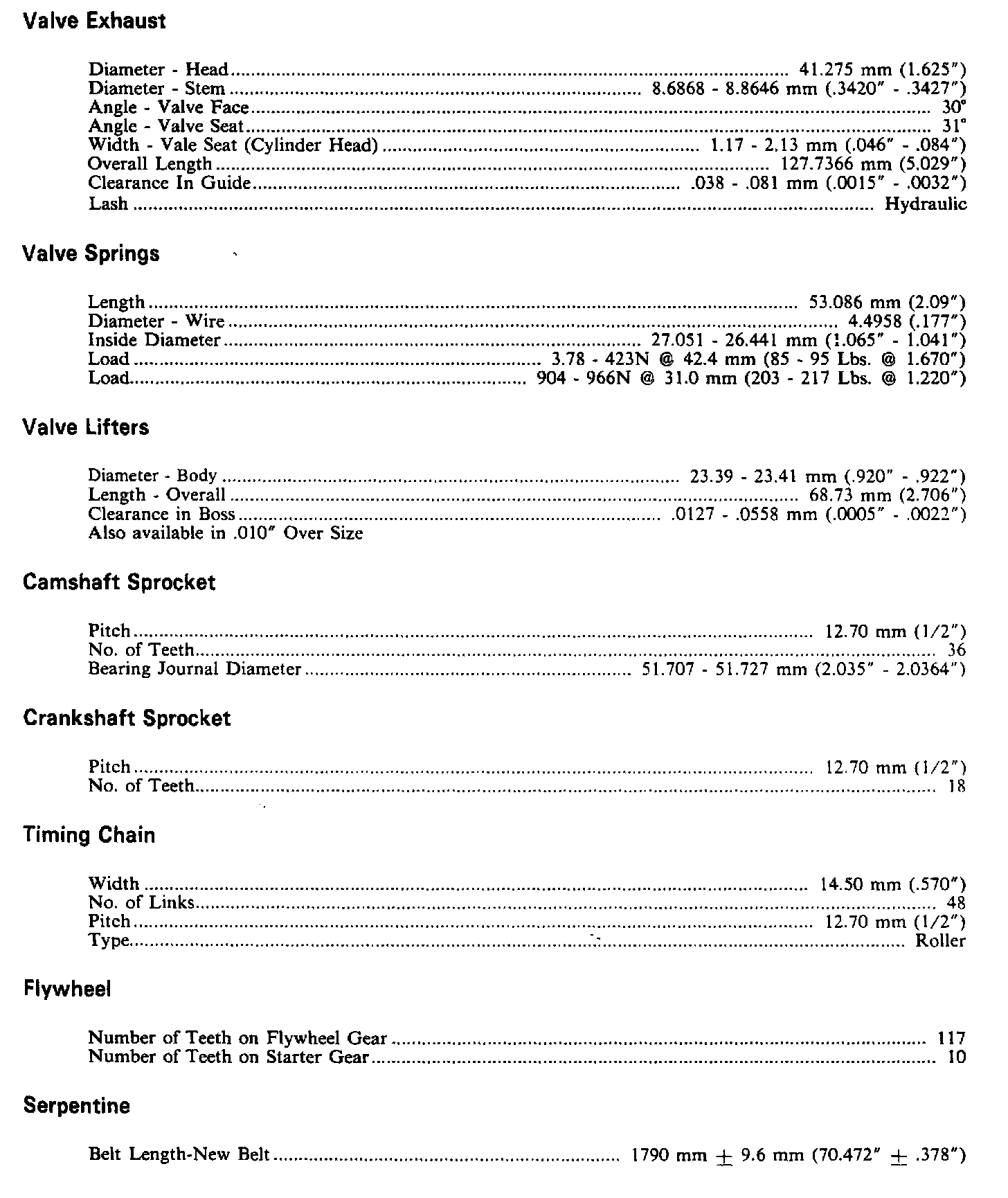

Continued Engine Specifications:







Intake Manifold Sequence:





Cylinder Head Sequence:
