Compressor Clutch: Testing and Inspection

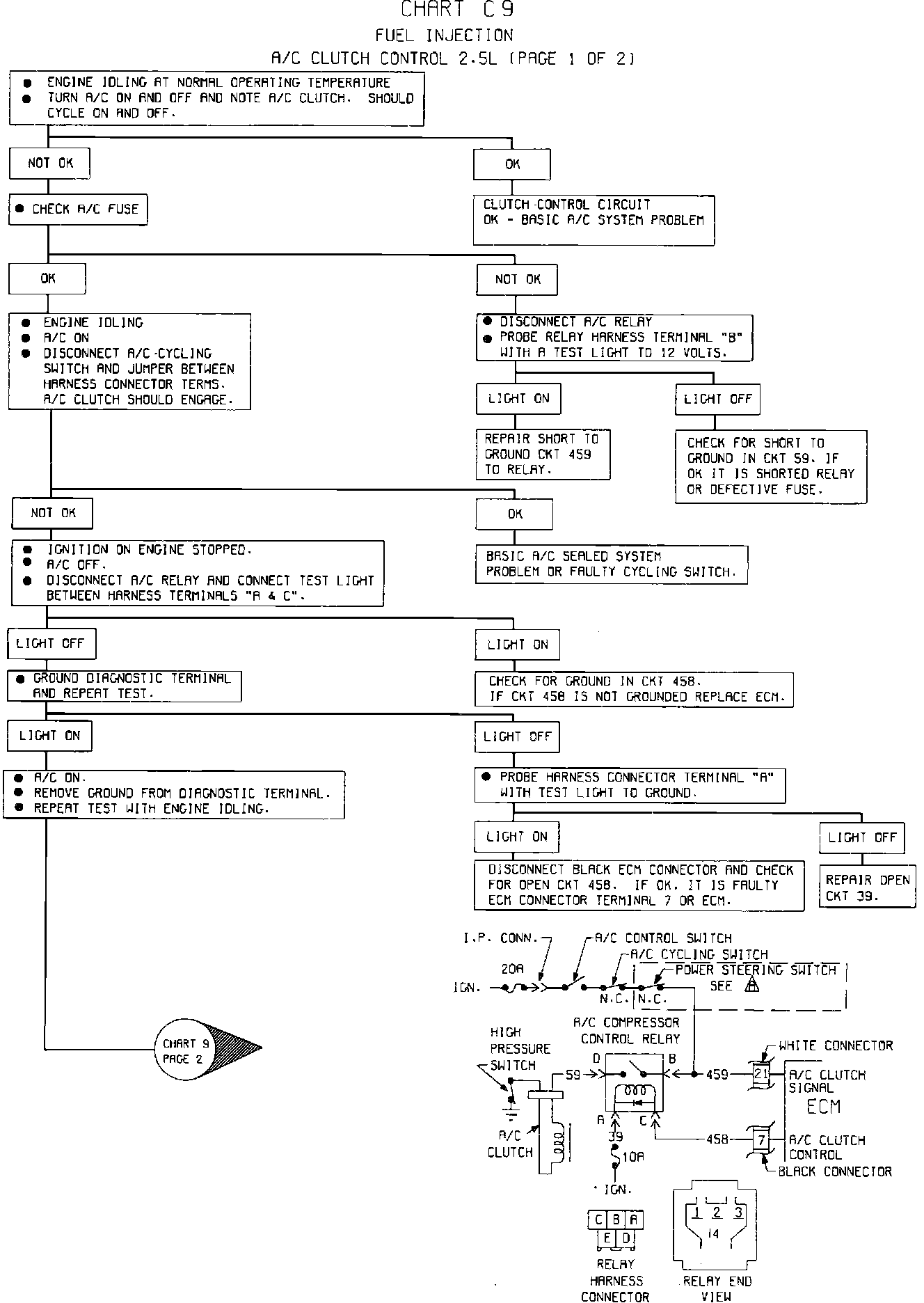

Fig. 34 Chart C-9 A/C Clutch Control 1982-83 Part 1 Of 2:

Part 1 Of 2

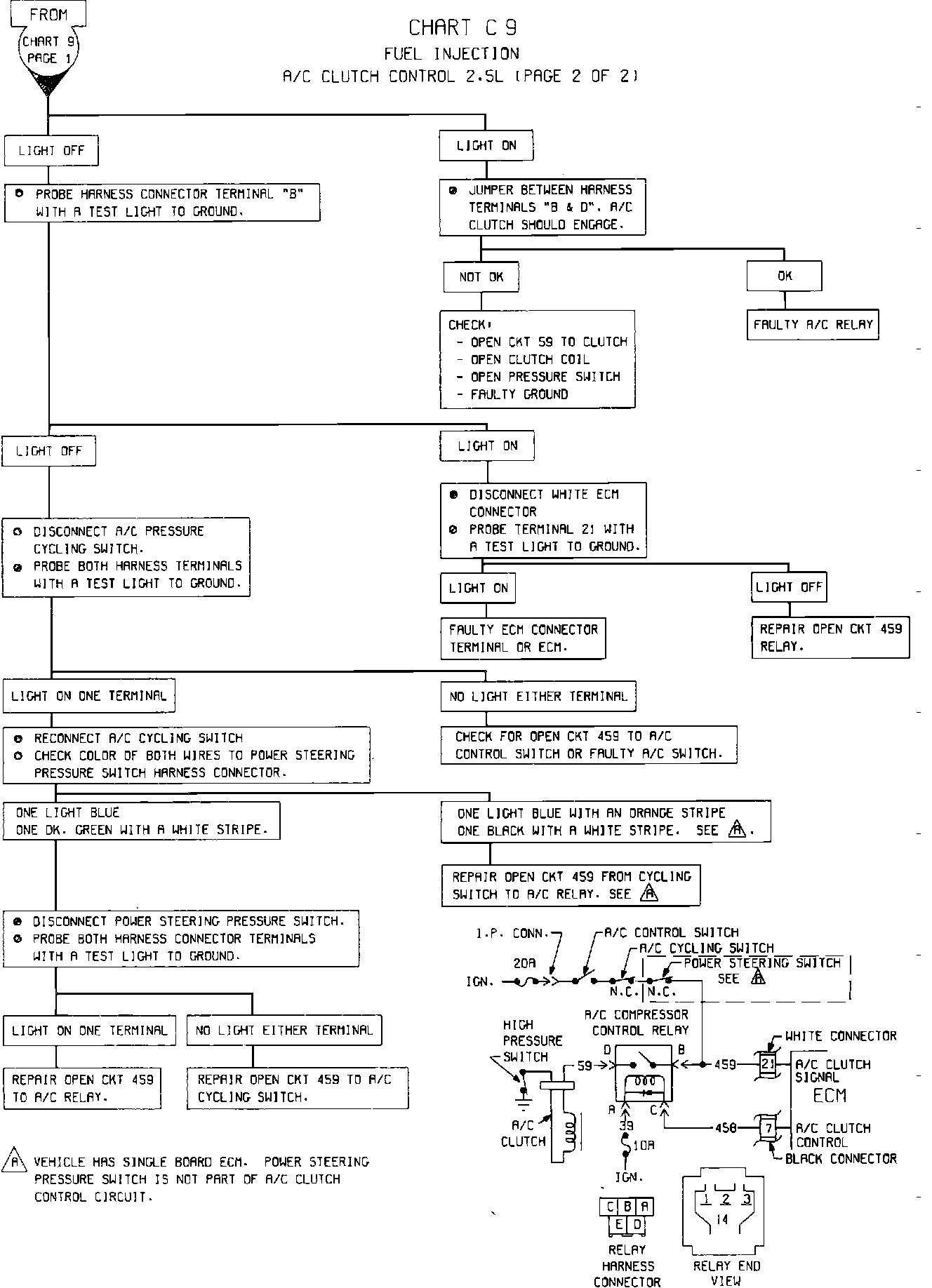

Fig. 35 Chart C-9 A/C Clutch Control 1982-83 Part 2 Of 2:

Part 2 Of 2
