Control Module: Locations

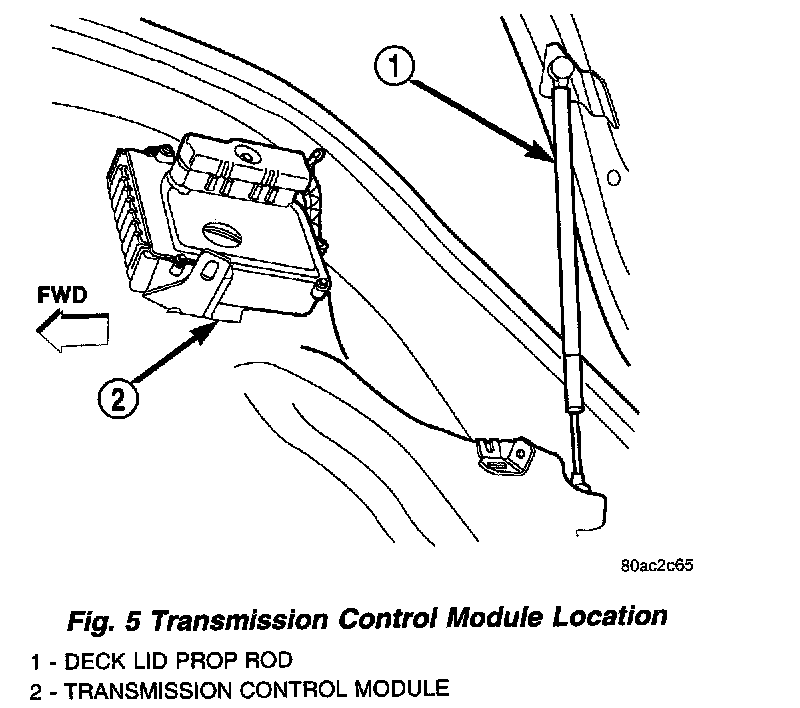

Fig. 5 Transmission Control Module Location:

The transmission control module is located in the trunk compartment on the right side of the vehicle.
