LEMON Manuals: Even more car manuals for everyone
Home >> Plymouth >> 2000 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

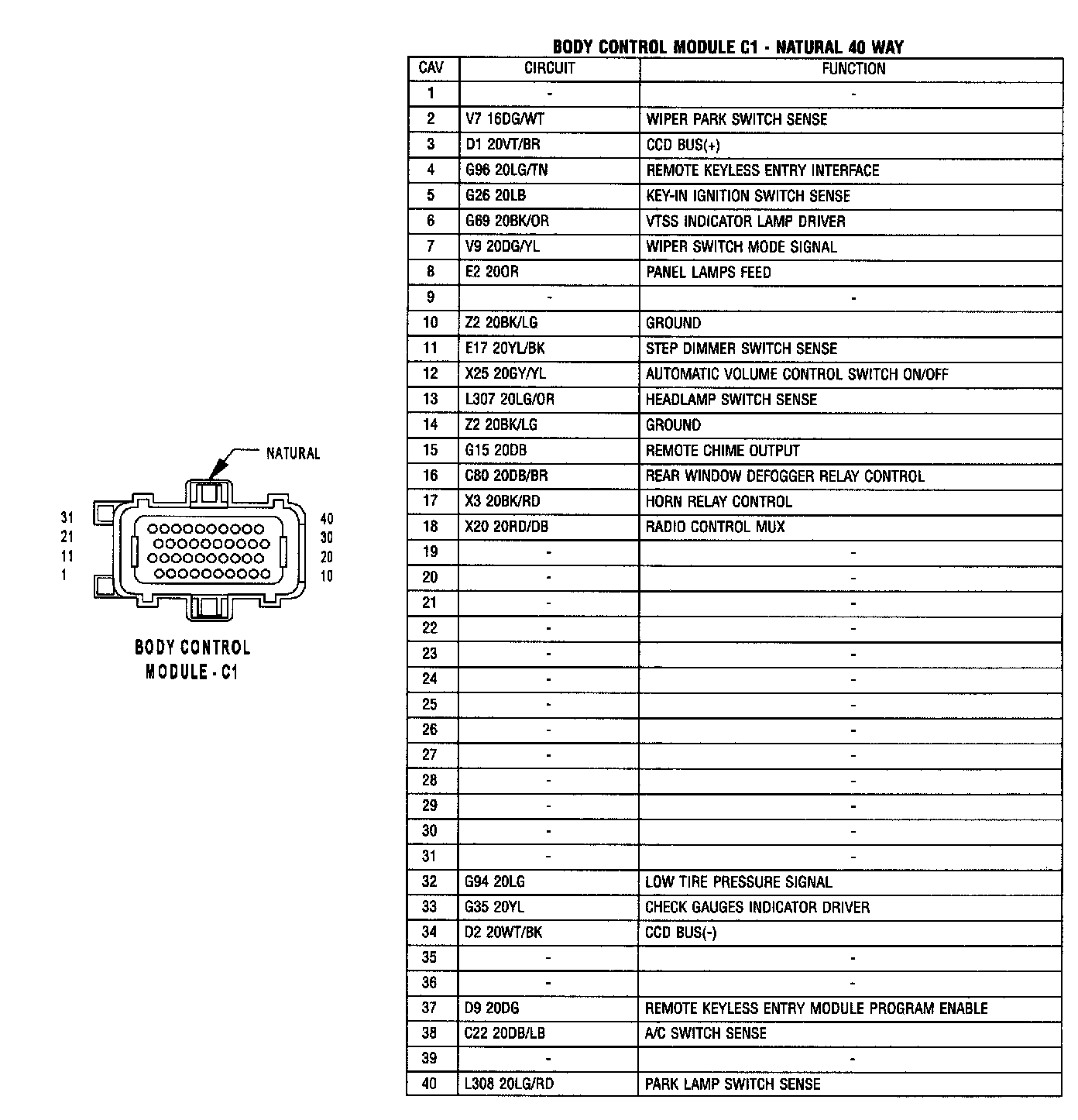

Body Control Module-C1:

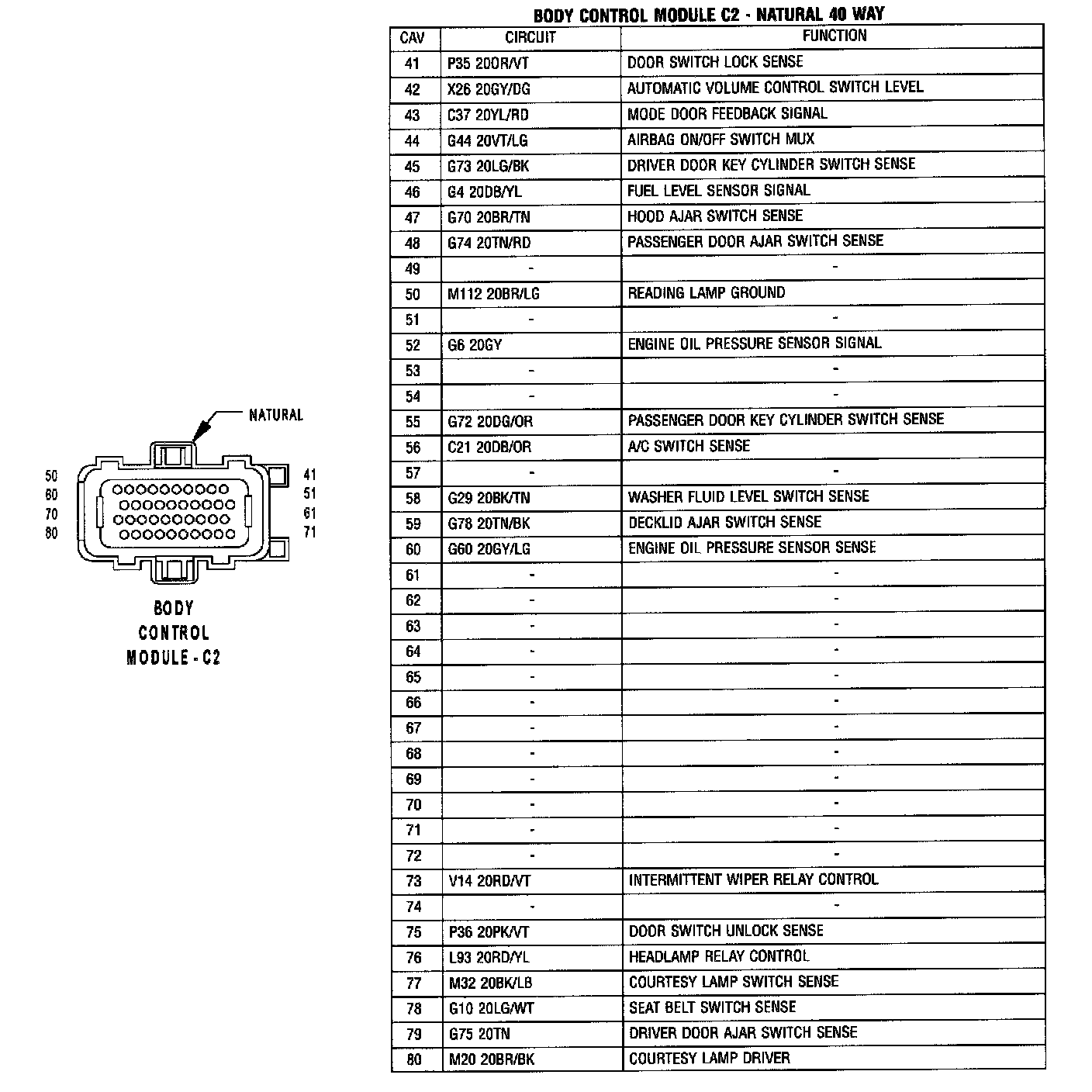

Body Control Module-C2:

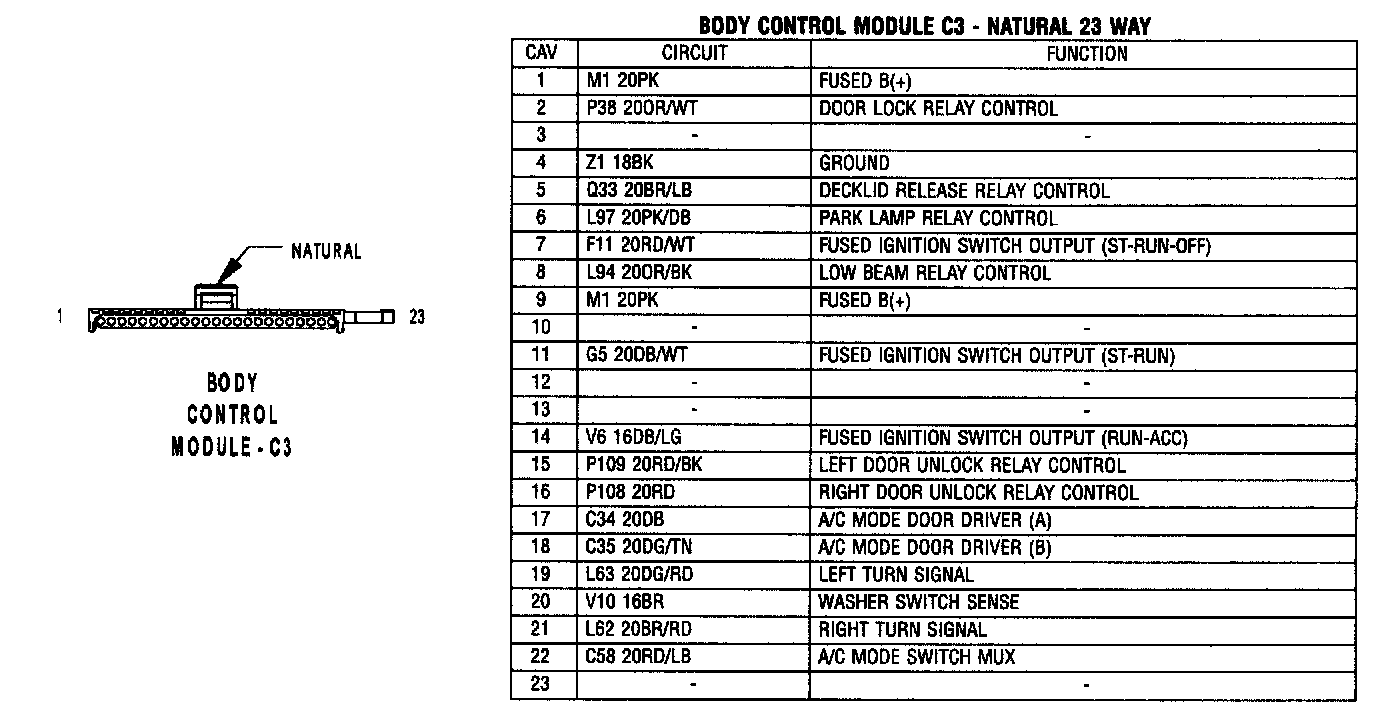

Body Control Module-C3:
