LEMON Manuals
: Even more car manuals for everyone
Home
>>
Plymouth
>>
1999
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block

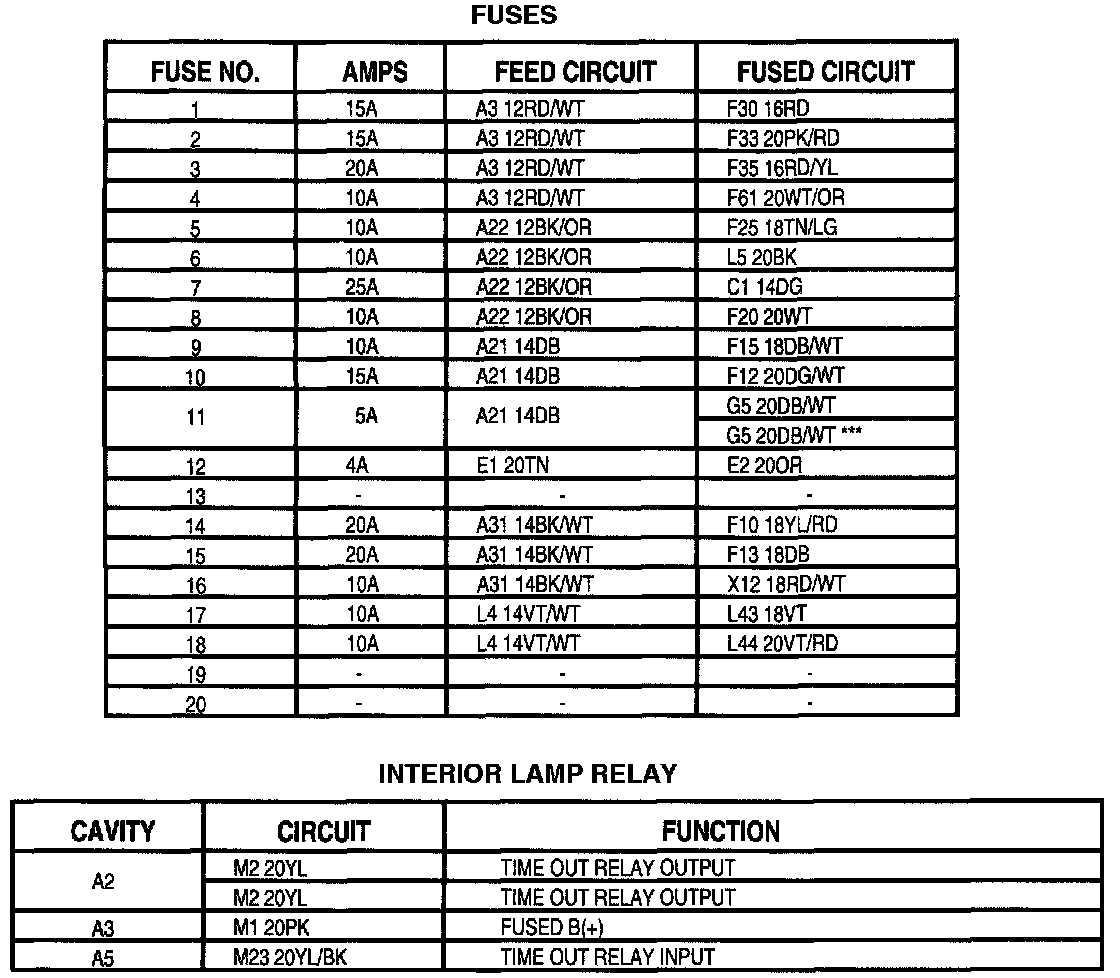

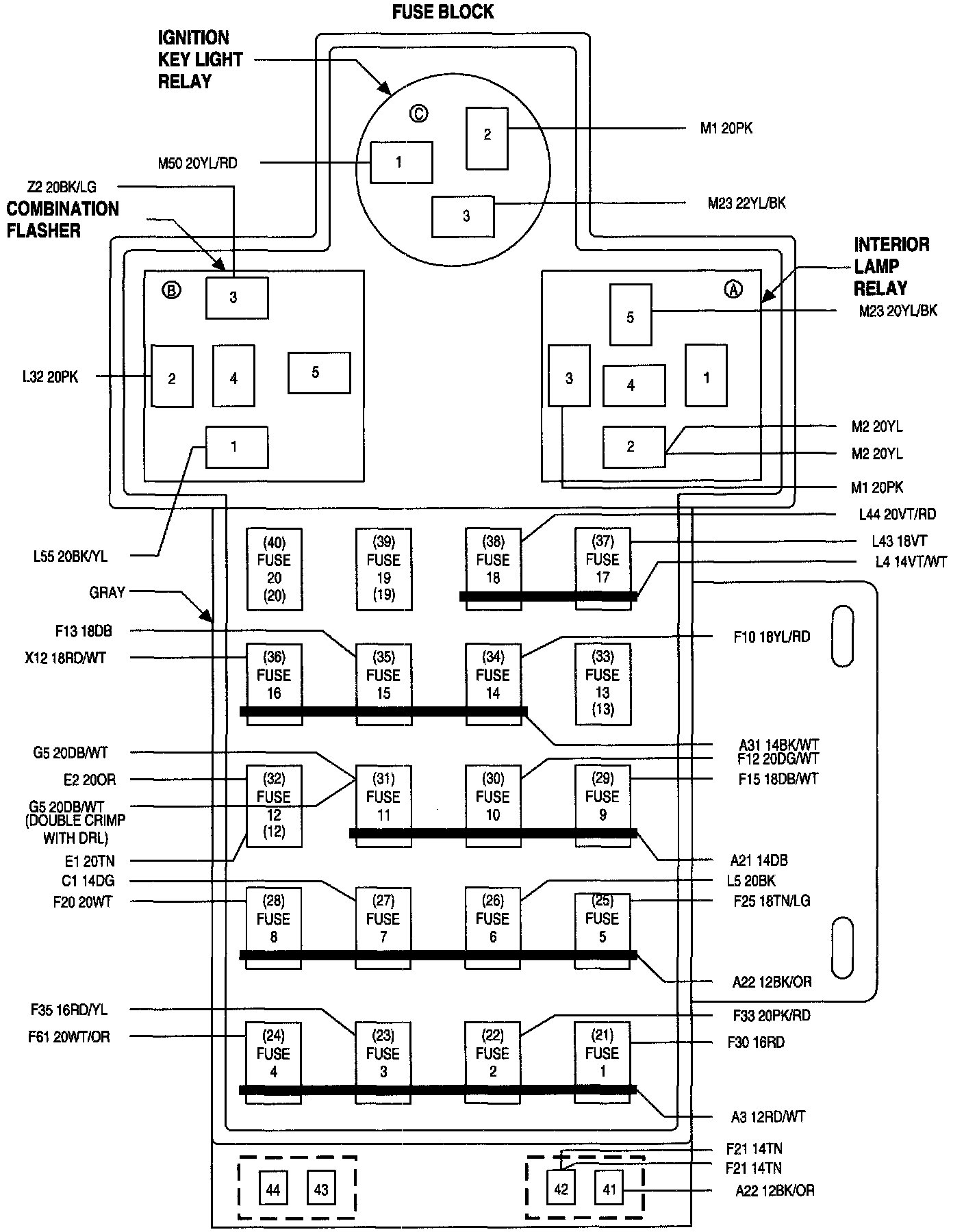

Fuse Block
Fuse Block System -- Sheet 8w-11-2:
Fuse Block System -- Sheet 8w-11-3:
Fuse Block System -- Sheet 8w-11-4:
