Power Distribution

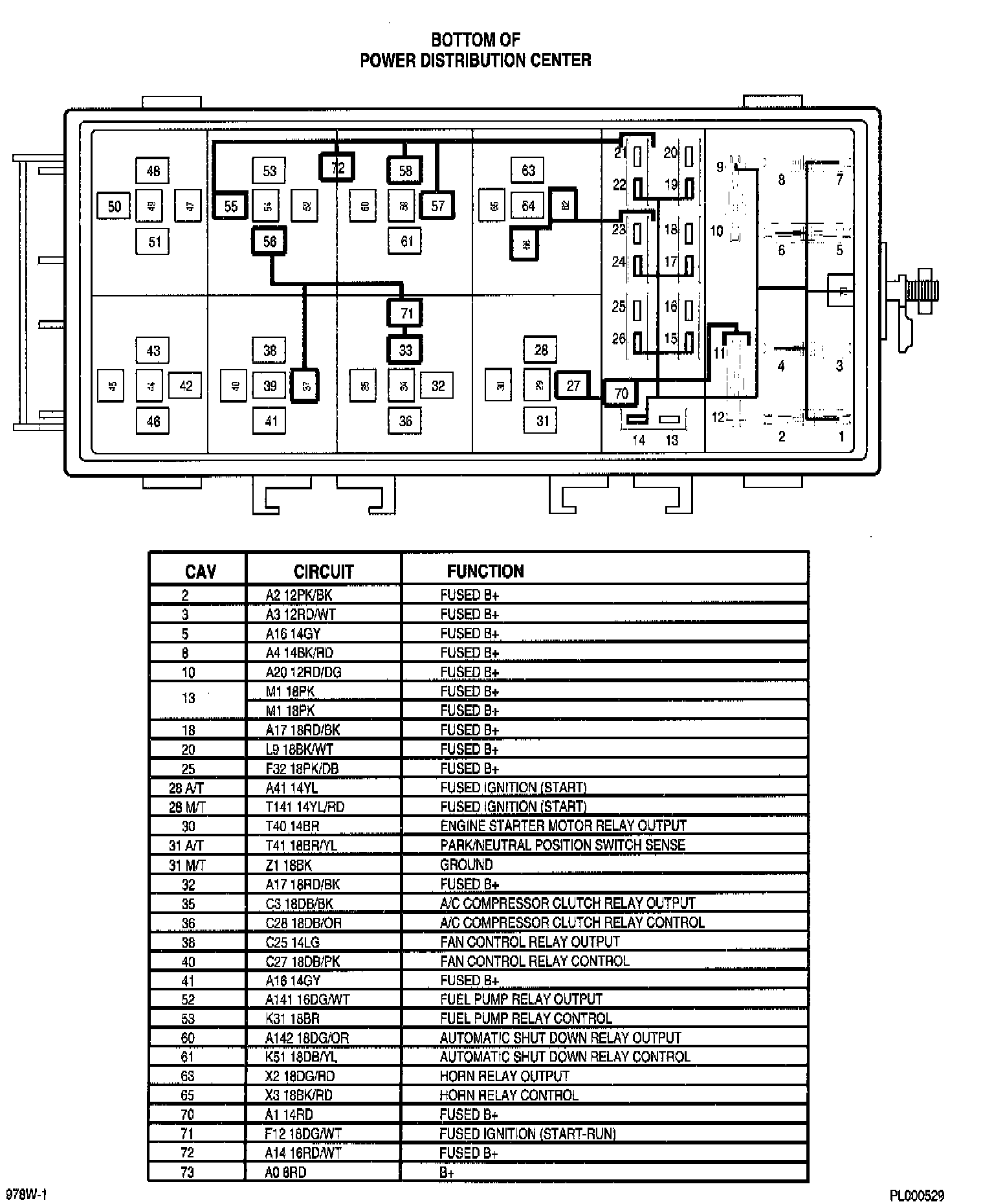

Power Distribution Center (Bottom):

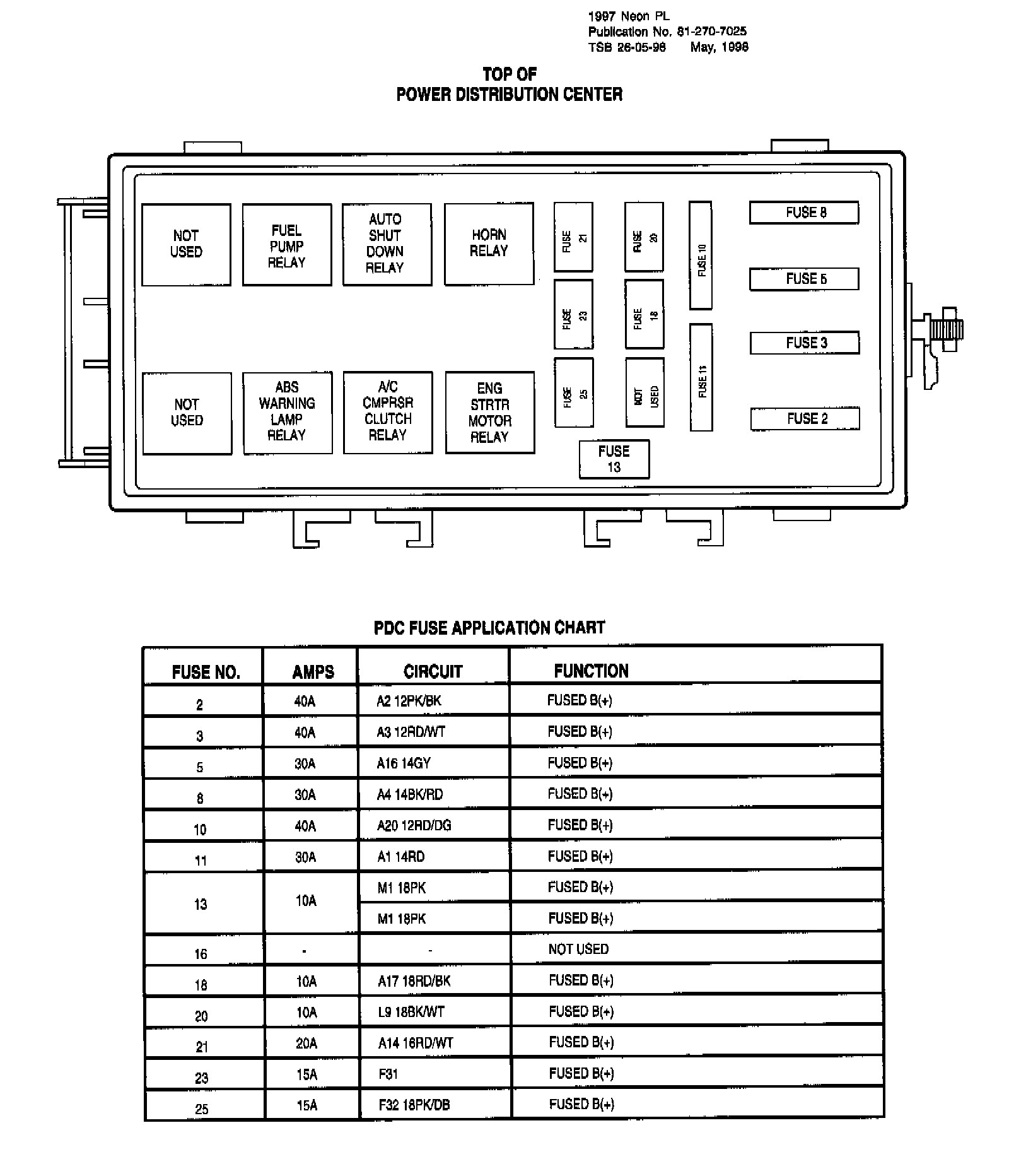

Power Distribution Center (Top):






NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
