Headlamp Control Module: Service and Repair

REMOVAL
1. Release hood latch and open hood.
2. From behind bumper fascia, remove bolt holding outboard end of module to fender and closure panel.
3. Loosen bolts holding inboard end of module to radiator closure panel and remove bolt to grille.

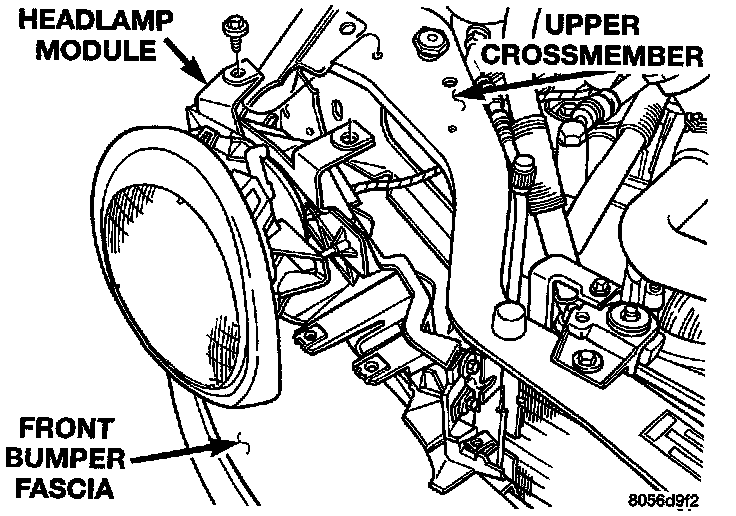

Headlamp Module:

4. Remove bolts attaching top of module to upper crossmember.
5. Disconnect wire connector from headlamp and parking lamp sockets.
6. Remove headlamp module from vehicle.

INSTALLATION
- For installation, reverse the above procedures.
