Transmission Control Systems

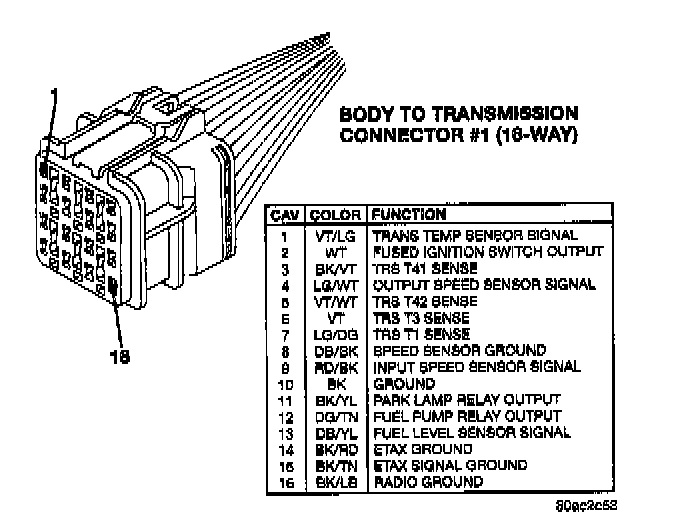

Body To Transmission Connector #1 (16-Way):

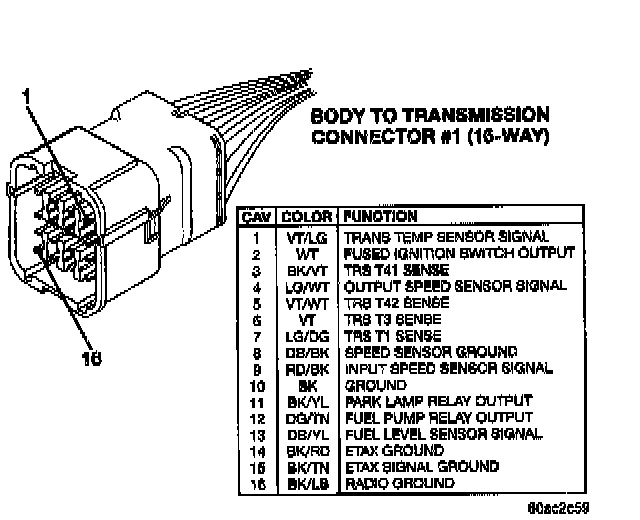

Body To Transmission Connector #1 (16-Way):

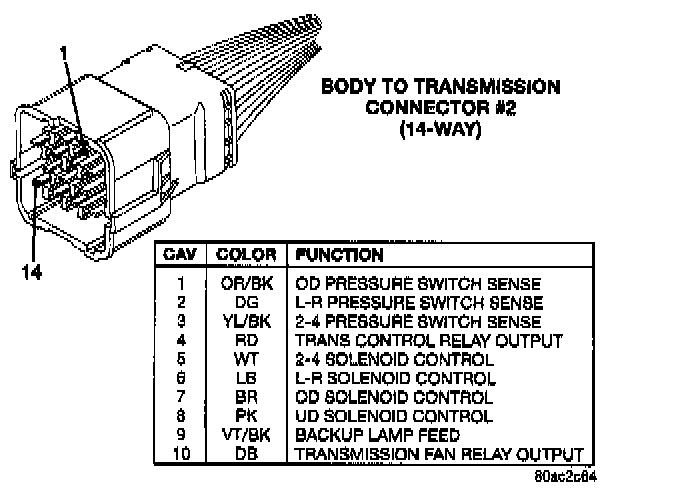

Body To Transmission Connector #2 (14-Way):

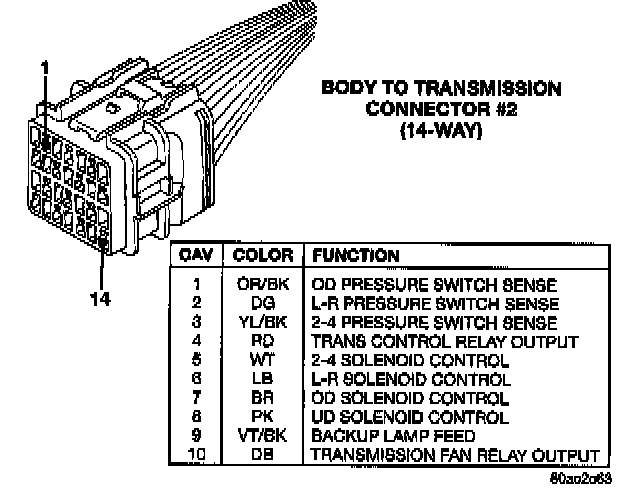

Body To Transmission Connectors #2 (14-Way):





Body to Transmission Inline Connectors

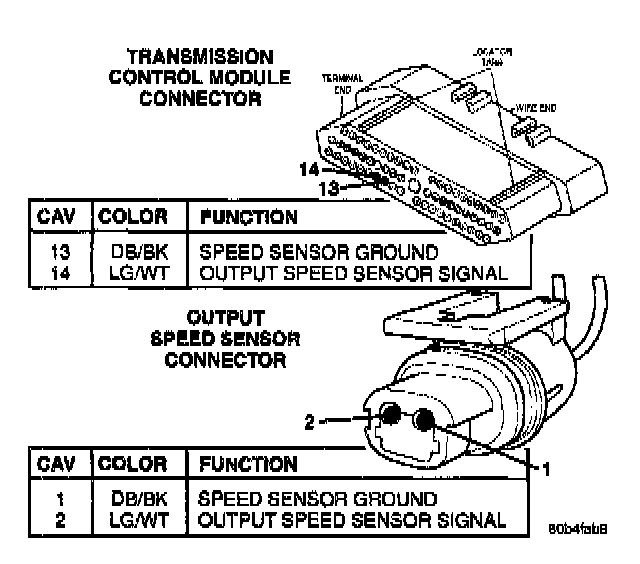

Sensors:

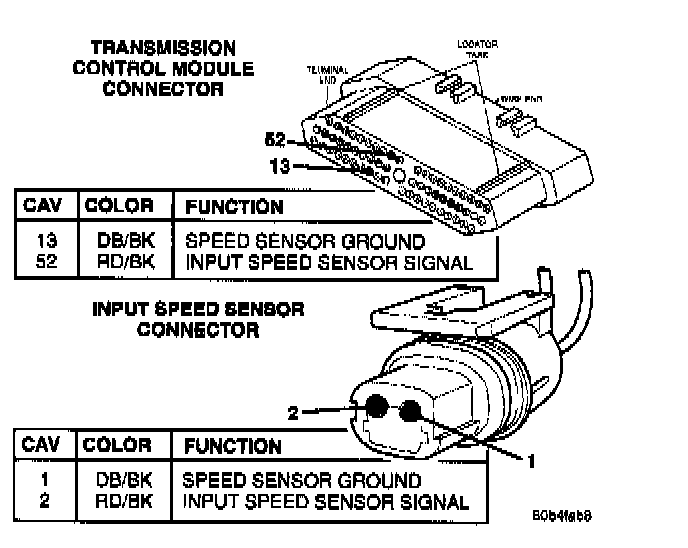

Sensors:

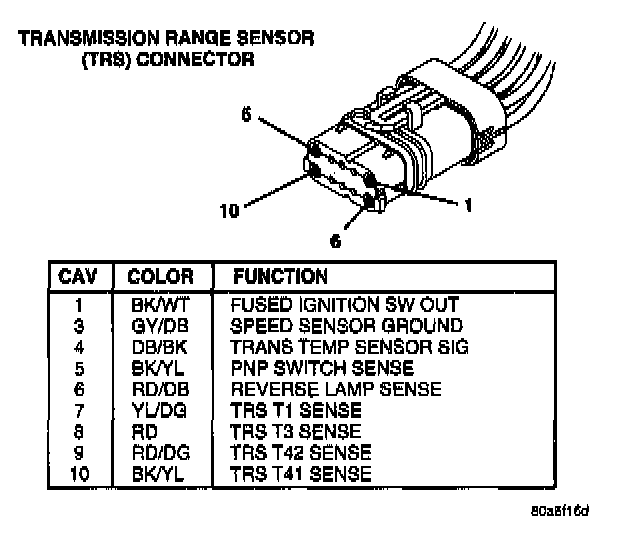

Transmission Range Sensor (TRS) Connector:





Sensors
