Home >> Plymouth >> 1997 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication >> System Diagram

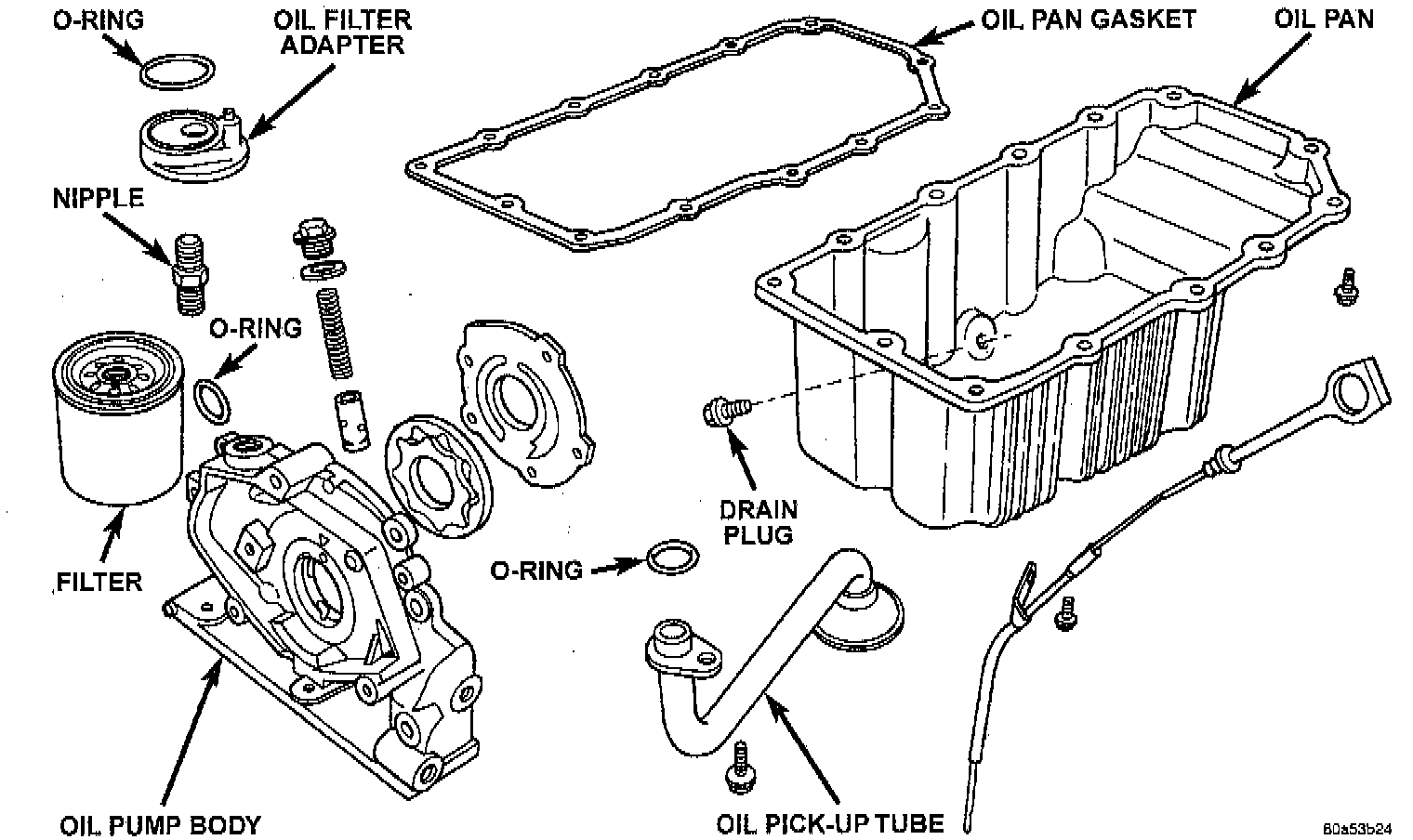

System Diagram
