Plymouth
>>
1995
>>
Neon L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>
Fuseblock Module & Relay Bank
Fuseblock Module & Relay Bank

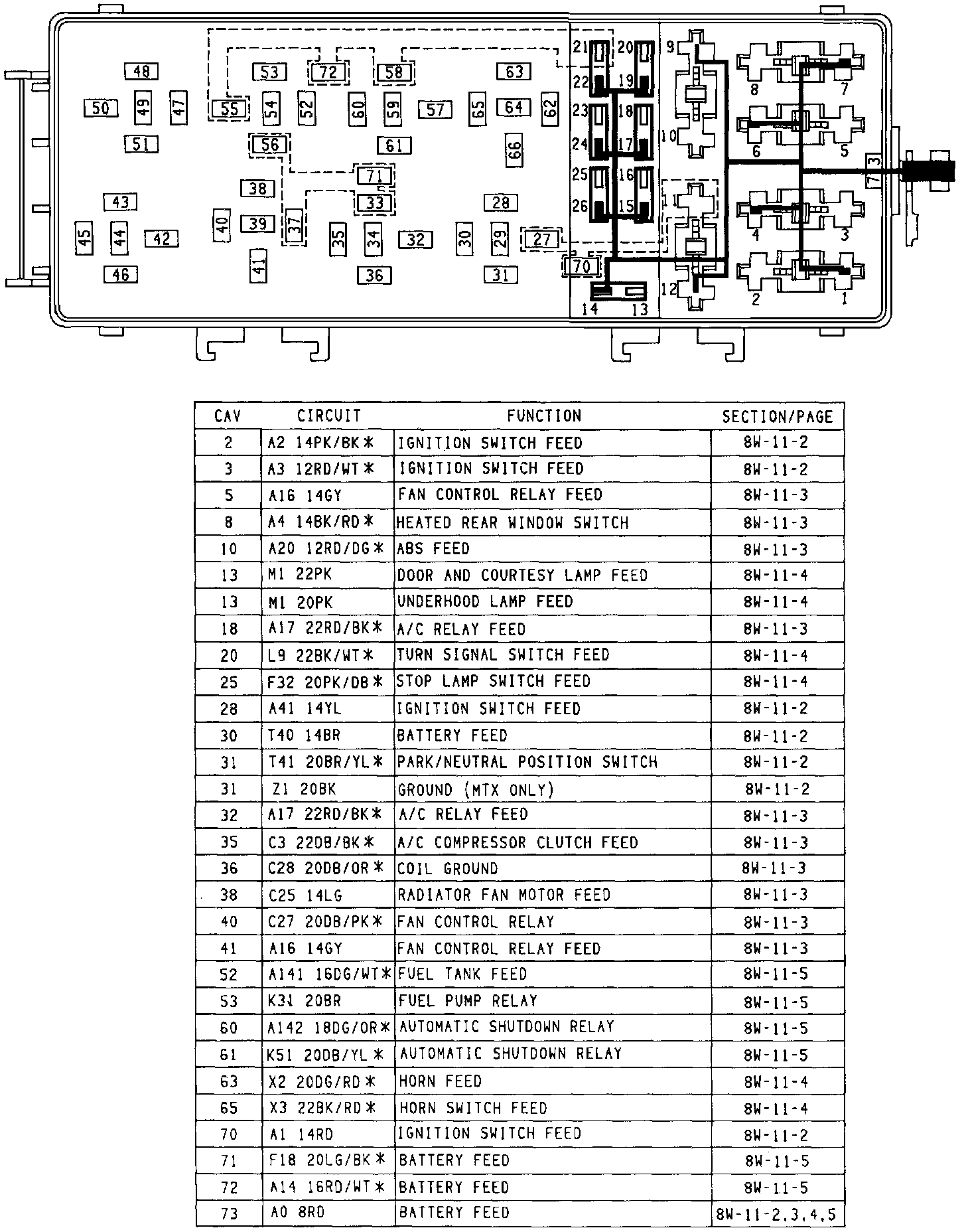

Power Distribution Center Front View:
