Plymouth
>>
1994
>>
Sundance L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Distributor
>>
Diagrams
>>
Connector Views
Connector Views

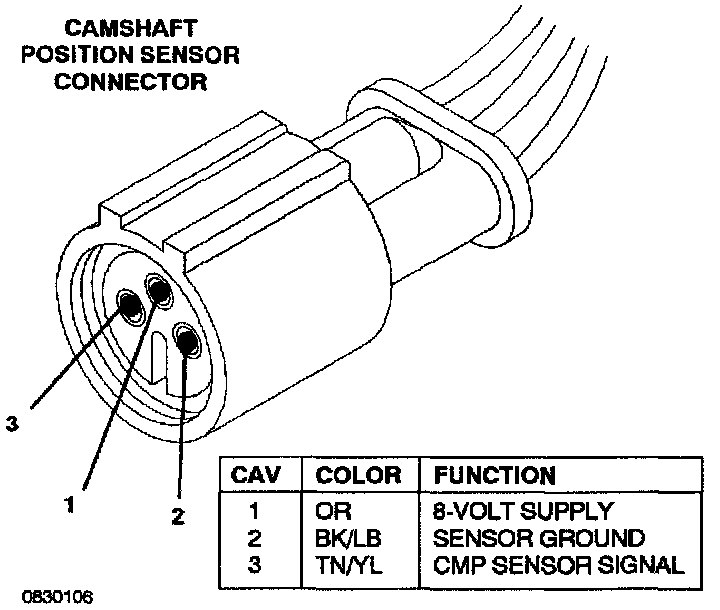

Camshaft Position Sensor Connector:
