Home >> Plymouth >> 1991 >> Sundance L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column >> Multi-Function Switch

Multi-Function Switch

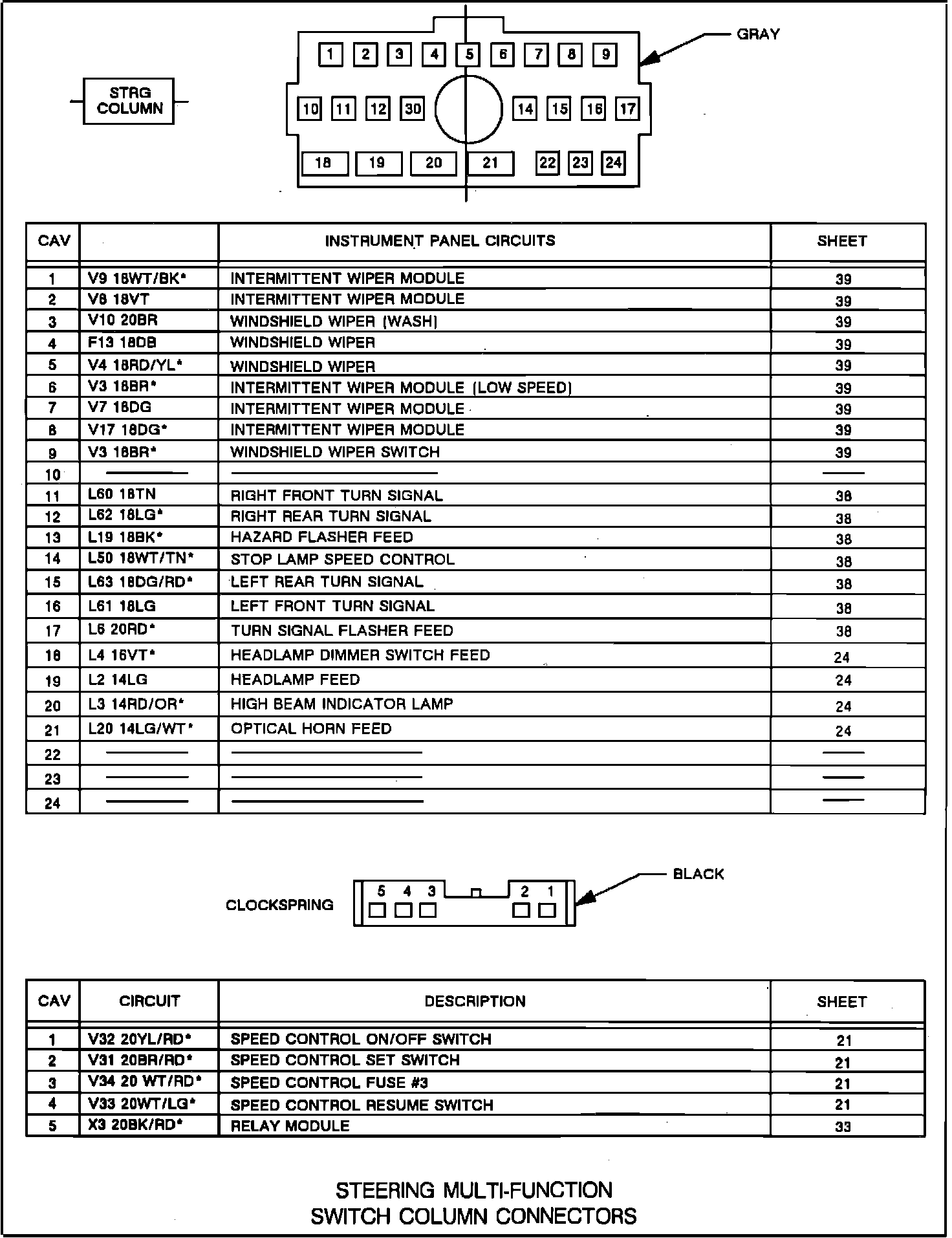

Steering Multi-Function Switch Column Connectors:
