Single Board Engine Controller (SBEC)

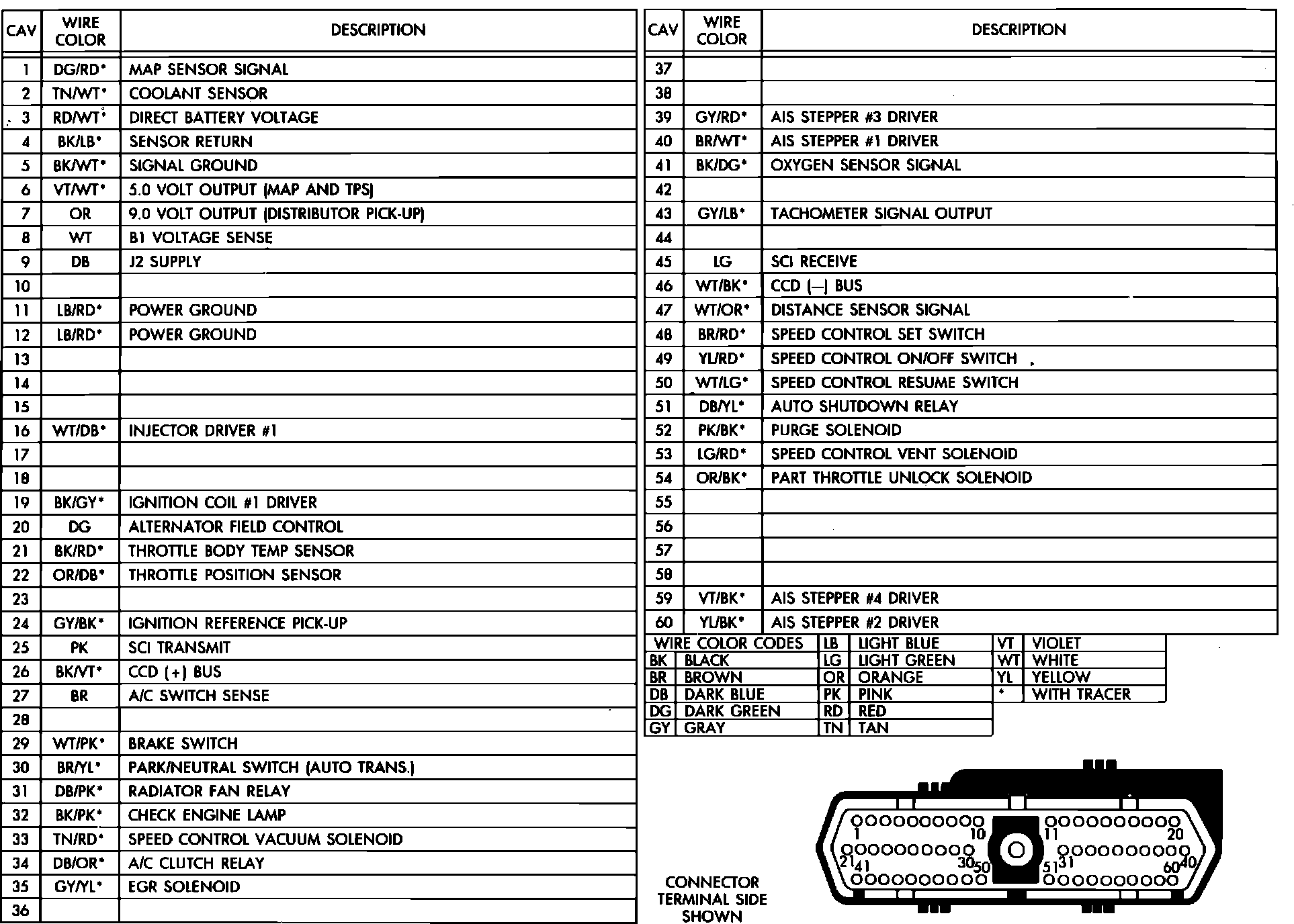

Single Board Engine Controller Connector - Less Turbo:

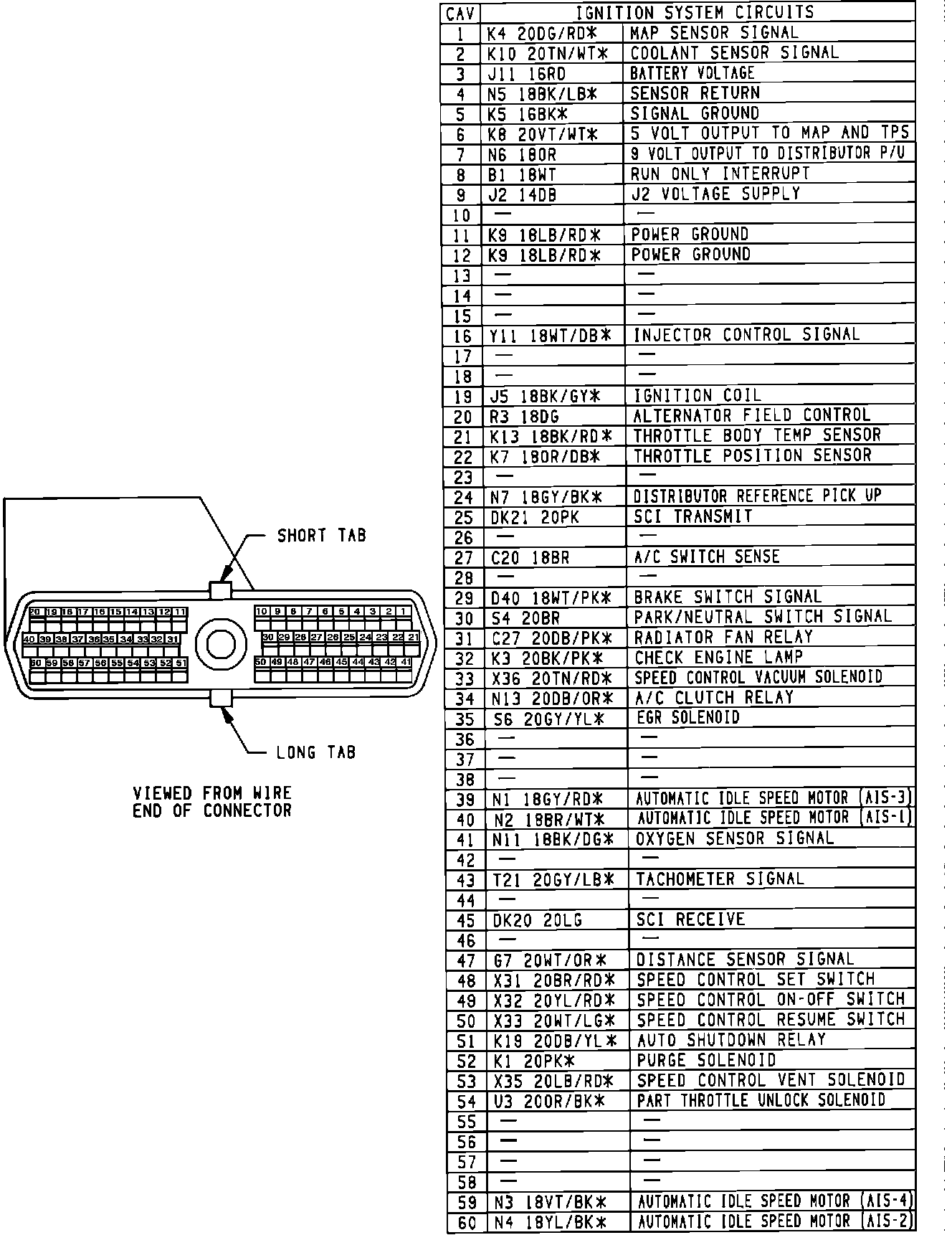

60-Way Connector Pinnout Identification:
