Home >> Plymouth >> 1990 >> Laser L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Control Module >> Locations

Control Module: Locations

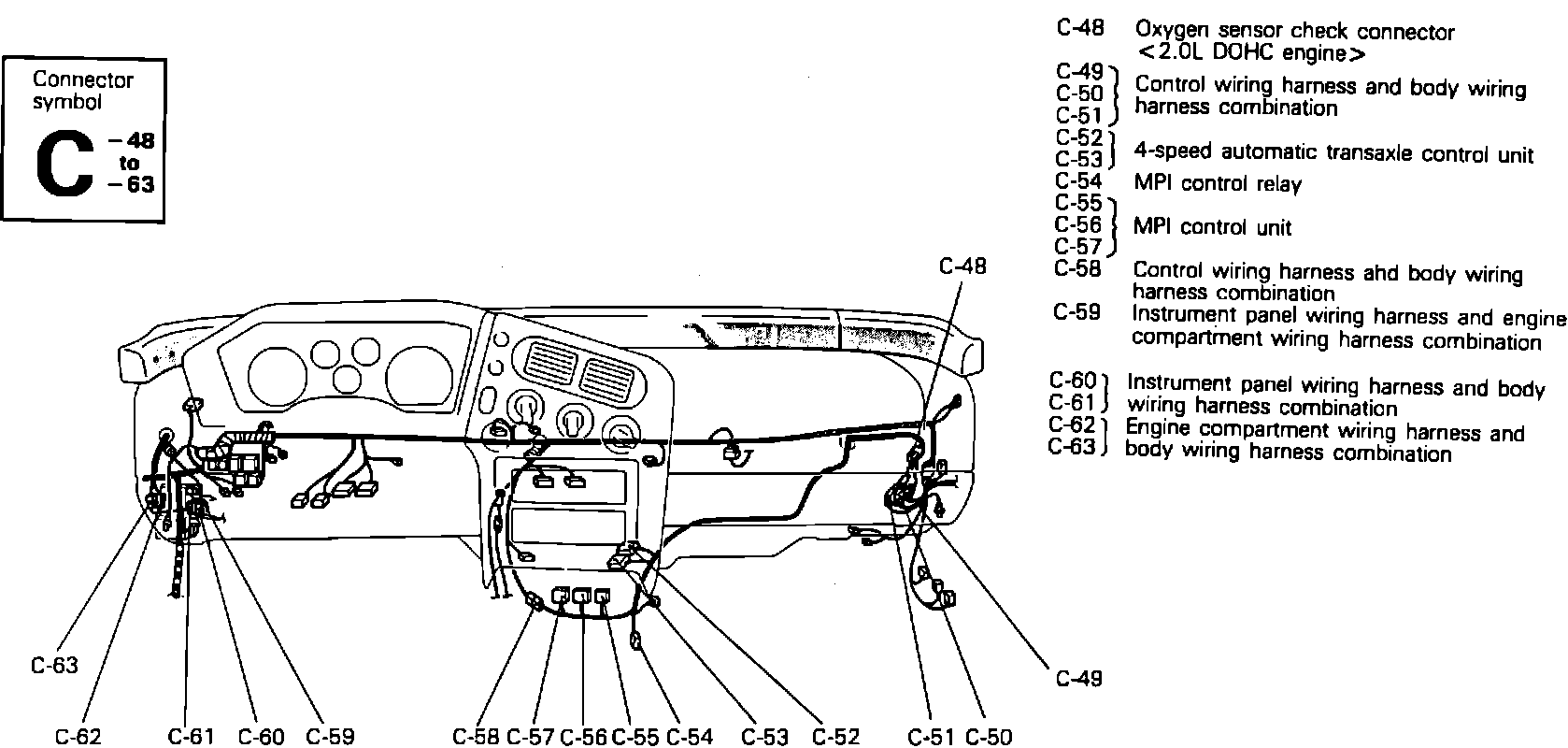

I/P Connector Locations:




RH Side Of I/P, Near Console
