Plymouth
>>
1990
>>
Laser L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

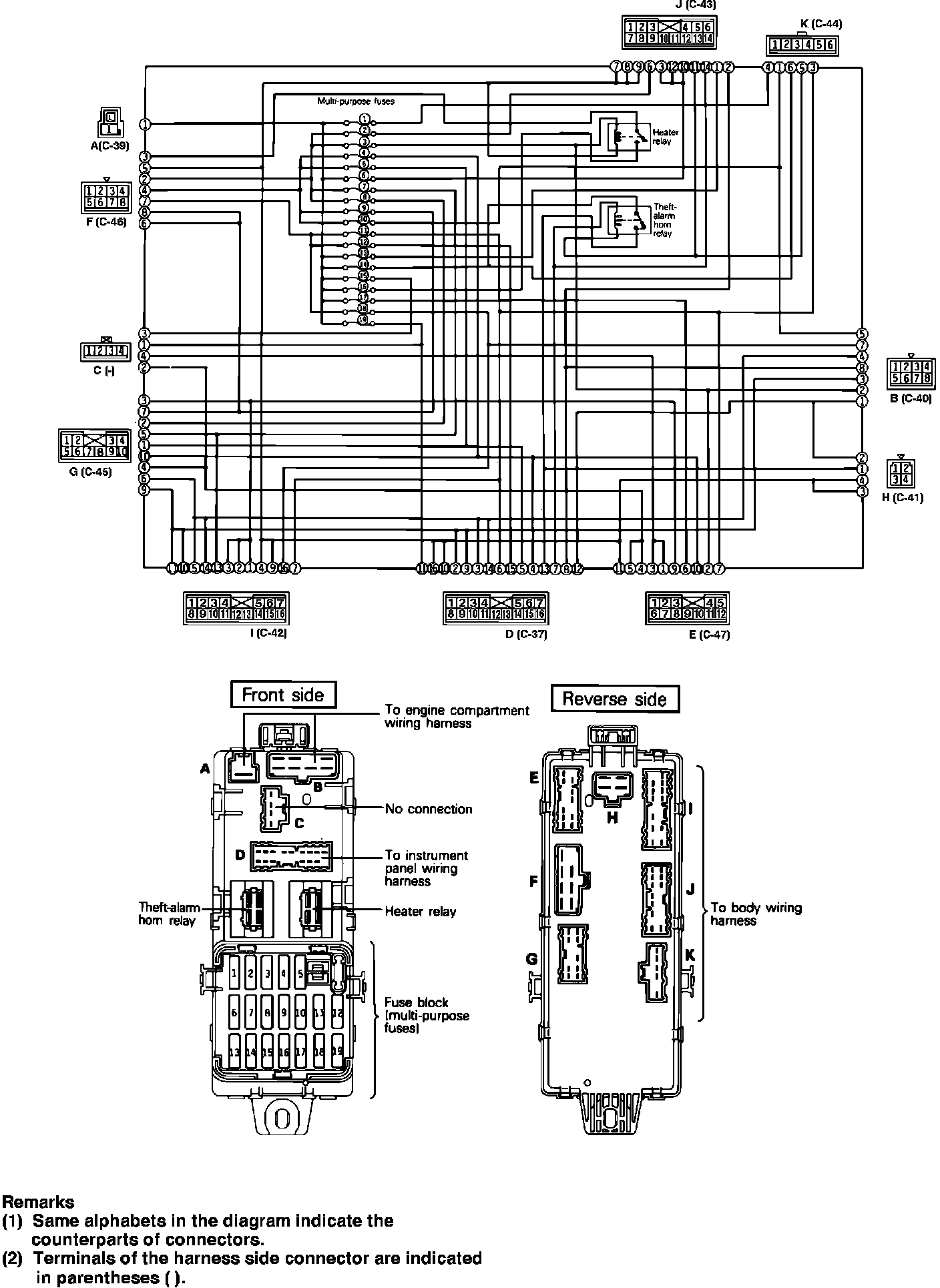

Fuse Block
Fuse Block

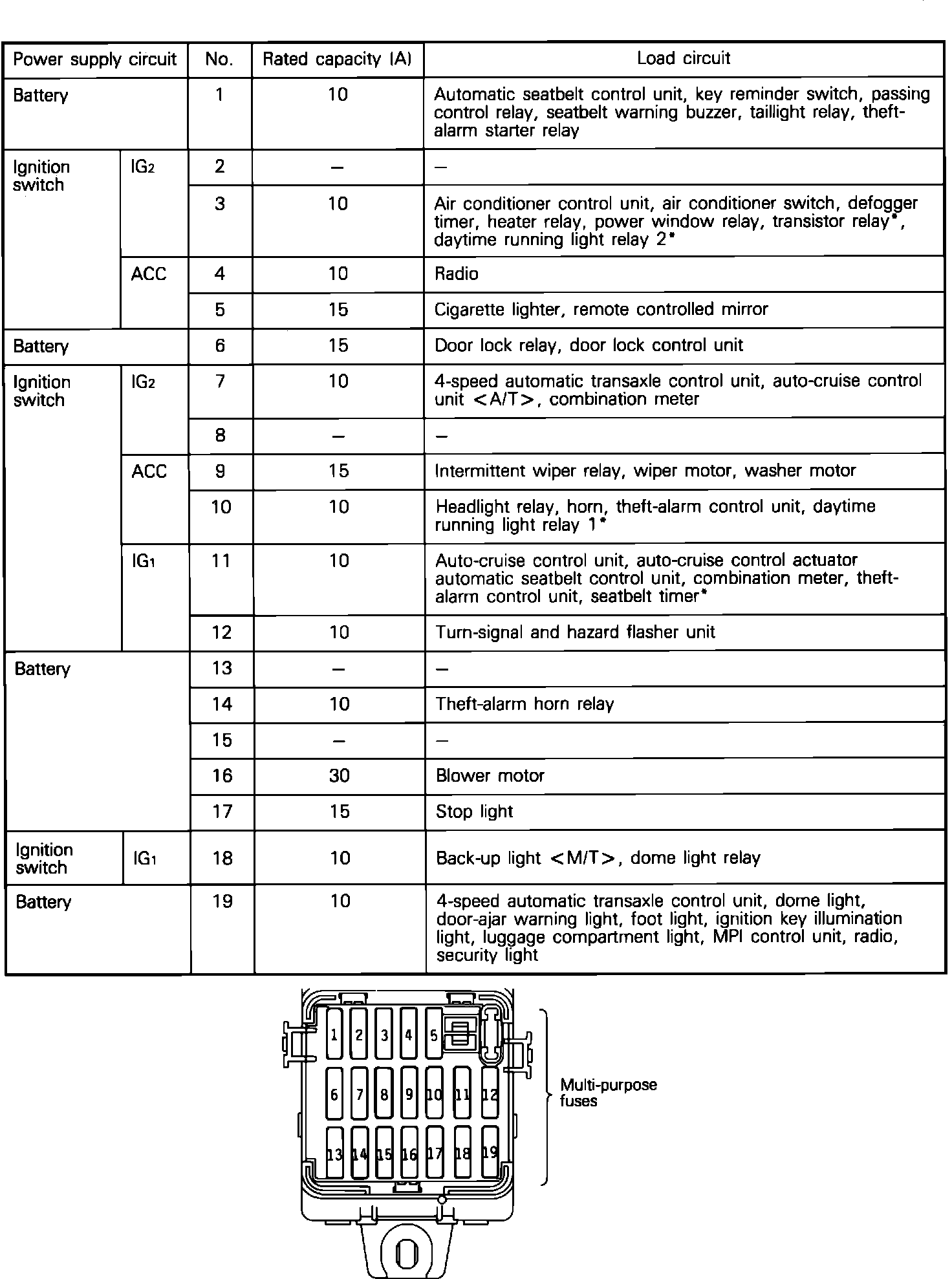

Fuse Panel Details:
Fuse Panel Details:
