Home >> Plymouth >> 1987 >> Sundance L4-135 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

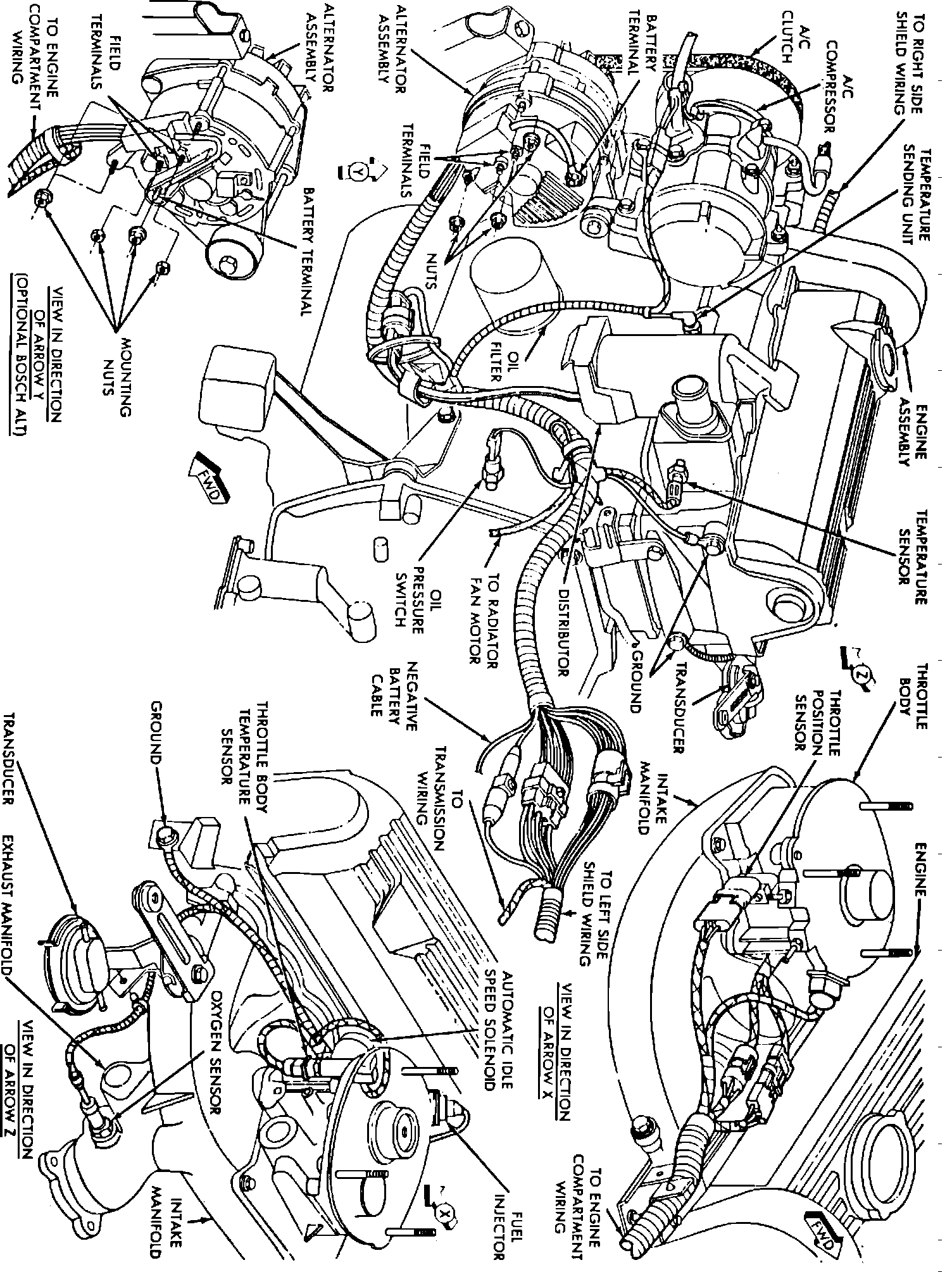

Engine electrical & related components.:




On Throttle Body Unit

Applicable to: 1987 Shadow & Sundance W/4-135 Exc. Turbo engine
