Manifold Pressure/Vacuum Sensor: Service and Repair

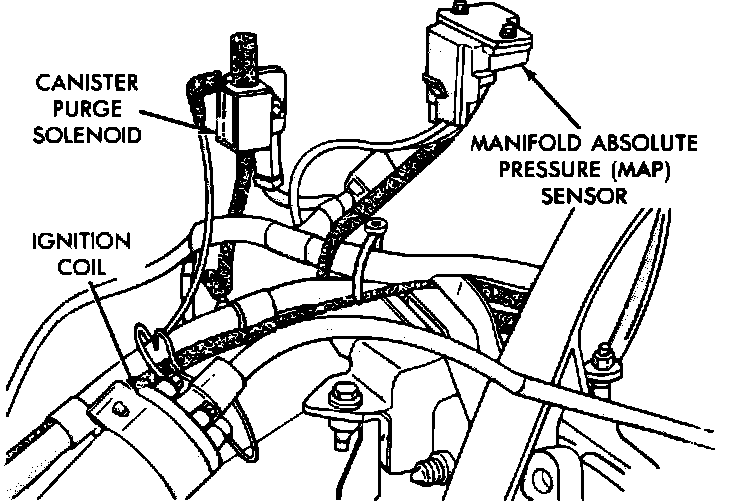

Manifold Absolute Pressure (MAP) Sensor Location:

1. Remove vacuum hose from sensor.
2. Remove sensor mounting screws and remove sensor.
3. Reverse the above procedure for installation. Check that vacuum hose is attached and sensor is correctly mounted to right shock tower.
