10 Pin Connector
10 Pin Connector

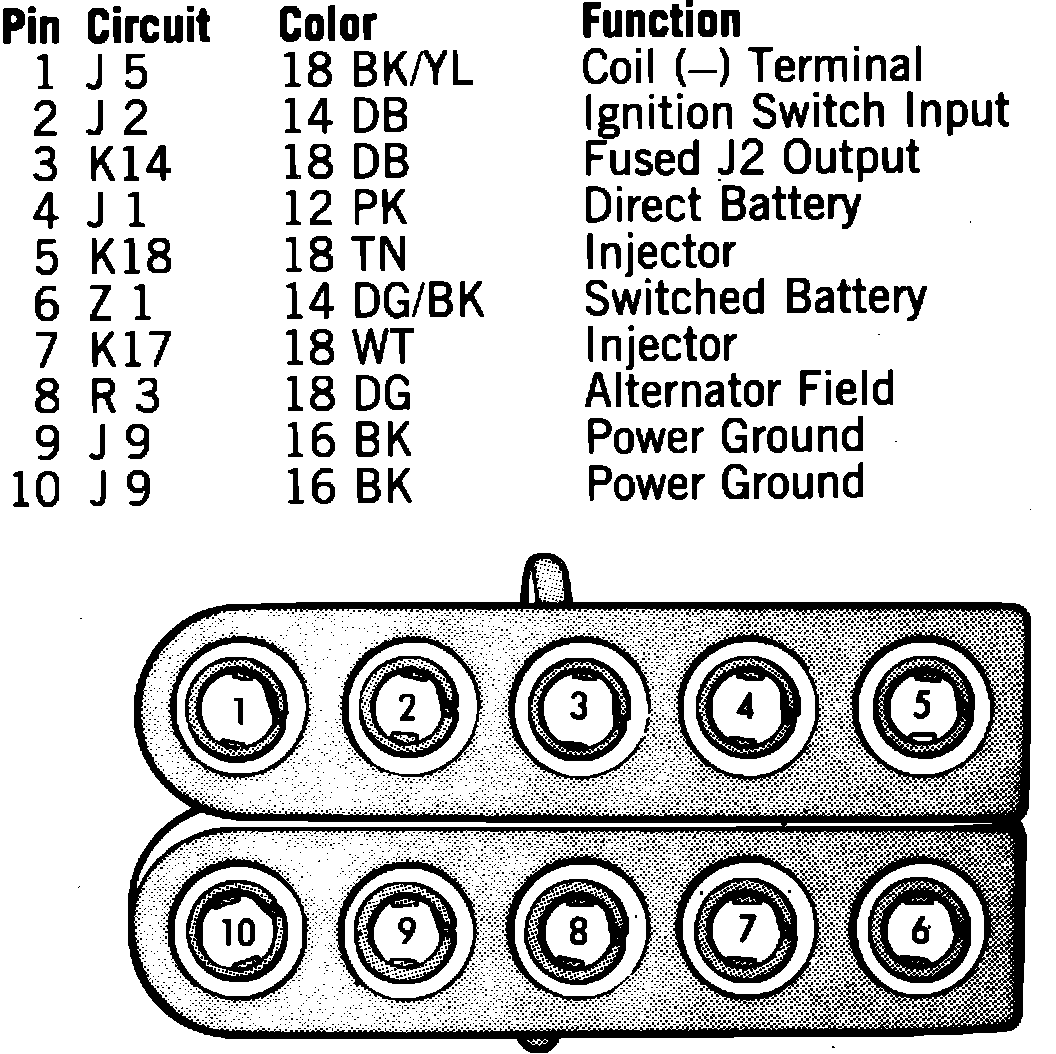

Fig. 12 Power module 10 pin connector terminal identification. 1987 models:
