Home >> Plymouth >> 1987 >> Reliant L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> System Diagram >> Logic Module Connector >> Part 2 of 2

Part 2 of 2

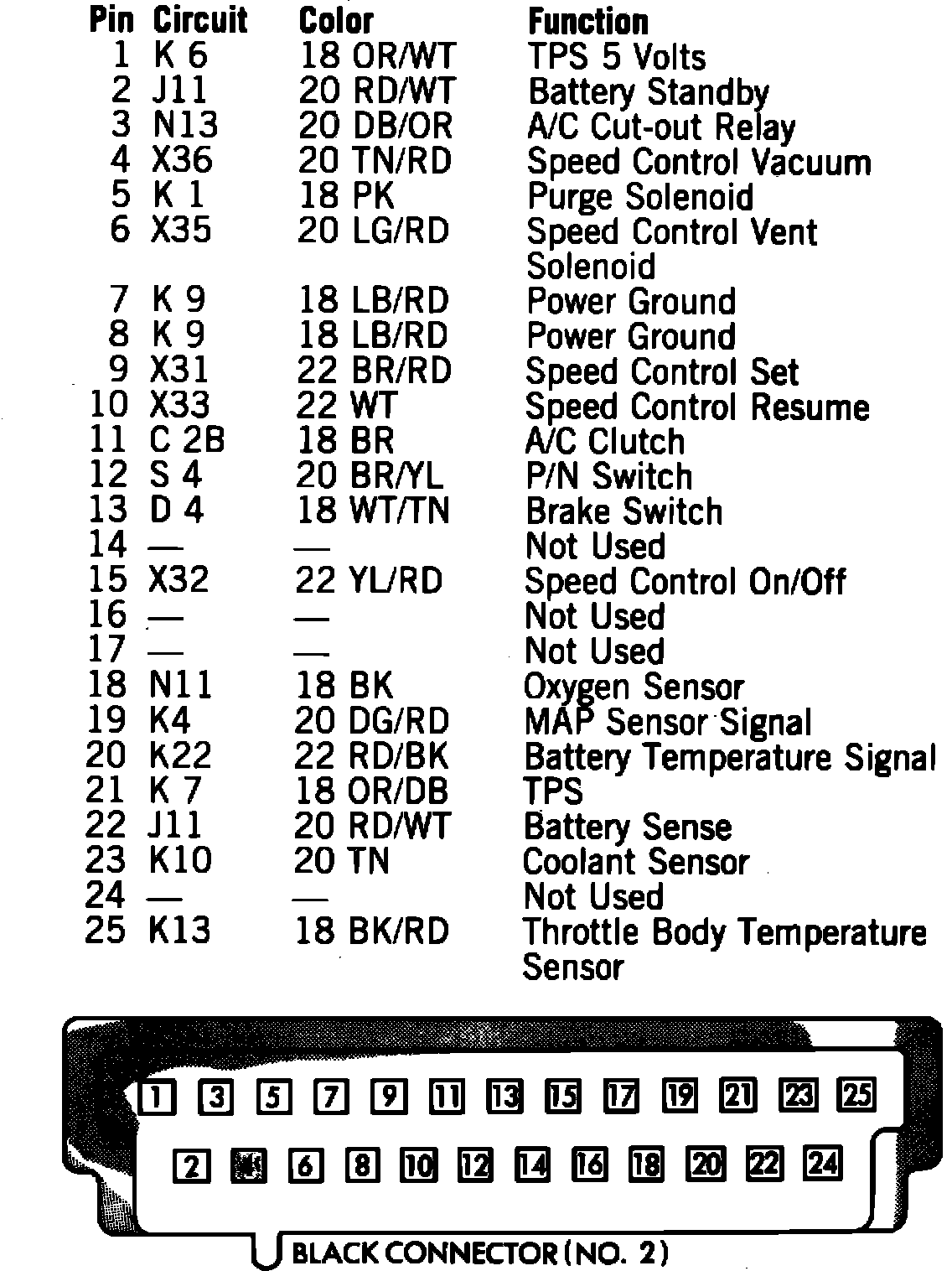

Fig. 10 Logic module black connector terminal identification. 1987 models:
