Engine Speed Sensor: Locations

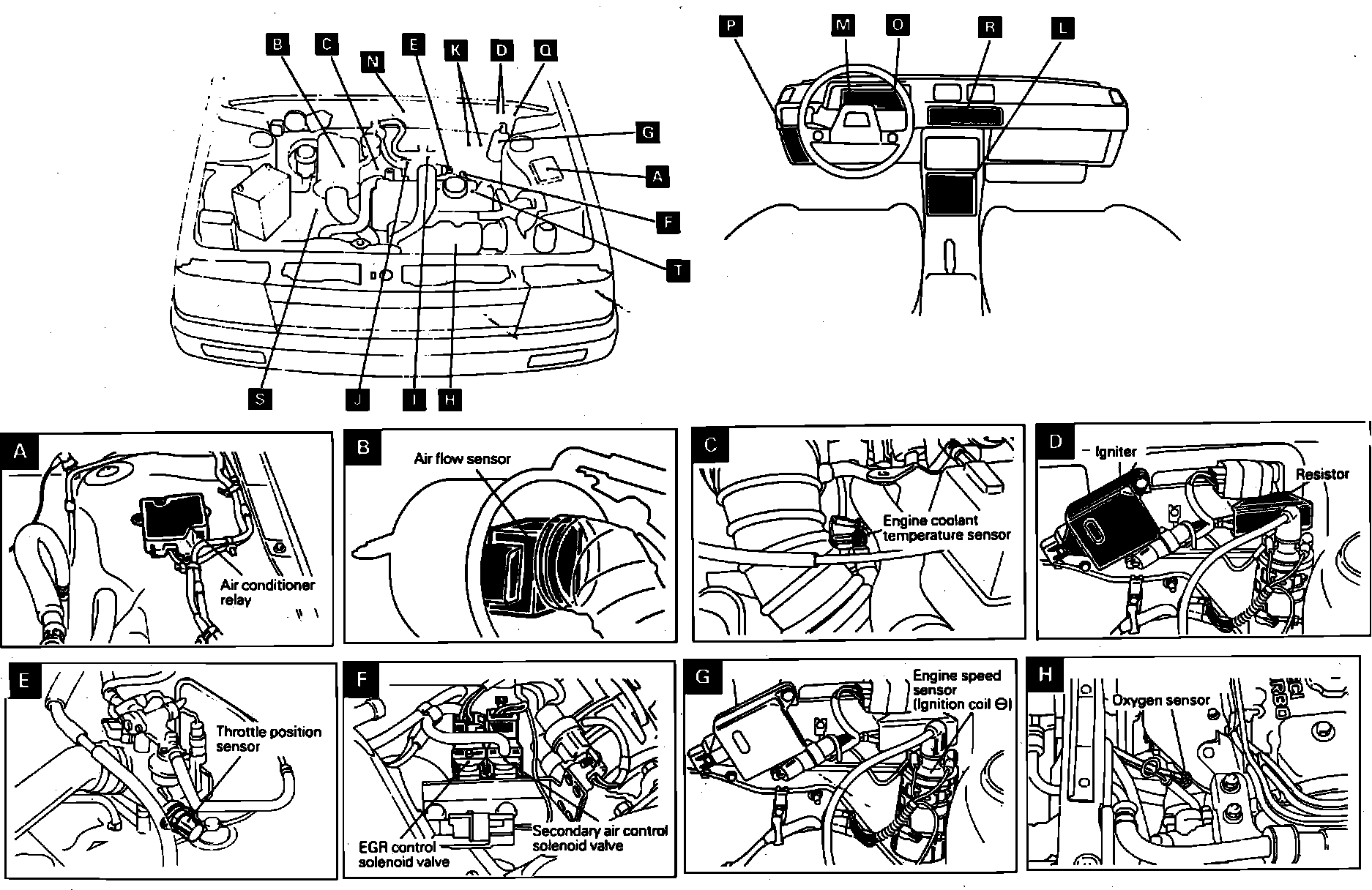

Electronic Controlled Injection System Component Location (Part 1 Of 2).:

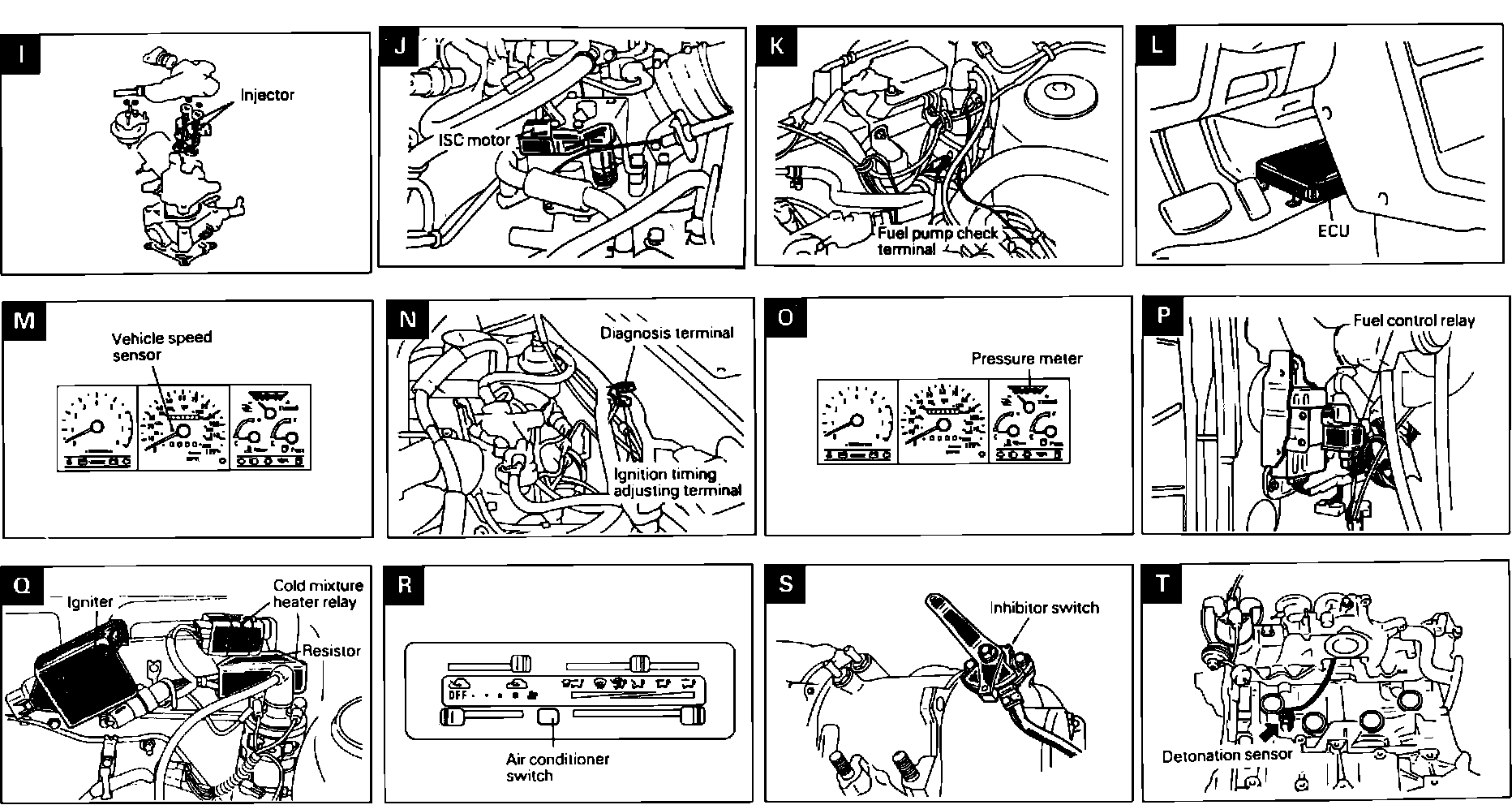

Electronic Controlled Injection System Component Location (Part 1 Of 2).:

Near LH side Of Firewall

Applicable to: 1987-88 Colt
