Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

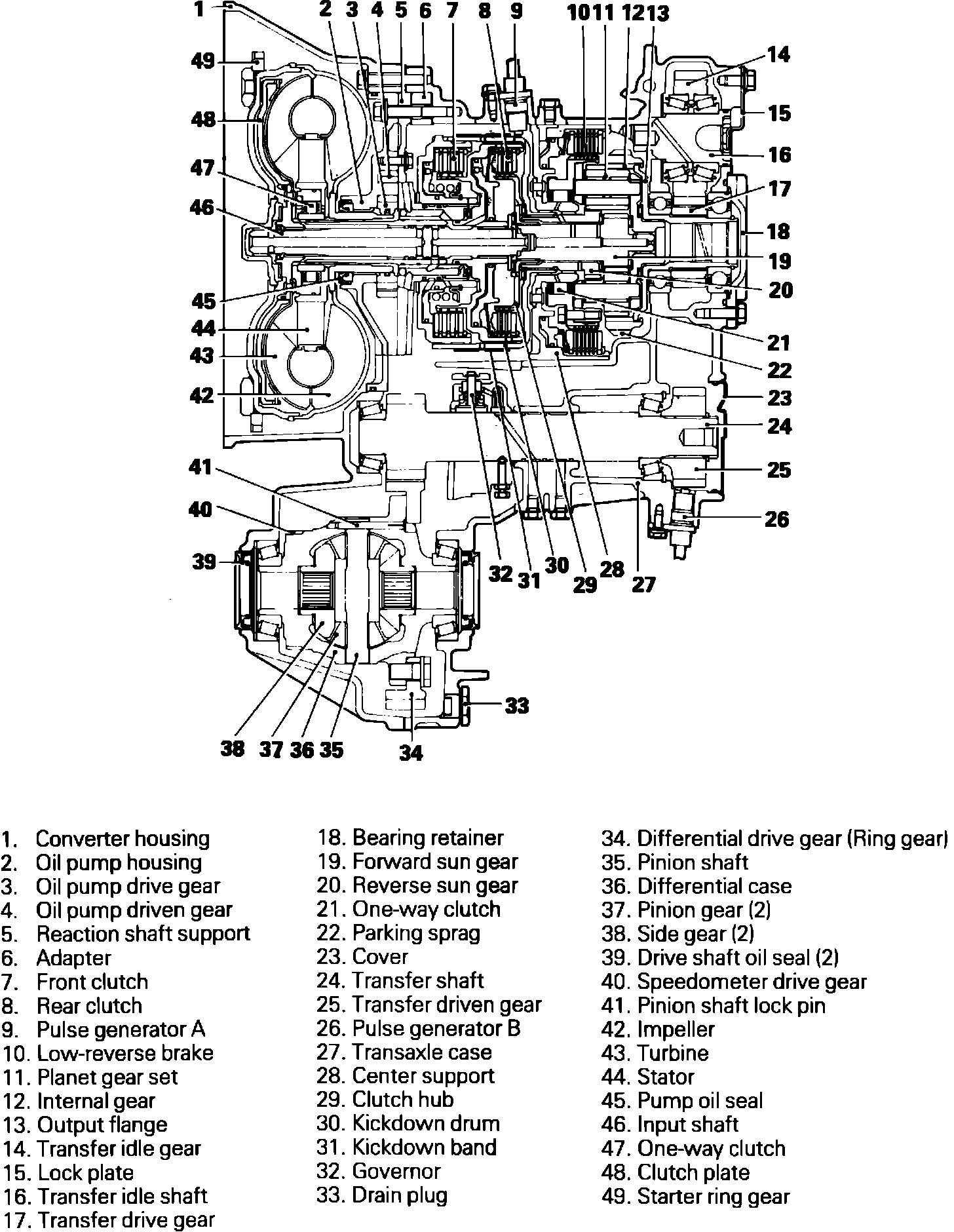

Fig. 29 Exploded view of KM 171 & 172 automatic transaxle:
