EGR System Components

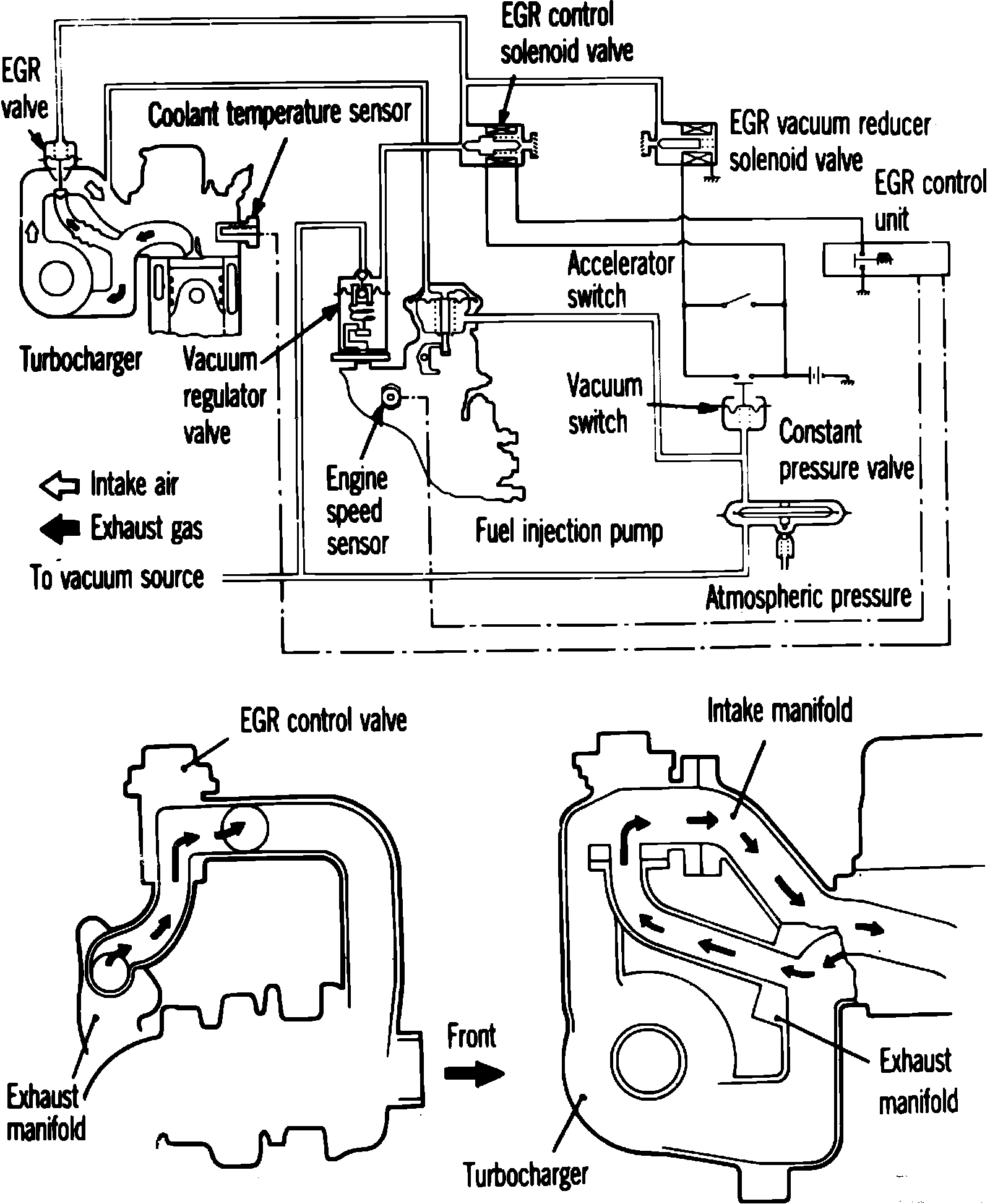

Exhaust gas recirculation system. 1984-86 2300cc diesel engine, Pickup, Calif.:
