Crankcase Emission Control System
Crankcase Emission Control System

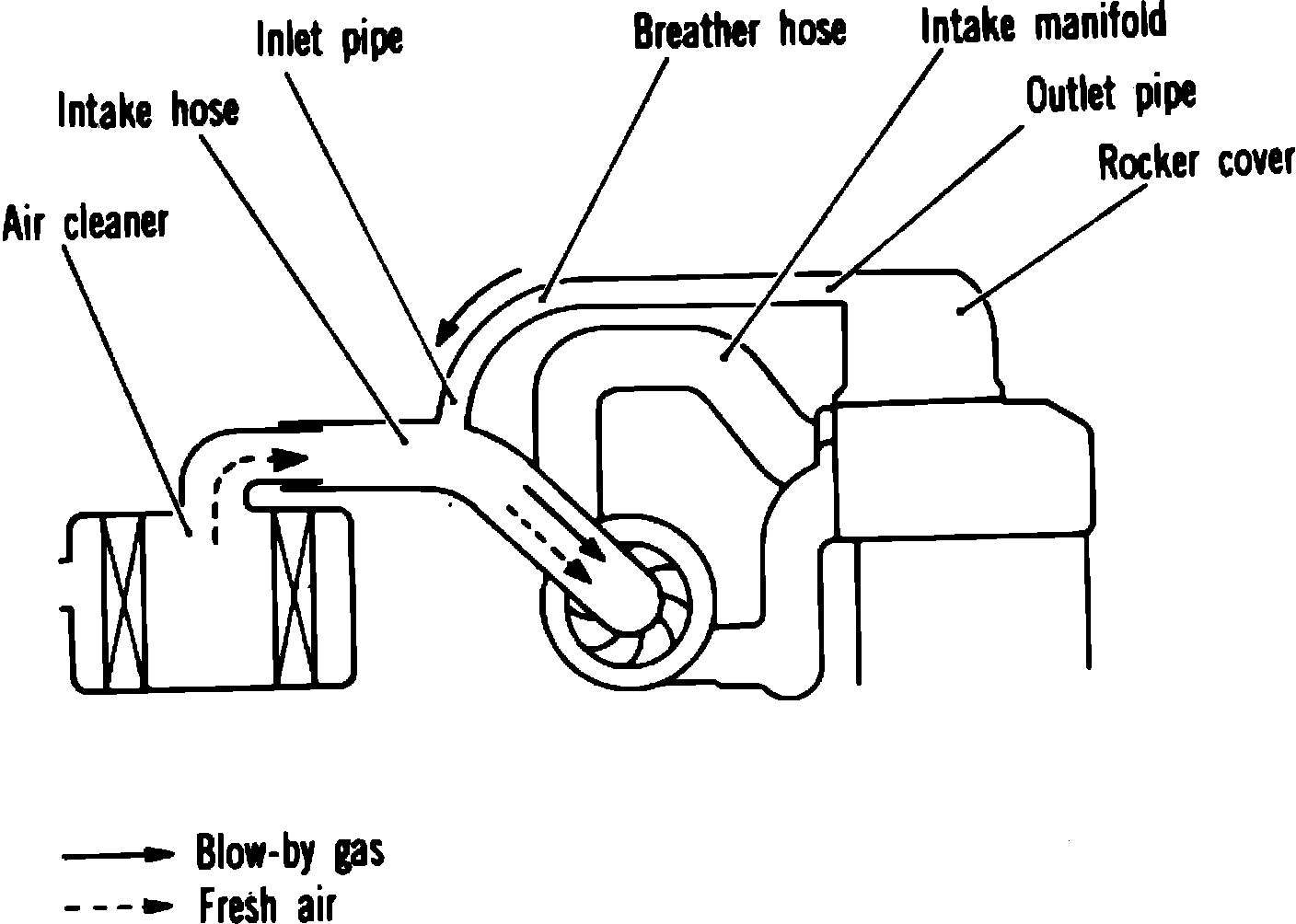

Crankcase emission control system. 1984-86 2300cc diesel engine, Pickup:
