Distributor: Locations

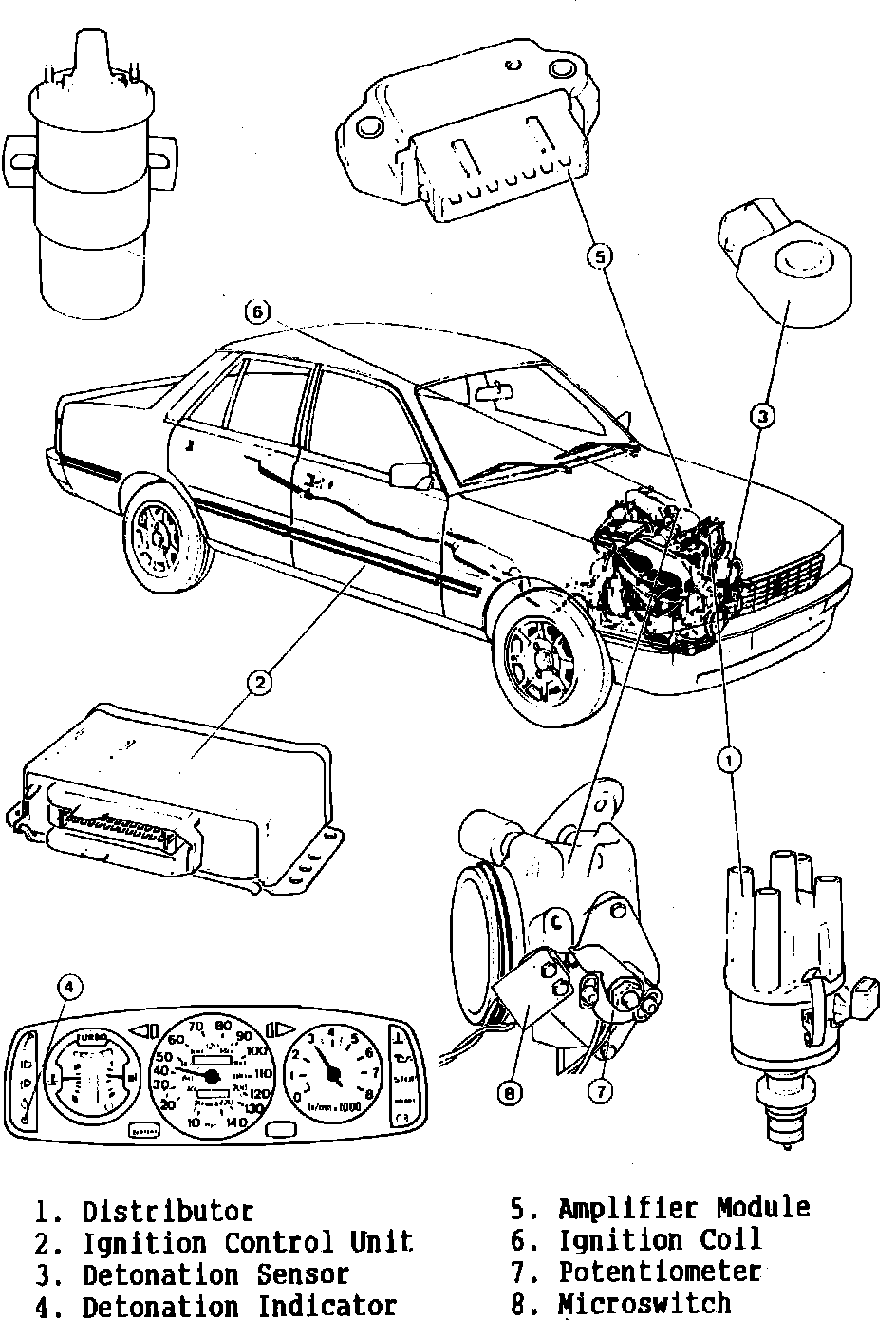

Electronic Ignition System Components (Part 1 of 2).:

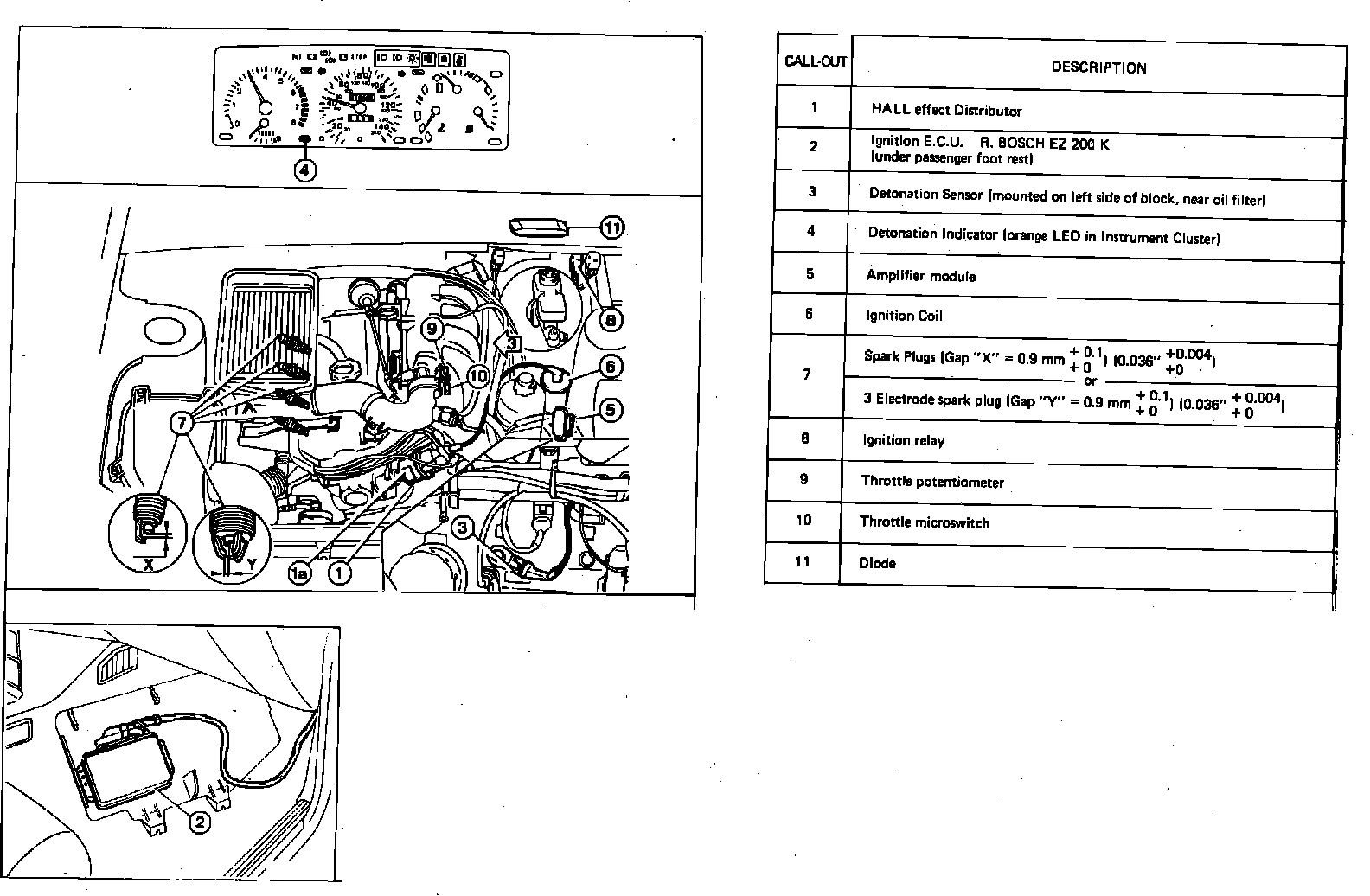

Electronic Ignition System Components (Part 1 of 2).:

Top Front Of Engine

Applicable to: 505 Models w/N9TE & N9TEA Engines
