Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the fasteners from the child tether anchors.
  3. Remove the child tether anchors from the vehicle.

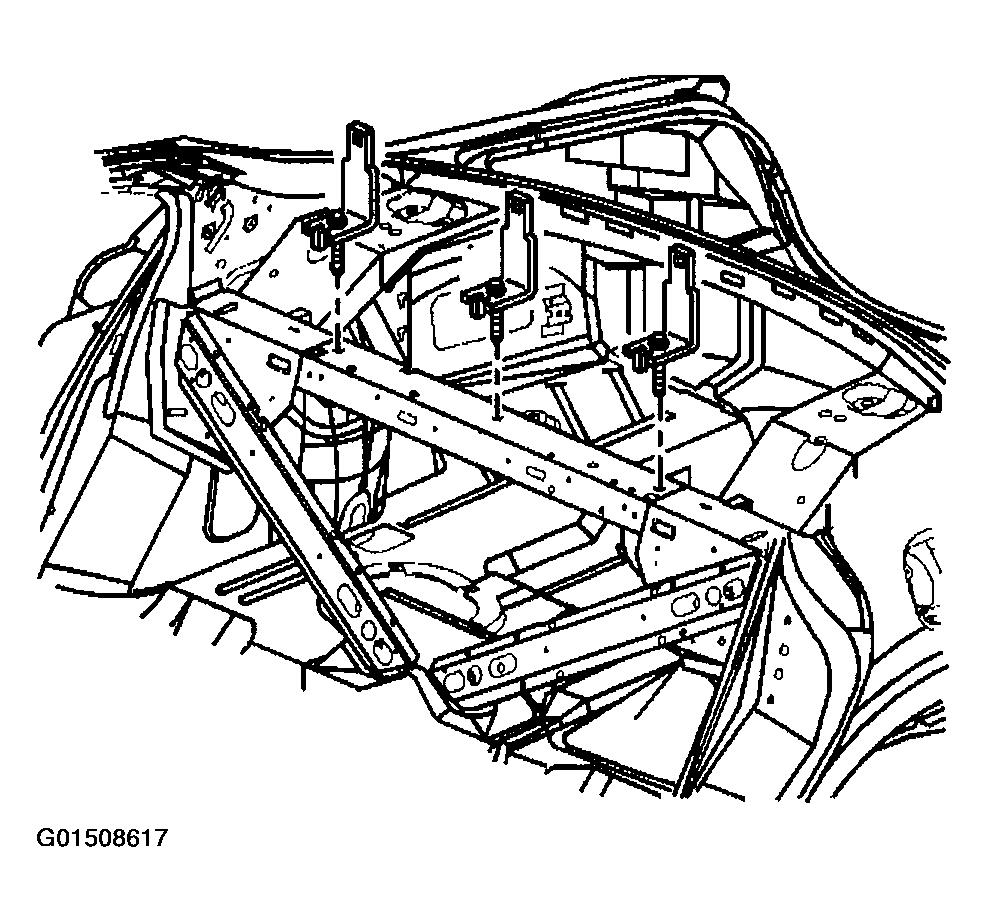

    Fig 1: Removing Child Tether Anchors
    G01508617Courtesy of GENERAL MOTORS CORP.
