Diagnostic Procedures

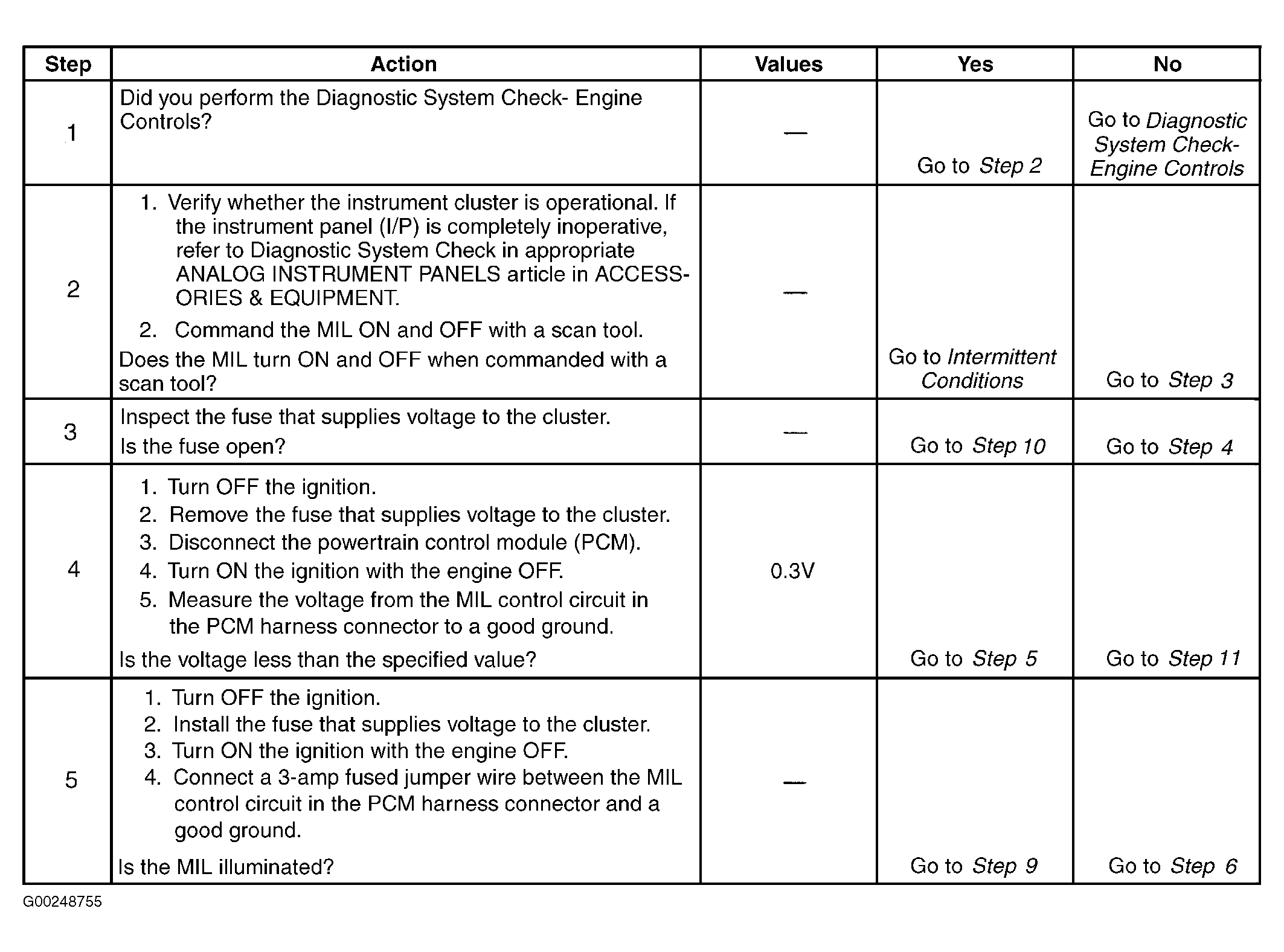

Fig 1: Malfunction Indicator Lamp (MIL) Inoperative (Steps 1-5)
G00248755Courtesy of GENERAL MOTORS CORP.

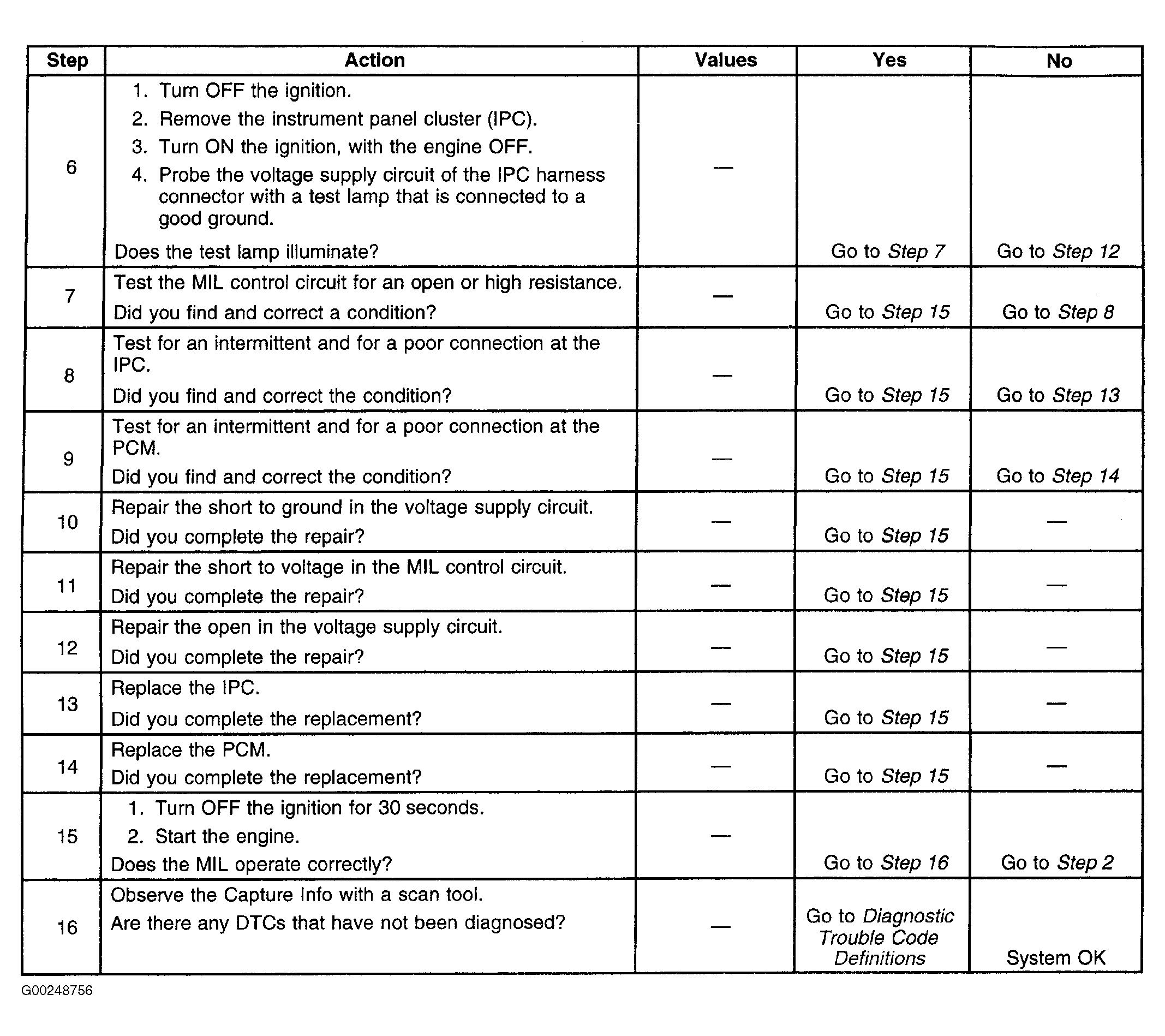

Fig 2: Malfunction Indicator Lamp (MIL) Inoperative (Steps 6-16)
G00248756Courtesy of GENERAL MOTORS CORP.
