Engine Data Specifications

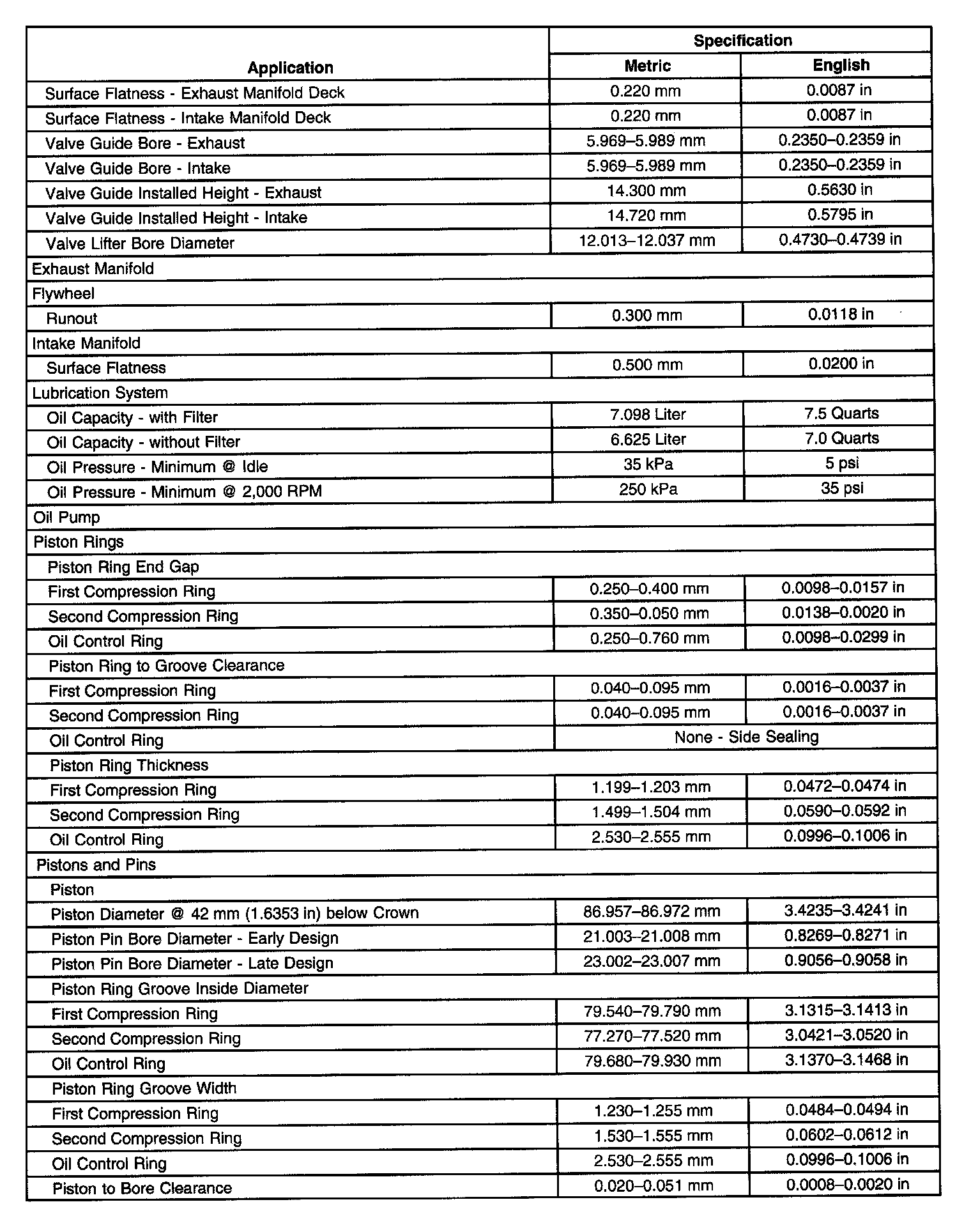

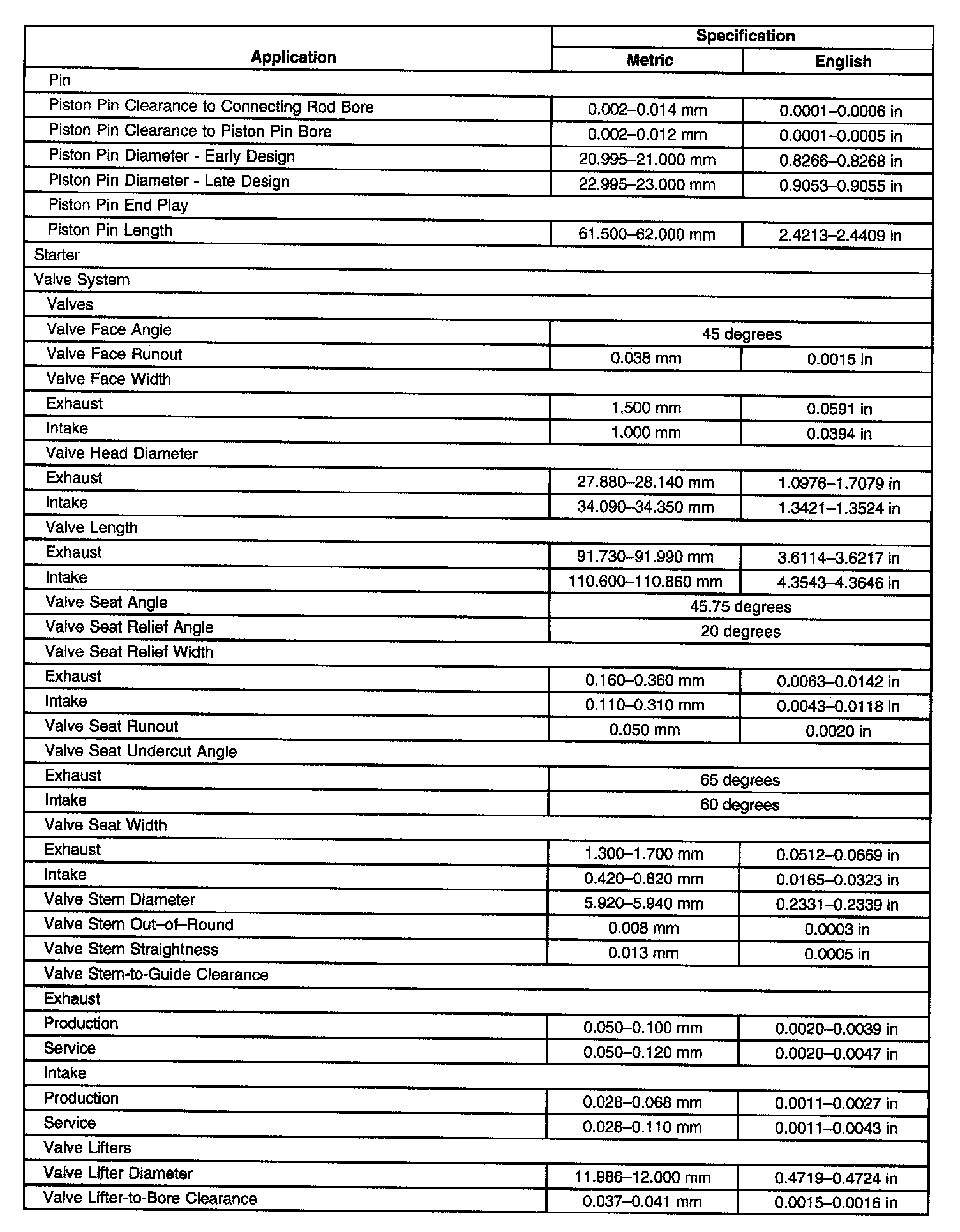

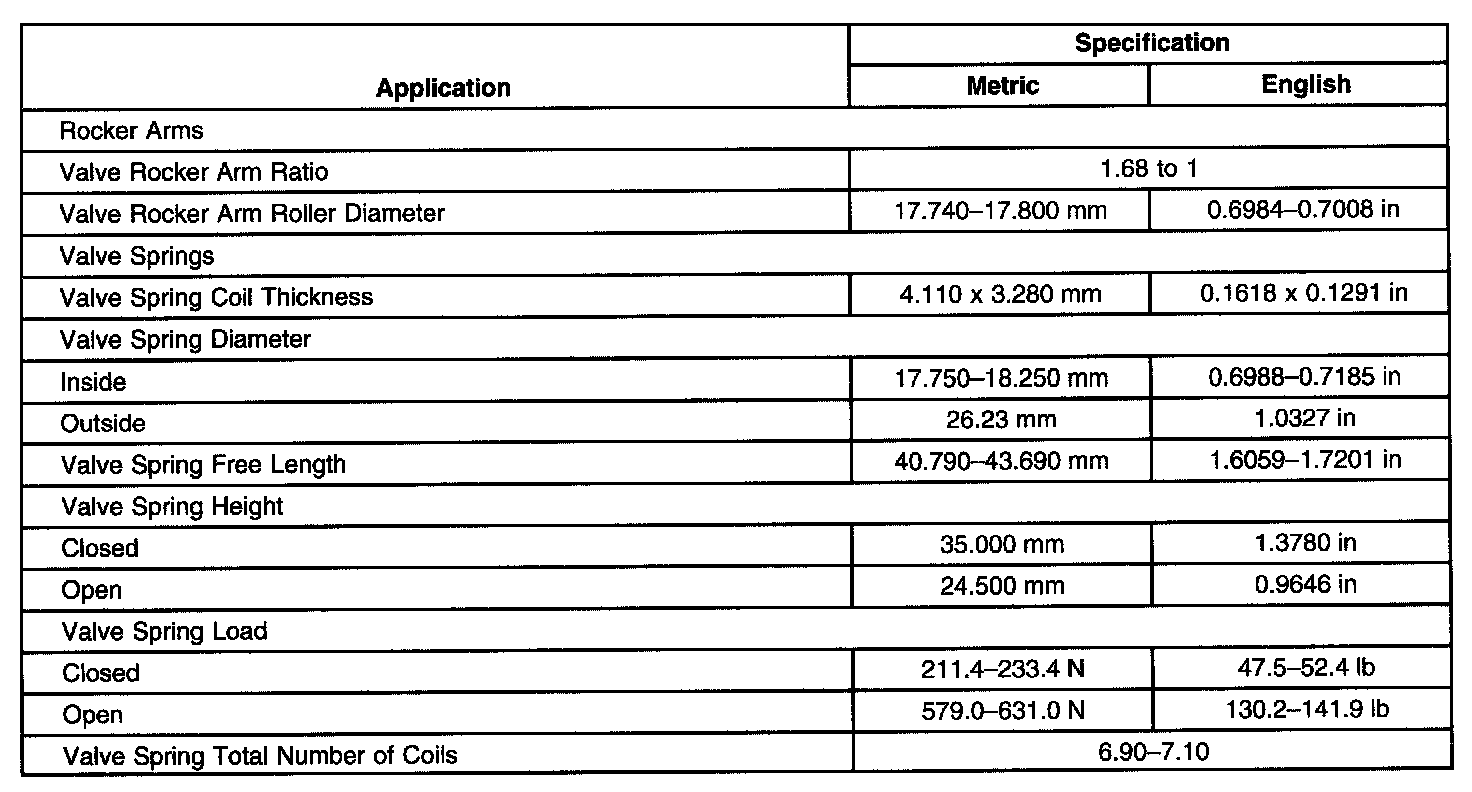

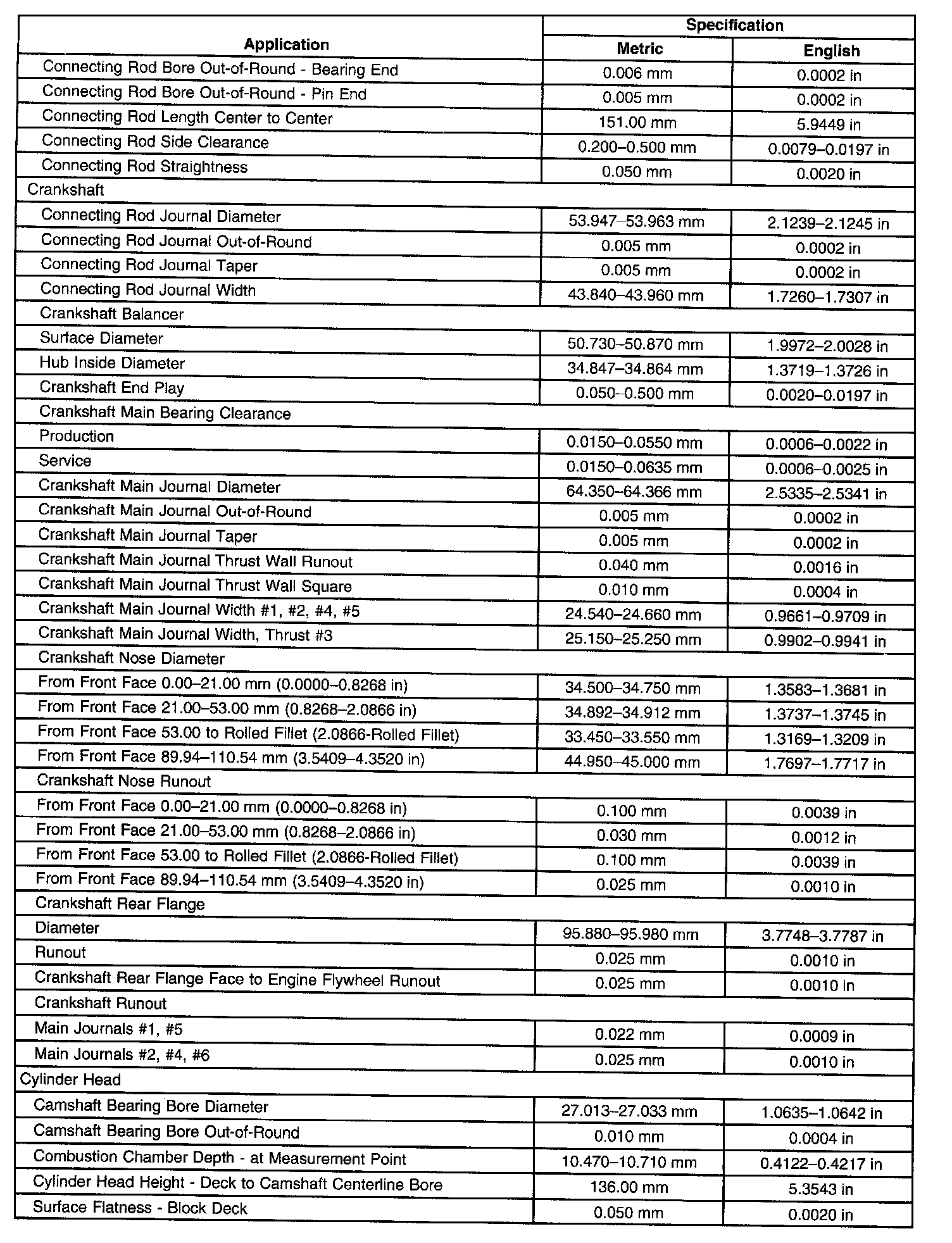

Specifications

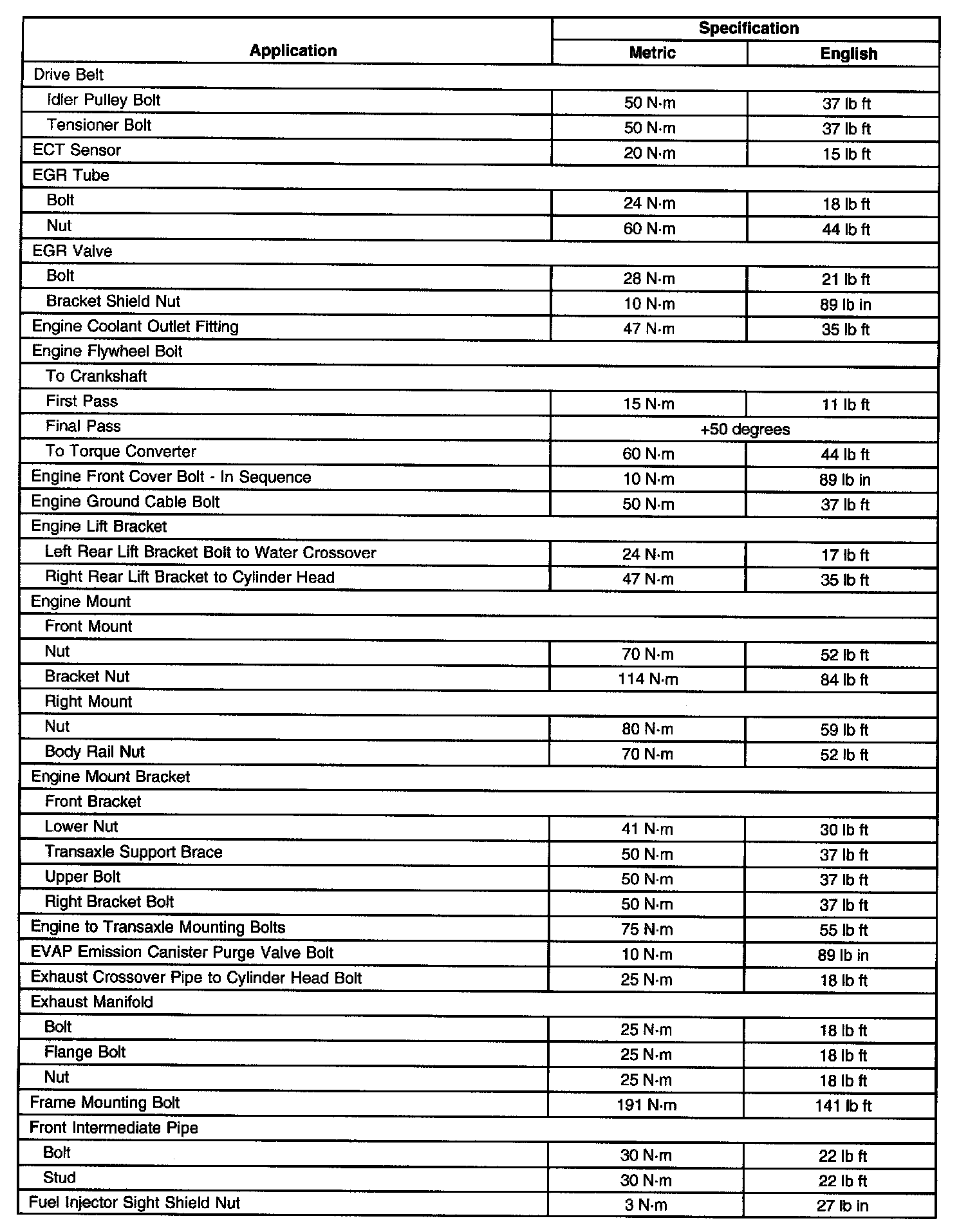

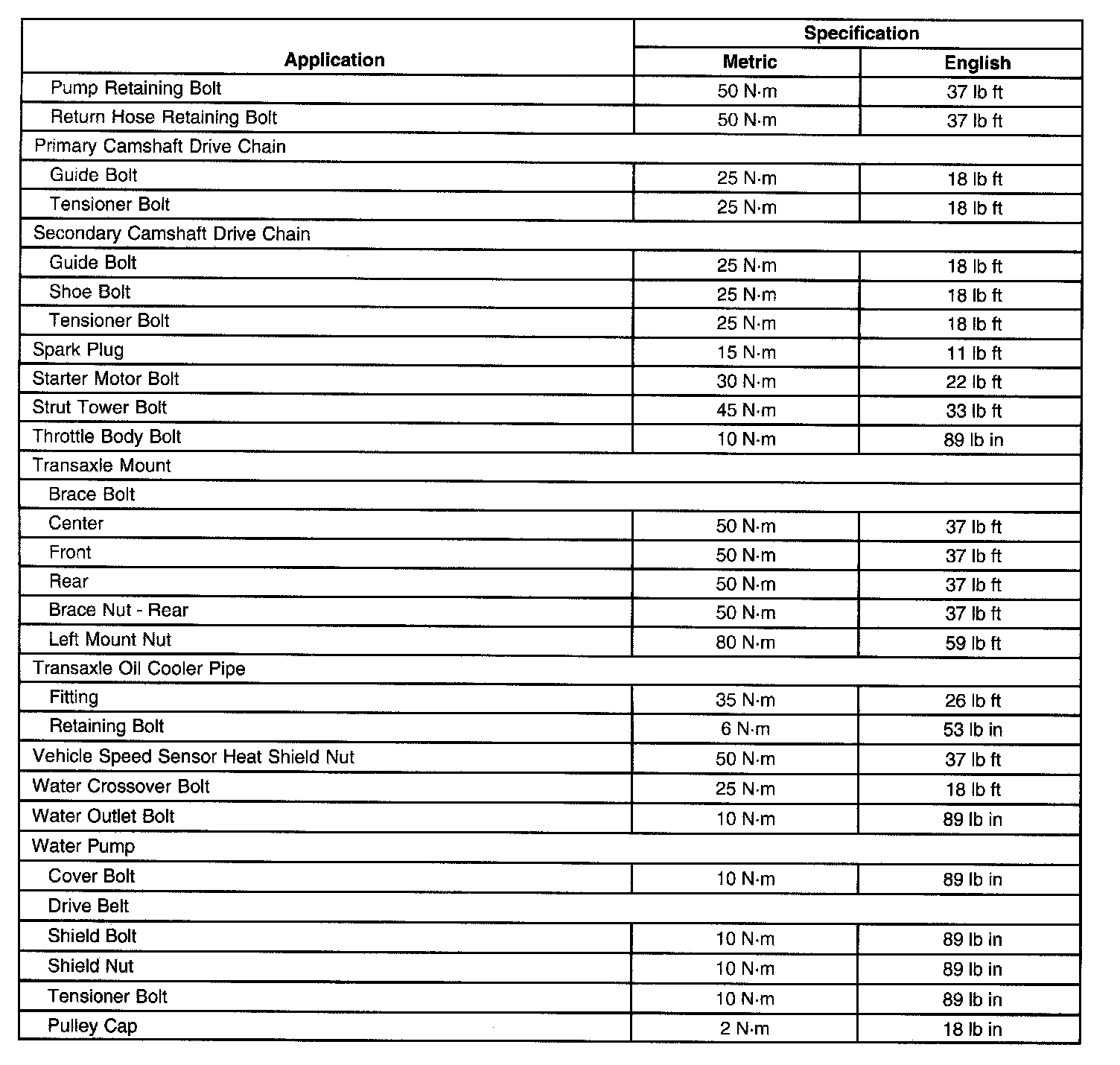

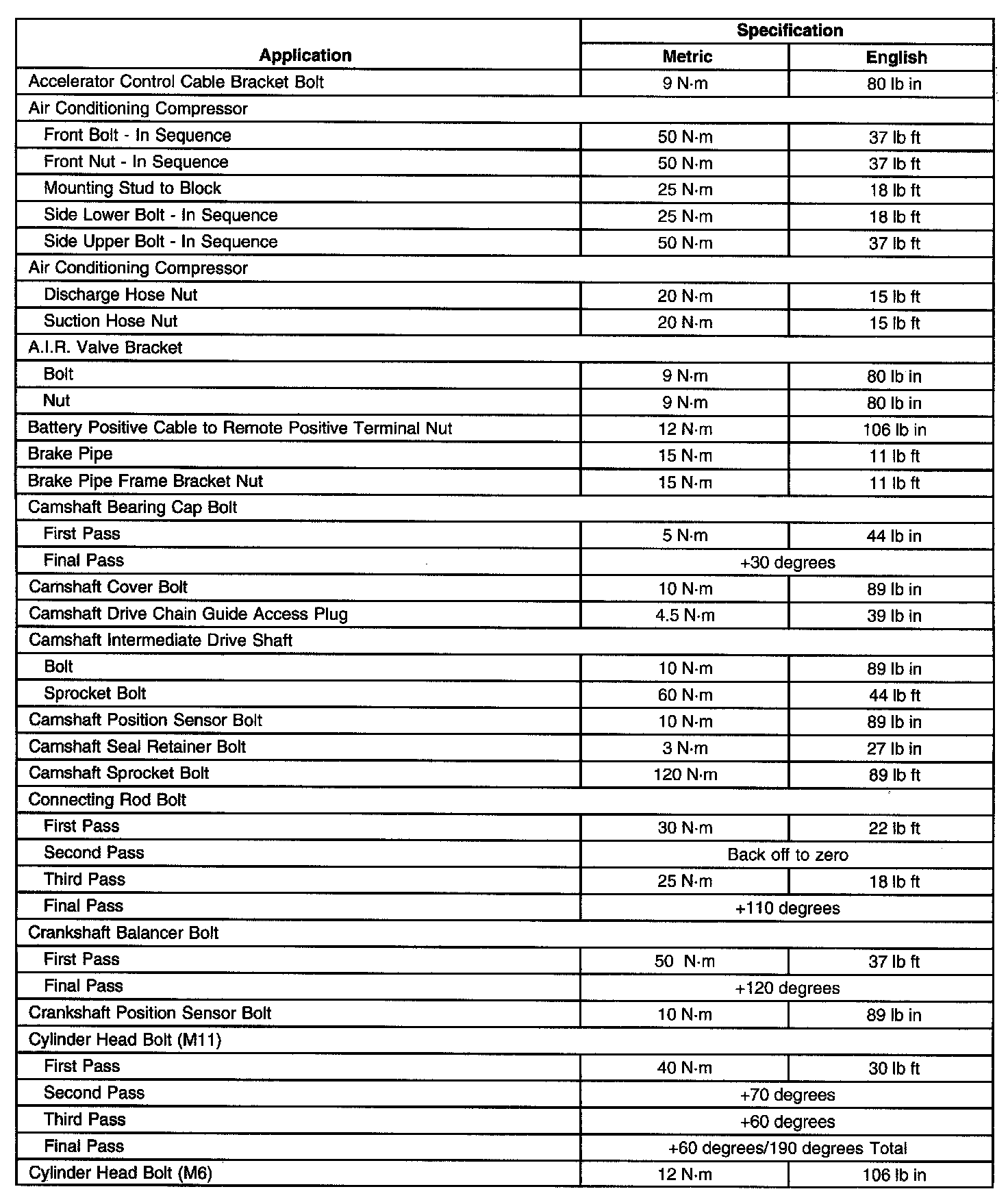

Fastener Tightening




















Engine Mechanical

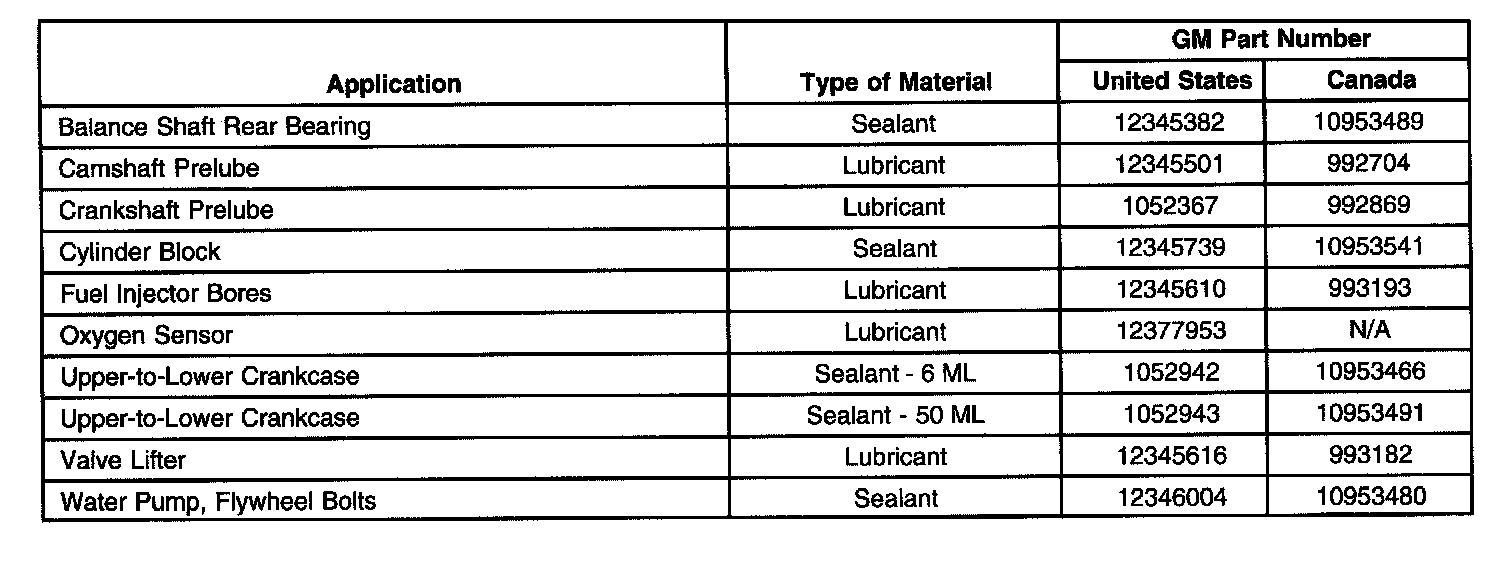

Sealers, Adhesives and Lubricants


Cylinder Head

Left Cylinder Head Tightening Sequence:





Right Cylinder Head Tightening Sequence:





Important: DO NOT reuse the M11 cylinder head bolts.

Note: Refer to Cylinder Head, Service and Repair for sequence and step details.


Intake Manifold

Intake Manifold Tightening Sequence:






Camshaft Bearing Caps

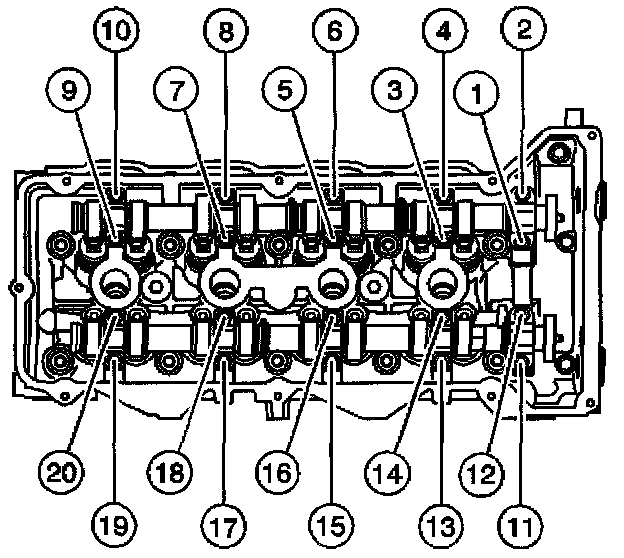

Left Camshaft Bearing Cap Tightening Sequence:

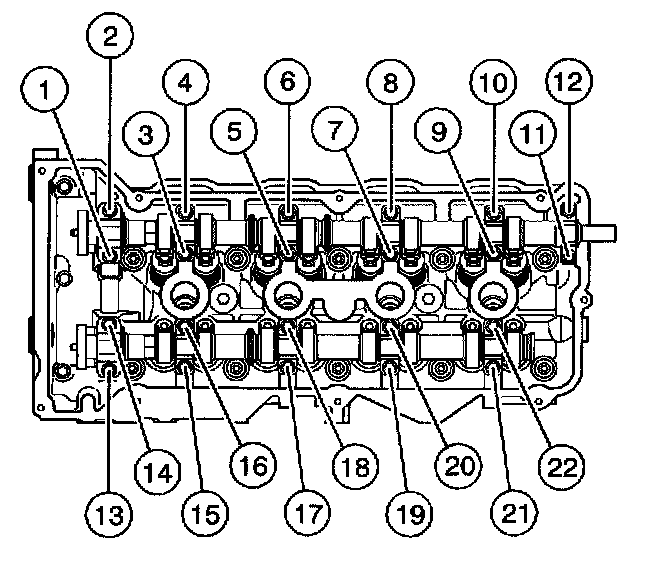

Right Camshaft Bearing Cap Tightening Sequence:
