Powertrain Control Module C2
Powertrain Control Module C2

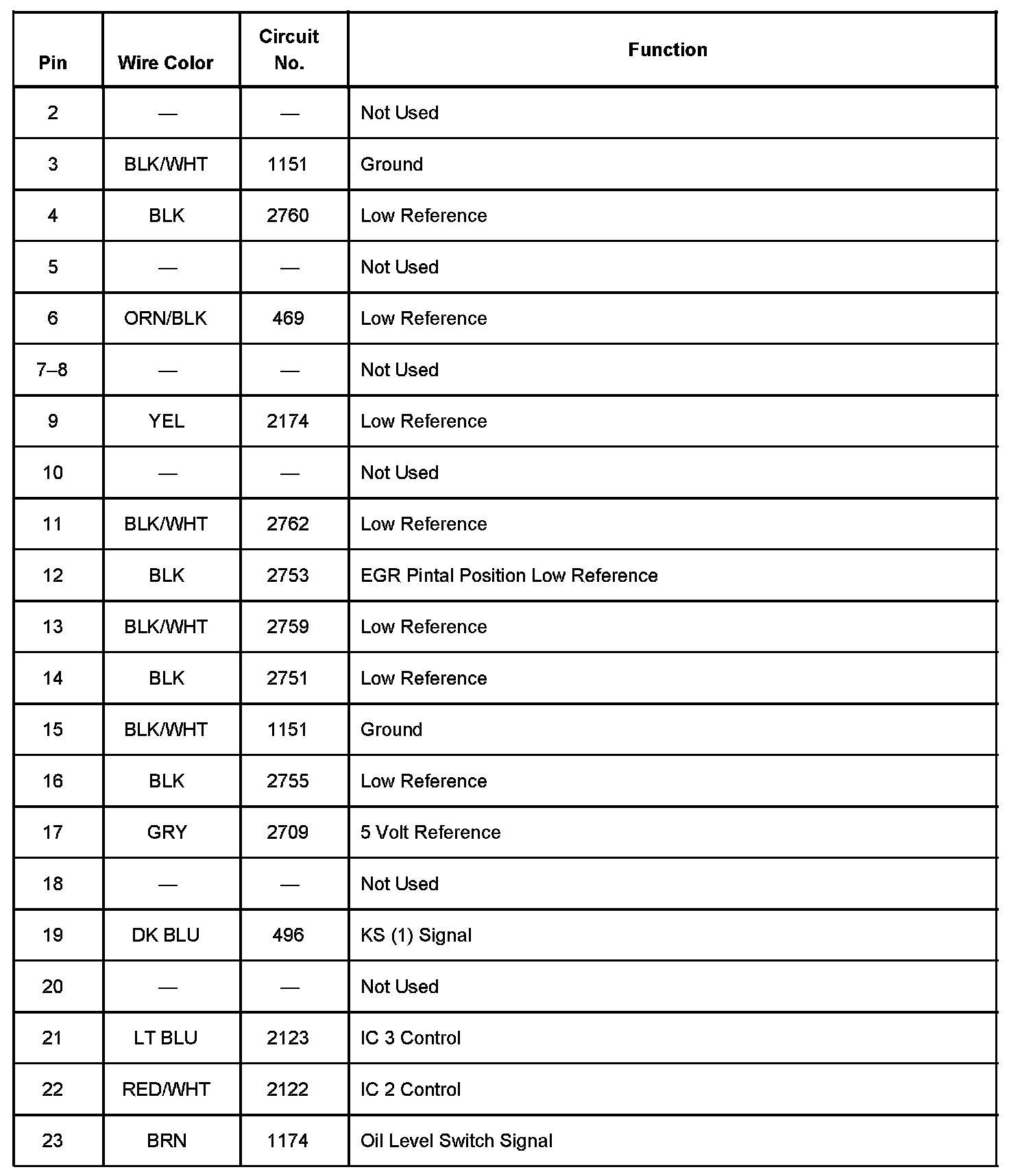

PCM Connector C2 Part 1:

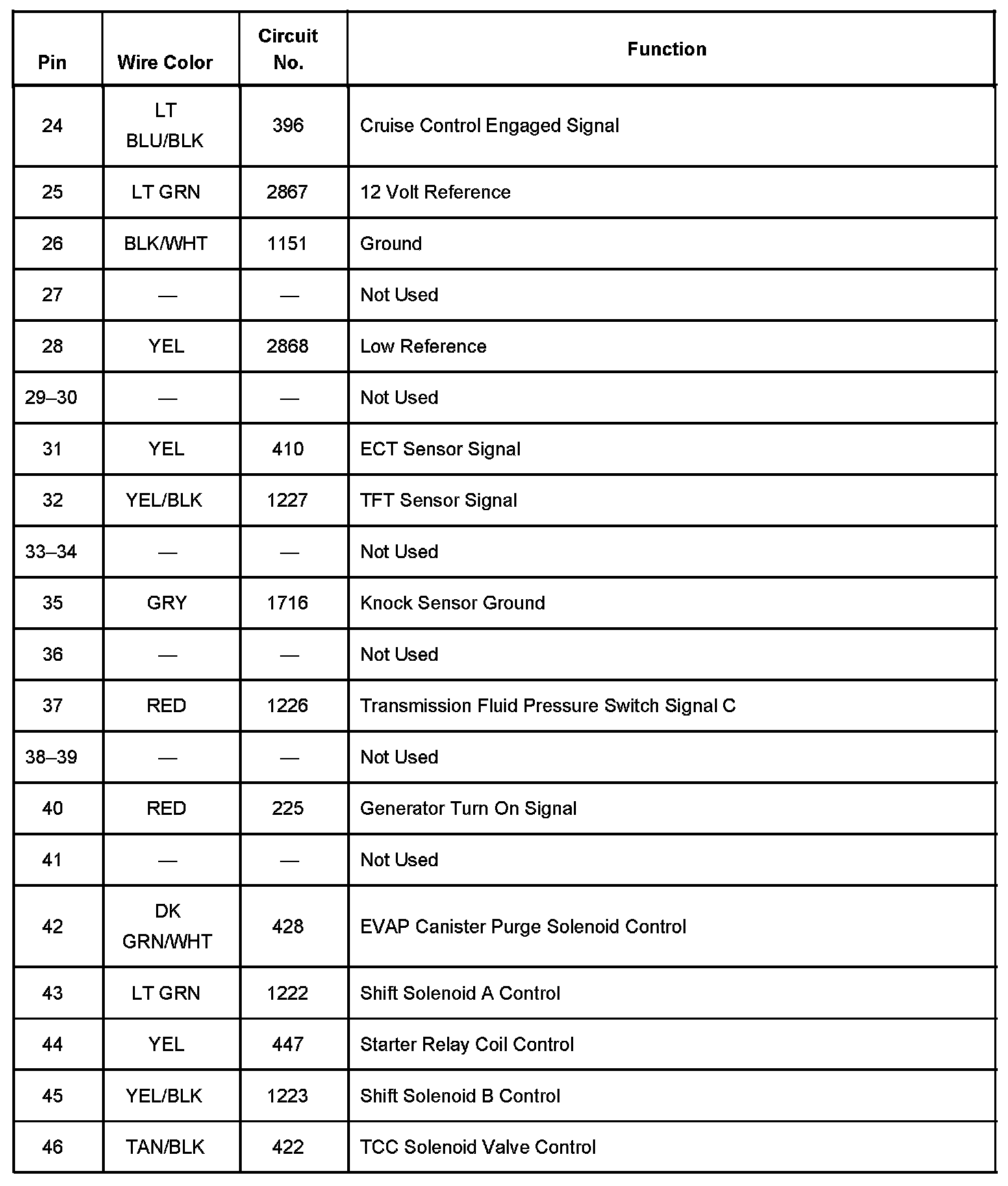

PCM Connector C2 Part 2:

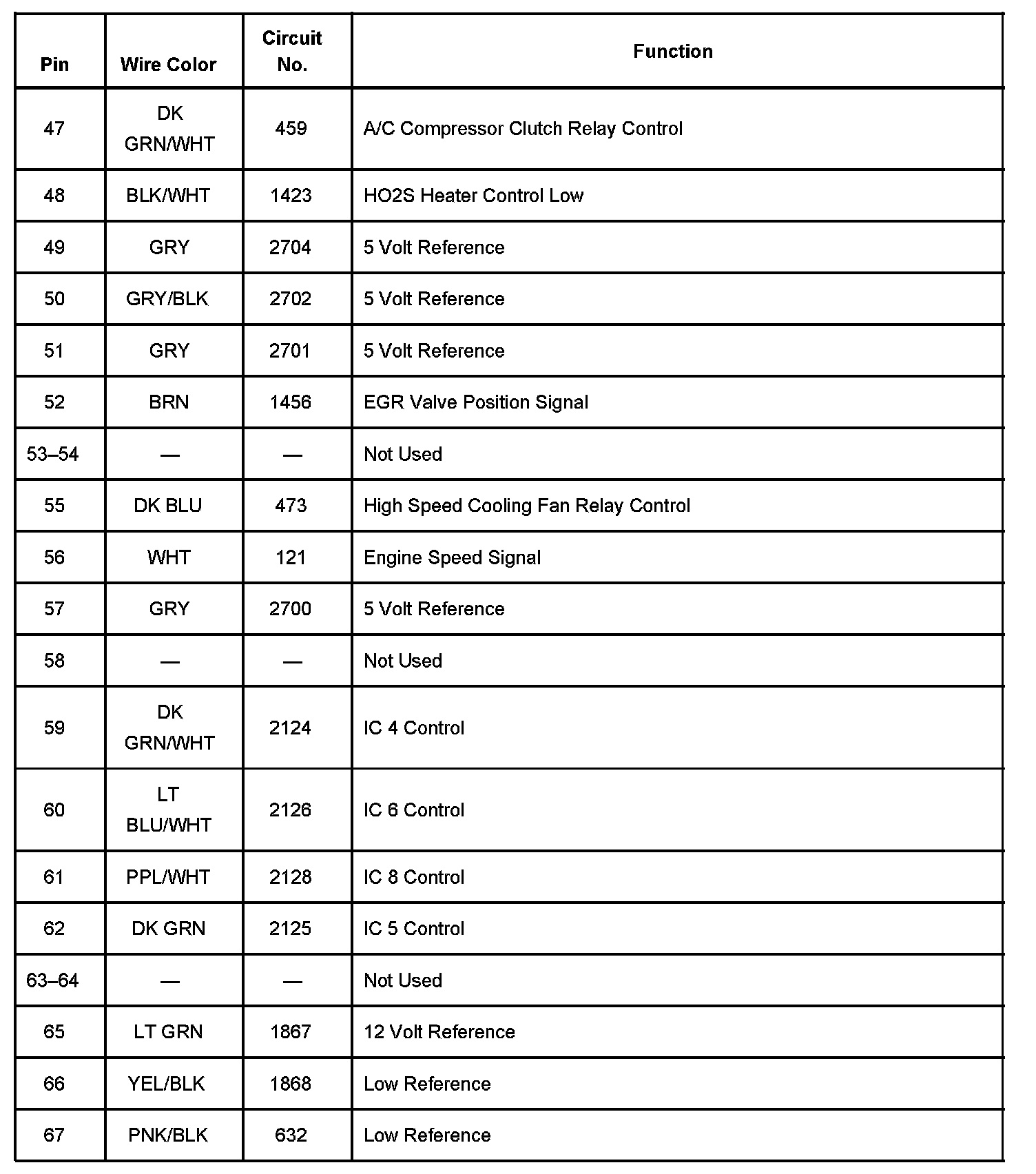

PCM Connector C2 Part 3:
PCM Connector C2 Part 4:
PCM Connector C2 Part 5:
