Scan Tool Output Controls

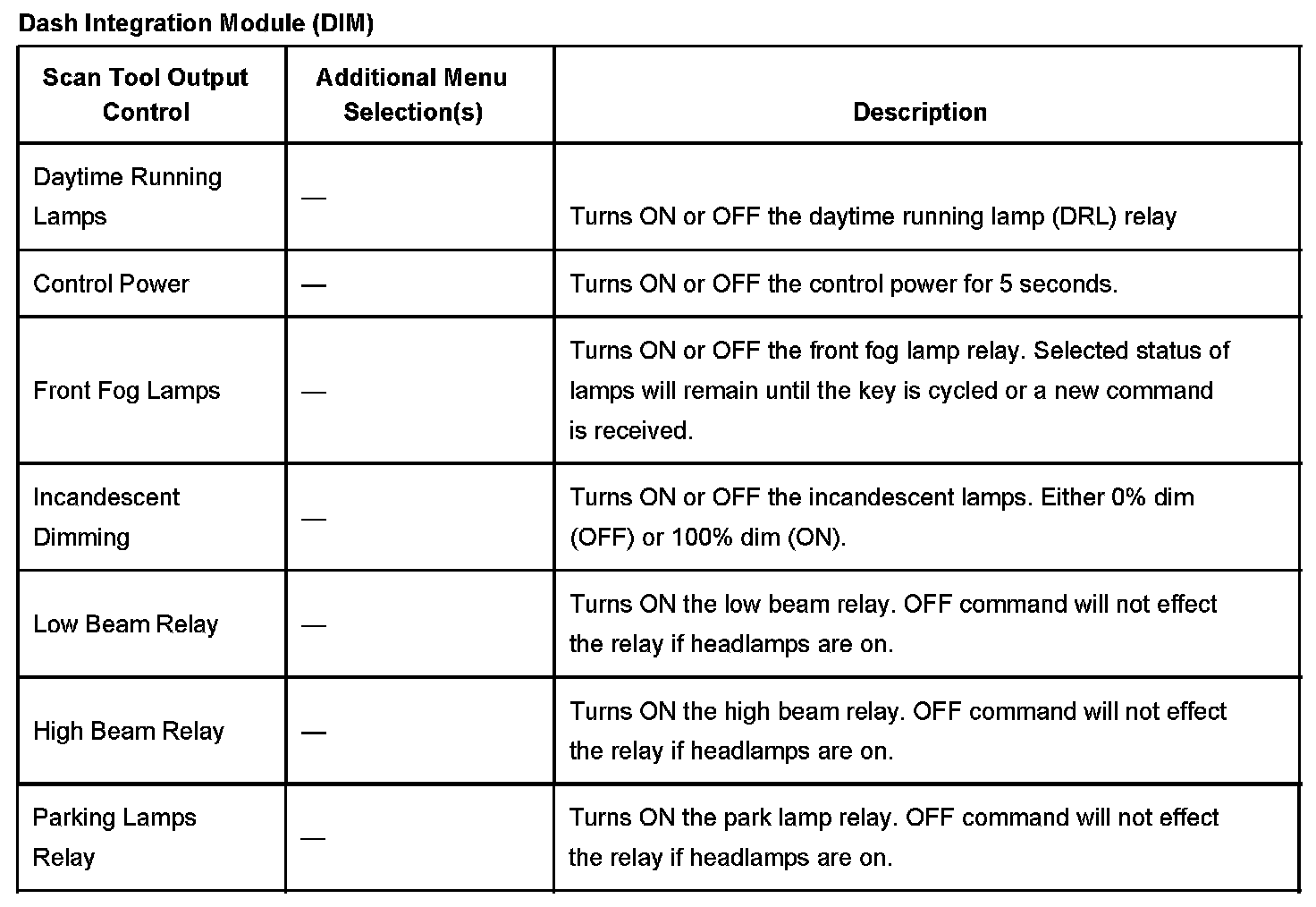

Dash Integration Module (DIM):

Instrument Panel Cluster (IPC):

Instrument Panel Module (IPM):

Rear Integration Module (RIM):
