Scan Tool Output Controls

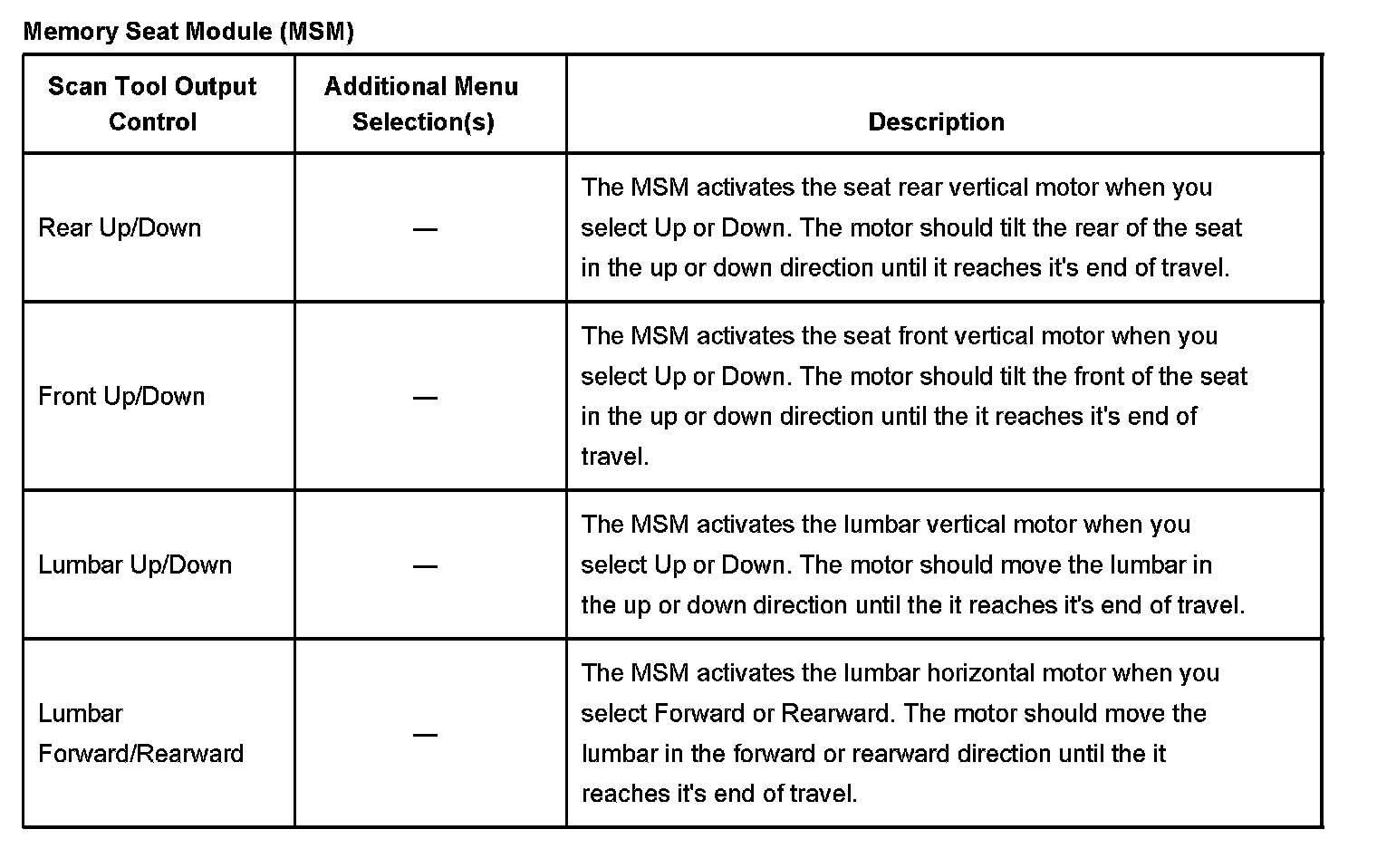

Memory Seats Module (MSM) Part 1:

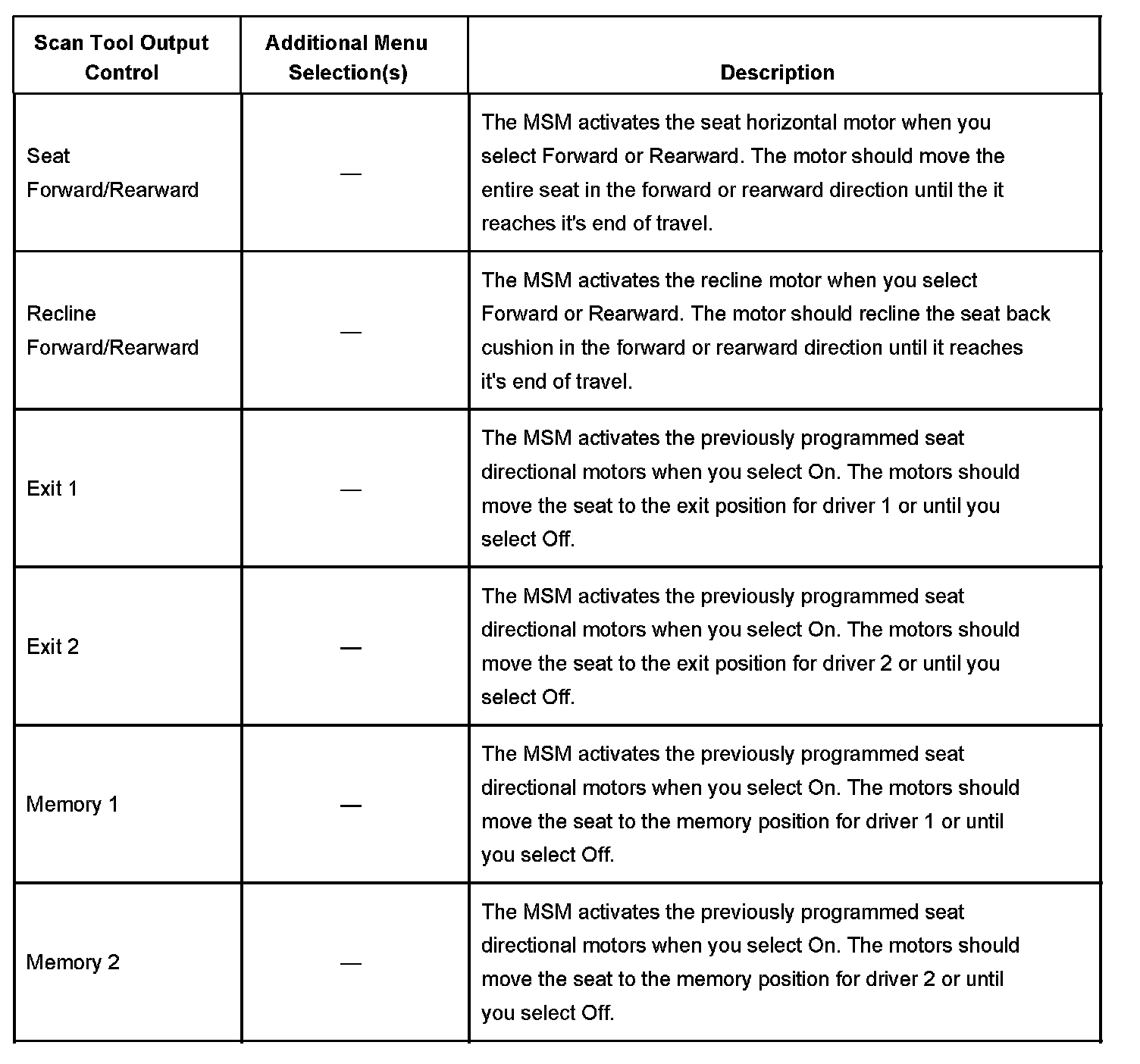

Memory Seats Module (MSM) Part 2:



Rear Integration Module (RIM):
